VALUE sink bracket, manually height adjustable with pneumatic cylinder
Product number: R1210000
EAN: 5708590176710
Can be height adjusted 12.4" from 26" to 38.4". For MATRIX SMALL and CURVE/CURVE ll sinks
Description
- Product description
- Standing or seated heights available
- Adapts to progressive needs of individuals
- Good access to working mechanism
- VALUE sink bracket, wall-mounted.
Manually height adjustable 12.4", with pneumatic lever control.
Recommendation: flexible feed/waste system R2085/R2087.
Incl. mounting bolts for sink.
Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately. - VALUE sink bracket, wall-mounted.
Manually height adjustable 12.4", with pneumatic lever control.
Recommendation: flexible feed/waste system R2085/R2087.
Incl. mounting bolts for sink.
Materials: Rilsan-coated steel.
Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.
- Intended use
- A sink bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- Height adjustable 12.4".
- ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum load: 176 lbs.
Suitable for sinks weighing no more than 49 lbs.
When the sink is loaded with 176 lbs, each wall fastener will be carrying 44 lbs.
Sink brackets need to be able to carry the weight of the sink, as well as support the weight of the person who is leaning against the sink or who is using the sink to rise from seated position.
Neither sink nor sink bracket are intended to carry the full body weight of a person, and the test methods applicable to sink brackets reflect this: ISO 17966 prescribes a static test on the front edge of the sink at 75% of maximum user weight, i.e. when the maximum load on a sink bracket is given as 176 lbs and the wash basin weighs 49 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 170 lbs leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590176710VVS
654011300ETIM
EC010187NRF
6191663NBS
N13:30,335HMI
25575GMDN
63052FDA
ILW/D142473UNSPSC
42211600
- Product group
- Sink brackets

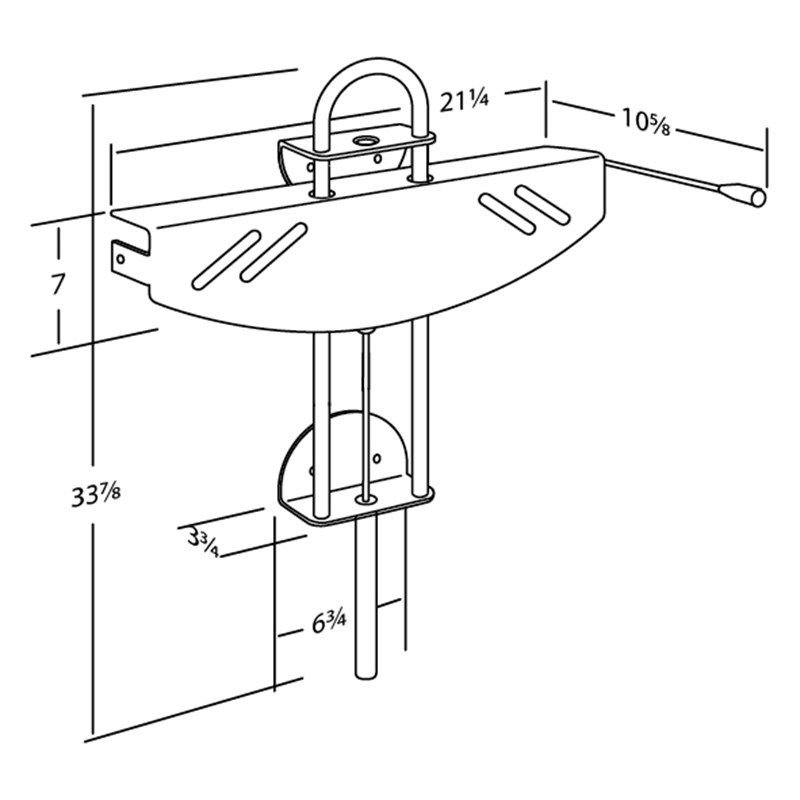

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 12.41
- Colour
- White
- Materials
- Core material: Steel
Surface material: Rilsan - Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, lbs
- 27.4
- Gross weight, lbs
- 29.9
- Weight per crate, lbs
- 29.9
- Crates per pallet
- 18
- Qty per crate
- 1
- Qty per pallet
- 18
Mounting
- Mounting
- Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.
