VALUE IV folding shower seat with supporting leg, fixed height

Product number: R1622000112

EAN: 5708590377728

Previous versions: R1602

The seat is foldable White frame, anthracite gray seat

Related products

Description

Product description

    • Space efficient
    • With and without front support leg
    • 650 projection for good side transfers

  • VALUE lV folding shower seat and backrest create a simple solution for users who need to sit down while showering.


  • Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.VALUE IV shower seat. Fixed height. The seat is foldable.
    Materials: Diecast aluminium, Rilsan-coated stainless steel and vacuum-moulded polyethylene (PE).
    Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.

Intended use
The shower seat is used to sit on during showering.
Expected service life of the shower seat is 10 years, provided that maintenance is carried out as described in the instructions for use (OMM).
Features
The seat can fold up when not in use or to create more space.
Leg for extra support.
Ergonomy
Ergonomic seat with a comfortable surface.
Product capacity
Maximum user mass: 298 lbs.
When the seat is loaded with 298 lbs, each wall fastener is loaded with 276 lbs.

The seat has been tested statically with safety factor 1.5, which is a requirement according to the applied assistive products standards.

Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590377728

  • VVS

    777525412

  • ETIM

    EC010872

  • NRF

    6314098

  • RSK

    8162782

  • HMI

    124486

  • GMDN

    34936

  • UNSPSC

    42211610
Previous version
R1602
Product group
Shower seats

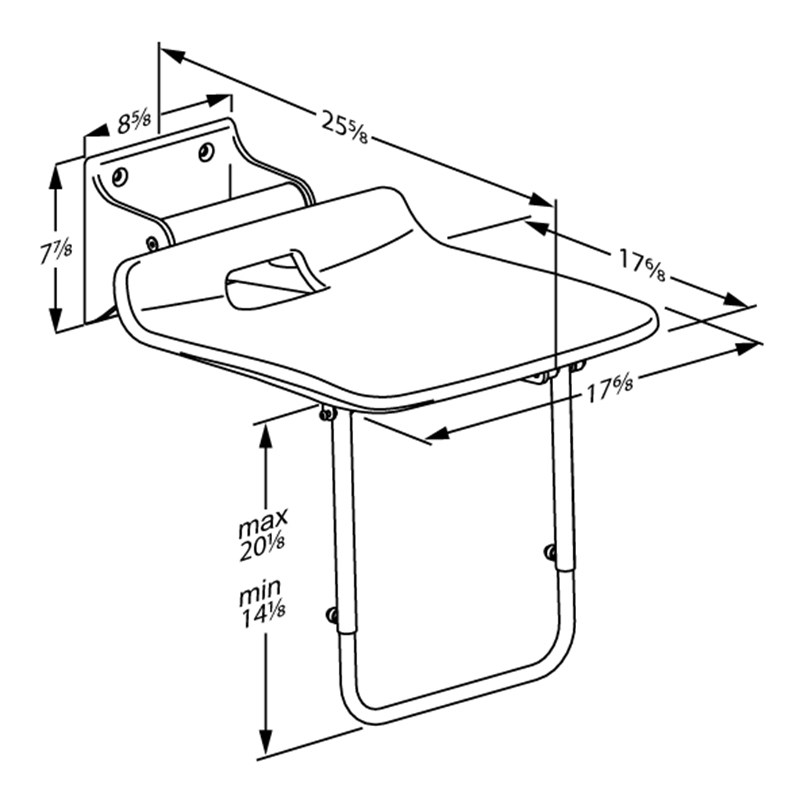

Dimensioned drawing, inch
Dimensioned drawing, inch
Adjustability
Fixed mounting
Maximum user weight (MUM), lbs
298
CE MDR
Declaration of conformity
This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices.
Colour
Anthracite gray
Materials
The wall profile is made of diecast aluminium, and the frame and the leg is made of Rilsan-coated stainless steel. Rilsan provides good protection against corrosion and is comfortable to touch and easy to clean.The seat is made of vacuum-moulded polyethylene (PE).
Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
Klorilli (Kiilto Clean)

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
Sales unit
pcs
Net weight, lbs
21.8
Gross weight, lbs
24.9
Weight per crate, lbs
24.9
Crates per pallet
12
Qty per crate
1
Qty per pallet
12

Mounting

Mounting
Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.

Downloads

BIM object (Revit)Export certificateMounting instructionsUser guide (OMM)EU declaration of conformityTechnical datasheet
