VALUE II fold down grab bar, fixed height

Product number: R1109000

EAN: 5708590367576

Length: 33.5". Grab bar is foldable

Related products

Description

Product description

    • Adjustable hinge to make easier to lift
    • Flat surface to push against

  • VALUE II fold down grab bar, fixed, foldable, length 33.5".
    The ergonomic design gives a secure and comfortable grip as well as a good sense of where the support arm ends.
    Incl. fixing bolts for brick wall. Plugs depend on wall type and must be ordered separately.

  • VALUE II fold down grab bar, fixed, foldable, length 33.5".
    The ergonomic design gives a secure and comfortable grip as well as a good sense of where the support arm ends.
    Materials: Rilsan-coated steel, pressure-cast aluminium, plastic.
    Incl. fixing bolts for brick wall. Plugs depend on wall type and must be ordered separately.

Intended use
The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Features
The grab bar can fold up when not in use or to make more space.
Ergonomy
Provides firm support when you are sitting, standing, or transferring to and from a toilet.

Good, broad support surface for the hand and arm.
The ergonomic form gives a firm and comfortable grip.
Product capacity
Maximum load: 265 lbs.
When the fold down grab bar is loaded with 265 lbs, each mounting bolt is loaded with 534 lbs.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590367576

  • VVS

    615891100

  • ETIM

    EC010078

  • NRF

    6191057

  • RSK

    8487434

  • HMI

    123560

  • GMDN

    35585

  • UNSPSC

    42211612
Product group
Fold down grab bars and arm supports

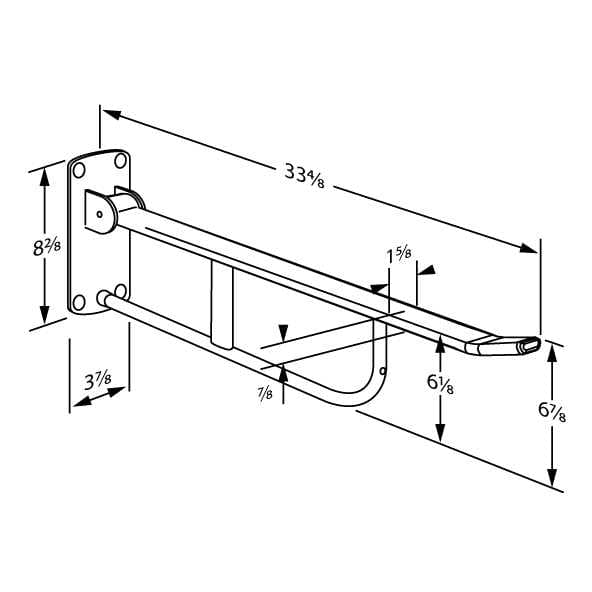

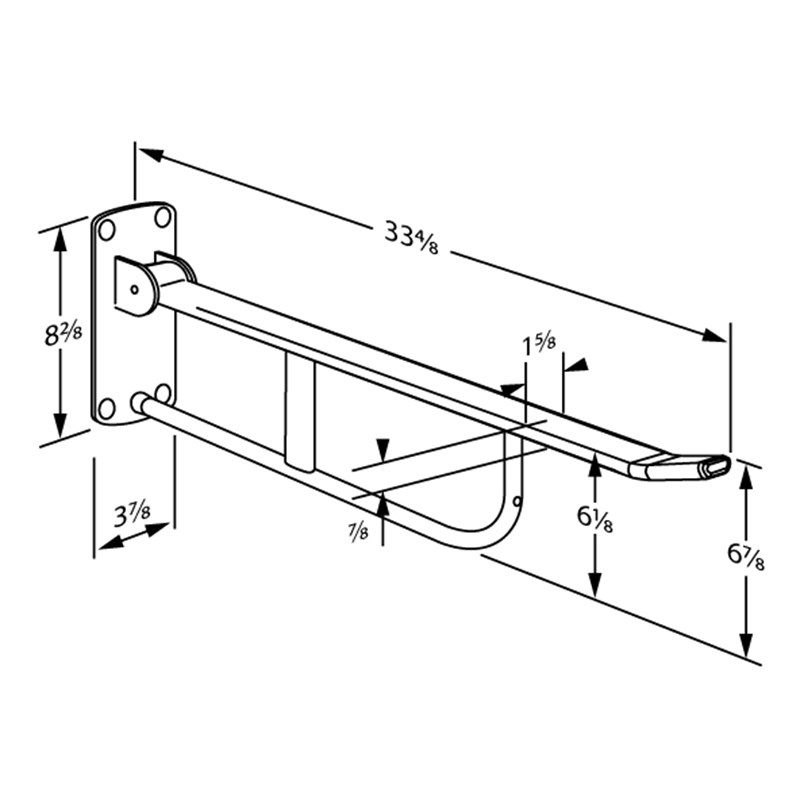

Dimensioned drawing, inch
Dimensioned drawing, inch
Adjustability
Fixed mounting
Maximum user weight (MUM), lbs
265
Safe working load (SWL), lbs
265
CE MDR
Declaration of conformity
This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices.
Colour
White
Materials
Basic material: Steel

Surface material: Rilsan.
Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
Klorilli (Kiilto Clean)

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit
pcs
Net weight, lbs
5.8
Gross weight, lbs
6.9
Weight per crate, lbs
6.9
Crates per pallet
45
Qty per crate
1
Qty per pallet
45

Mounting

Mounting
Incl. mounting bolts for brick wall. Plugs depend on wall type and must be ordered separately.

Downloads

BIM object (Revit)Export certificateMounting instructionsUser guide (OMM)EU declaration of conformityTechnical datasheet

Spare parts
