TMA 1 arm support for mounting on toilet

Product number: R1171000

EAN: 5708590211718

Length: 19.2" from back of toilet.
Arm supports are foldable.
Incl. BL1 hinge

Related products

Description

Product description

    • Ergonomic grip for weak hands
    • Arms fold up individually

  • TMA arm supports comes in various widths, and models with or without toilet seat.

  • TMA 1 arm supports for mounting on toilet, incl. BL1999 hinge. Dark gray handles.
    BL1 hinge, is only recommended with toilet seats R26, R27, R28, R29, R37 or R38.

Intended use
The arm support is used as support for a person when he or she sits down or gets up from a toilet.
Features
The arm supports can be folded individually.
Ergonomy
The folding arms provide firm support and the molded handles are comfortable to hold on to.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590211718

  • VVS

    615723100

  • DB

    2076624

  • ETIM

    EC010078

  • NRF

    6191651

  • NBS

    N13:436

  • HMI

    42230

  • GMDN

    31062

  • UNSPSC

    42211613
Product group
Fold down grab bars and arm supports

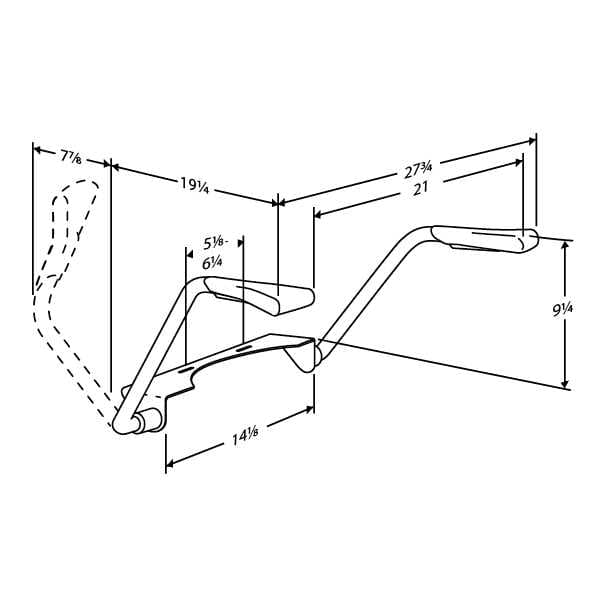

Dimensioned drawing, inch
Dimensioned drawing, inch
Adjustability
Fixed mounting
Maximum user weight (MUM), lbs
309
Safe working load (SWL), lbs
309
CE UK MDR
Declaration of conformity
This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices.
Colour
White
Materials
Powder-coated stainless steel.
Soft polyurethane.
Flammability-tested (ISO 8191-1). Test report available.
Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit
pcs
Net weight, lbs
9.8
Gross weight, lbs
11.4
Weight per crate, lbs
11.4
Crates per pallet
24
Qty per crate
1
Qty per pallet
24

Mounting

Mounting
Mounting material included.

Downloads

3D cad model (AutoCAD)Export certificateMounting instructionsUser guide (OMM)EU declaration of conformityTechnical datasheet
