    PLUS sink bracket with lever control, manually PLUS sink bracket, manually sideways adjustable

    Product number: R4580112

    EAN: 5708590309415

    Previous versions: R4540

    Can be height adjusted 9.5" from 28.7" to 38.1". For MATRIX SMALL and CURVE/CURVE ll sinks
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +1 202-271-0166

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Homepage
    • Privacy policy
    • Cookies

    Pressalit

    • Homepage
    • Privacy policy
    • Cookies

      Your search returned no results

      Let us help you — get quick advise or a quote

      Get a quote

      Related products

      Description

      Product description

        • Space efficient
        • Maximum flexibility for multiple users/changeable conditions
        • Eliminates need for adaptation work in the future

      • PLUS sink brackets are available in electrically, pneumatically and manually height adjustable versions.
        They are suitable for wall-mounting or for fitting to Pressalit PLUS wall tracks.

      • PLUS sink bracket. Manually height adjustable by 9.5" with lever control. vertical and horizontal adjustable. Recommendation: Flexible feed and waste system R2084/R2085/R2087. Anthracite cover plate for vertical wall track.
        Materials: Aluminium and ABS polymer.
        Incl. mounting bolts for sink. For mounting on horizontal wall track (not included).
      Intended use
      A sink bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
      Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
      Features
      If the height of the sink only needs to be adjusted occasionally, a manually adjustable sink bracket could be the best solution.
      Adjustment involves supporting the weight of the sink and part of the bracket. If frequent height adjustment is anticipated, use pneumatic-assisted sink bracket R4680 or electrically operated sink bracket R478x, instead.
      Ergonomy
      The sink bracket is compatible with all types of bolt-mounted sink. It's rounded, sleek design makes it easy to clean thoroughly.
      productAttributes.productIntendedUse
      WASH BASIN BRACKETS
      Product capacity
      Maximum load: 298 lbs.
      Suitable for sinks weighing no more than 49 lbs.
      When the sink is loaded with 298 lbs, each wall fastener will be carrying 66 lbs.
      Sink brackets need to be able to carry the weight of the sink, as well as support the weight of the person who is leaning against the sink or who is using the sink to rise from seated position.
      Neither sink nor sink bracket are intended to carry the full body weight of a person, and the test methods applicable to sink brackets reflect this: ISO 17966 prescribes a static test on the front edge of the sink at 75% of maximum user weight, i.e. when the maximum load on a sink bracket is given as 298 lbs and the wash basin weighs 49 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 332 lbs leaning on the front edge of the wash basin.
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590309415

      • VVS

        654001510

      • ETIM

        EC010187

      • NRF

        6132529

      • NBS

        N13:30,335

      • RSK

        7972588

      • HMI

        71758

      • GMDN

        63052

      • FDA

        ILW/D142473

      • UNSPSC

        42211600
      Previous version
      R4540
      Product group
      Sink brackets

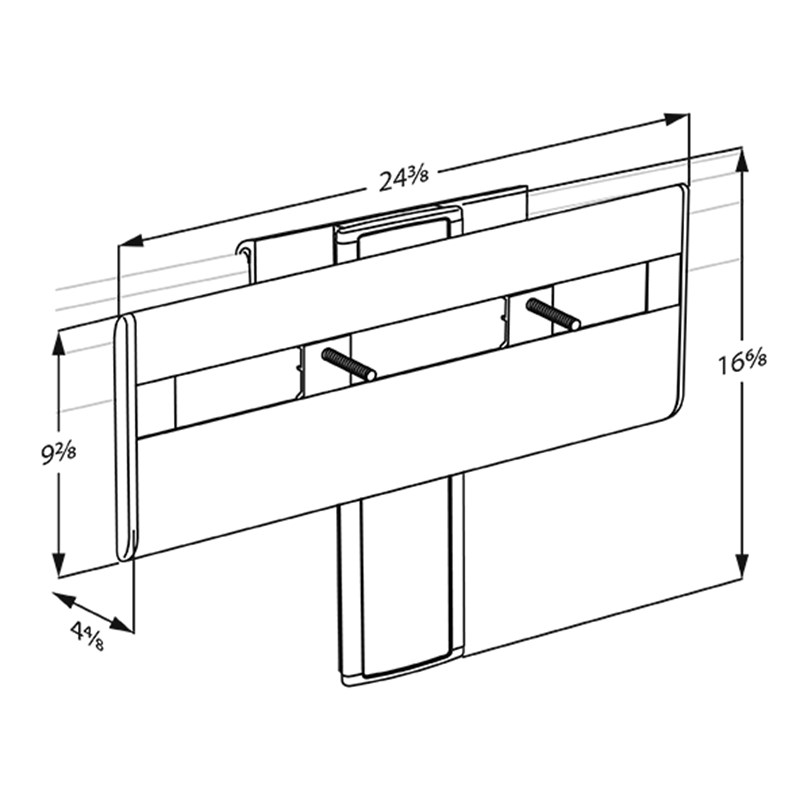

      Dimensioned drawing, inch
      Dimensioned drawing, inch
      Adjustability
      Vertical and horizontal adjustable
      Adjustment height (inch)
      9.46
      Maximum user weight (MUM), lbs
      298
      Safe working load (SWL), lbs
      333
      Colour
      Anthracite gray
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The sink bracket is primarily made of 3/8" anodized aluminium. The ends of the bracket cover are capped with ABS polymer.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

      Sales unit
      pcs
      Net weight, lbs
      19.6
      Gross weight, lbs
      21.5
      Weight per crate, lbs
      21.5
      Crates per pallet
      24
      Qty per crate
      1
      Qty per pallet
      24

      Mounting

      Mounting
      For fitting to horizontal PLUS wall track (not included).
