PLUS grab bar, 36''
Product number: RT036000
EAN: 5708590333984
ADA-compliant.
Diameter 1.3''.
Powder-coated aluminium
Diameter 1.3''.
Powder-coated aluminium
Description
- Product description
- Warm slip resistant surface
- Covered fixing rose - screws hidden
- Range of colours
- PLUS grab bars are ADA-compliant.
- PLUS grab bar, 36”, diameter 1.3", for fixed mounting. ADA-compliant.
The 1.3" outside diameter enables the grab bar to be held comfortably and firmly. The projection of 1.5" from the wall makes it easy to take hold of the grab bar.
Inkl. wall rosette, which covers the fixings.
Material: Powder-coated aluminium and plastic.
Excl. mounting kit.
- Intended use
- PLUS grab bar solutions are intended as a support for walking and standing users in the bathroom or for assisting seated users who need help getting up.
Expected service life is 10 years. - Ergonomy
- The 1.3" outside diameter enables the grab bar to be held comfortably and firmly. The projection of 1.5" from the wall makes it easy to take hold of.
- Product capacity
- Maximum load: 440 lbs.
When the grab bar is loaded with 440 lbs, each wall fastener is loaded with 123 lbs.
Grab bars are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590333984ETIM
EC011028GMDN
35586FDA
ILS/D135866UNSPSC
42211608EMDN
Y181803
- Product group
- Grab bars

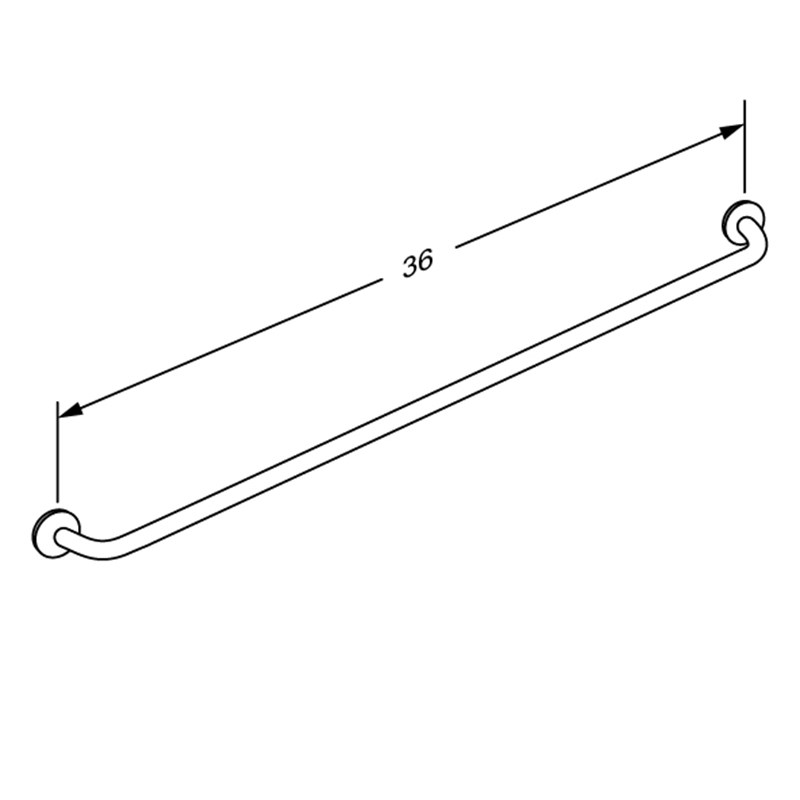

- Dimensioned drawing, inch
- Declaration of conformity
- This product is solely intended for the US, and has no EU declaration of conformity.
- Colour
- White
- Materials
- Core material: Aluminium
Surface material: Polyester lacquer
Cover cap: Cycoloy plastic - Cleaning instructions
- This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water. - Sales unit
- pcs
- Net weight, lbs
- 2.9
- Gross weight, lbs
- 4.4
- Weight per crate, lbs
- 4.4
- Crates per pallet
- 96
- Qty per crate
- 1
- Qty per pallet
- 96
- Manufacturer
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
