PLUS fold down grab bar with integrated counter-balance, 27.6'', left hand operated

Name: PLUS fold down grab bar with integrated counter-balance, 27.6'', left hand operated
Brand: Pressalit
Availability: InStock

Product number: R391370277

EAN: 5708590368863

Previous versions: R3550, RF550, R3565, RF565

Projection: 30.3''. Height and sideways adjustable. Removable and foldable

PLUS fold down grab bar with integrated counter-balance, 27.6'', left hand operated

Product number: R391370277

EAN: 5708590368863

Previous versions: R3550, RF550, R3565, RF565

Projection: 30.3''. Height and sideways adjustable. Removable and foldable

Description

Product description

- Maxium flexibilty to suit different user requirements
- Movable and detachable - quick and easy without tools
- Products can be moved to other areas in bathroom(s)
All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
Suitable for use with toilet pans projecting 21.3/21.7''.
Replaces discontinued models R3550, RF550, R3565 og RF565.
PLUS fold down grab bar, counter-balanced. Projection 30.3", ergonomically shaped to provide a clear sense of where the fold down grab bar ends. Left hand operated. Height adjustable by 9.5" and adjustable horizontally. Detachable and foldable. Anthracite cover plate for vertical wall track.
Materials: The arms are construced of 10-micrometer anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
For mounting on horizontal wall track (not included).
Awards
FOLD DOWN GRAB BARS – Red Dot Product Design Award winner
Ergonomic design and integrated counter-balance function makes the grab bars a user-friendly and safe choice.

The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.

Intended use

The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.

Features

Folds against the wall.
The underside is shaped for the mounting of various accessories.

Ergonomy

The oval shape gives an easy and comfortable surface to lean and push against.
The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.
Soft and slip-resistant material that has a warm feel.

ProductAttributes.ProductIntendedUse

SUPPORT ARMS

Product capacity

Maximum load: 330 lbs.
When the fold down grab bar is loaded with 330 lbs, each wall fastener in the horizontal wall track is loaded with 97 lbs.

PLUS fold down grab bars have been tested statically with 1540 lbs (close to the wall), 935 lbs (in the middle) and 495 lbs (the outermost point).

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

EAN
5708590368863
ETIM
EC010078
NRF
6191159
HMI
125893
GMDN
35585
FDA
ILS/D135866
UNSPSC
42211612

Previous version

R3550, RF550, R3565, RF565

Product group

Fold down grab bars and arm supports

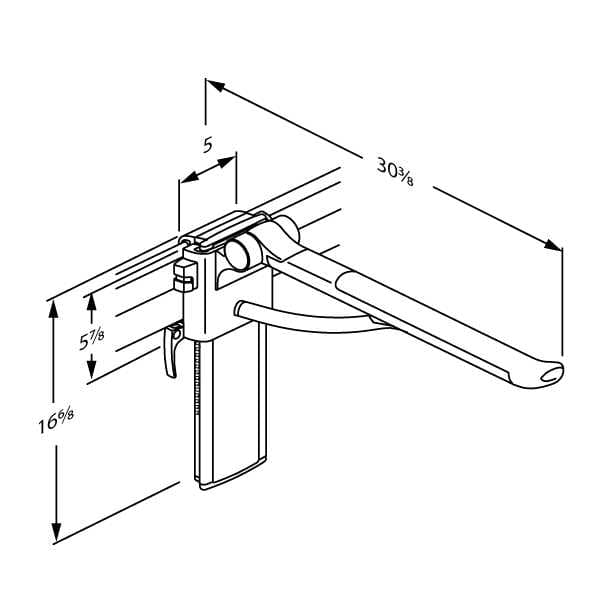

Dimensioned drawing, inch

Adjustability

Vertical and horizontal adjustable

Adjustment height (inch)

9.46

Maximum user weight (MUM), lbs

331

Declaration of conformity

This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)

Colour

Lime green

Designer

Rasmus Thygesen

Design year

2011

Materials

The grab bars are primarily constructed in 10-micrometer anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
The hinge arm is also made of soft SEBS.
Internal components and fasteners are primarily made of stainless steel.
The hinge barrel is capped with ABS polymer.

Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Oxyplus-acid 2% (Diversey)
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

Sales unit

pcs

Net weight, lbs

10.5

Gross weight, lbs

14.2

Weight per crate, lbs

14.2

Crates per pallet

Qty per crate

Qty per pallet

Carton size

1060x245x275 mm

Mounting

Mounting: For fitting to horizontal PLUS wall track (not included).
