MATRIX brackets for sink, 200 mm height adjustable
Product number: R2015182
EAN: 5708590329345
For MEDIUM and ANGLE sinks.
Set of 2.
Set of 2.
Description
- Product description
- Simple design
- Power free alternative
- MATRIX brackets are the low cost solution for MATRIX MEDIUM and ANGLE sinks.
They are available in a manually height adjustable version, which is suitable for infrequent adjustment. - Sink brackets, set of 2 pcs. 200 mm height adjustable (Not for frequent adjustment).
Suitable for MEDIUM and ANGLE sinks with integrated handrails.
Recommendation: Flexible feed and waste system R2087/R2085.
Excl. mounting kit.
- Intended use
- A sink bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum user weight (MUM): 353 lbs.
Maximum load (SWL): 331 lbs.
Suitable for sinks weighing no more than 66 lbs.
When the sink is loaded with 331 lbs, each wall fastener will be carrying 165 lbs.
Sink brackets need to be able to carry the weight of the sink, as well as support the weight of the person who is leaning against the sink or who is using the sink to rise from seated position.
Neither sink nor sink bracket are intended to carry the full body weight of a person, and the test methods applicable to sink brackets reflect this: ISO 17966 prescribes a static test on the front edge of the sink at 75% of maximum user weight, i.e. when the maximum load on a sink bracket is given as 331 lbs and the wash basin weighs 66 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 353 lbs leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590329345VVS
636858810ETIM
EC010187NRF
6132552NBS
N13:30,335HMI
106240GMDN
63052FDA
ILW/D142473UNSPSC
42211600
- Product group
- Sink brackets

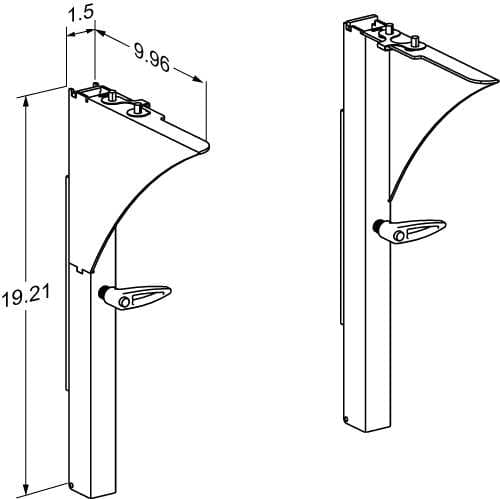

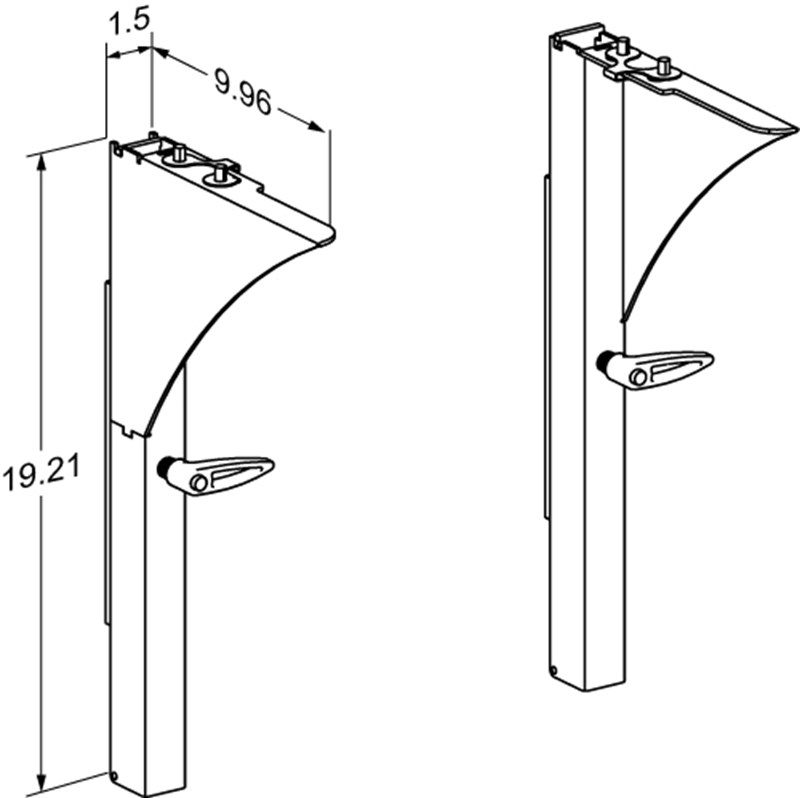

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 7.88
- Maximum user weight (MUM), lbs
- 331
- Safe working load (SWL), lbs
- 353
- Colour
- Pale gray
- Materials
- Powder coated stainless steel
- Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, lbs
- 12.1
- Gross weight, lbs
- 16.5
- Weight per crate, lbs
- 16.5
- Crates per pallet
- 25
- Qty per crate
- 1
- Qty per pallet
- 25
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
