VALUE support arm on column
Product number: R1161000
EAN: 5708590176697
Length: 955 mm. Can be height adjusted 670 mm from 215 to 885 mm.
Description
- Product description
- VALUE support arm, floor-mounted on free-standing column, projection 955 mm. Height adjustable 670 mm.
The ergonomic design gives a secure and comfortable grip as well as a good sense of where the support arm ends.
Incl. fixing bolts for solid floor. Plugs depend on floor type and must be ordered separately. - VALUE support arm, floor-mounted on free-standing column, projection 955 mm. Height adjustable 670 mm.
The ergonomic design gives a secure and comfortable grip as well as a good sense of where the support arm ends.
Materials: Rilsan-coated steel, pressure-cast aluminium, plastic.
Incl. fixing bolts for solid floor. Plugs depend on floor type and must be ordered separately.
- Intended use
- The support arm is used as a suport for a user, when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- The support arm can fold up when not in use or to make more space.
Height adjustable. - Ergonomy
- Provides firm support when you are sitting, standing, or transferring to and from a toilet.
Good, broad support surface for the hand and arm.
The rounded form gives a firm and comfortable grip. - ProductAttributes.ProductIntendedUse
- SUPPORT ARMS
- Product capacity
- Max. vertical load: 120 kg.
- Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590176697VVS
615722425ETIM
EC010078NRF
6190517NBS
N13:436RSK
8980351HMI
25416GMDN
35585FDA
ILS/D135866UNSPSC
42211612
- Product group
- Support arms and arm supports

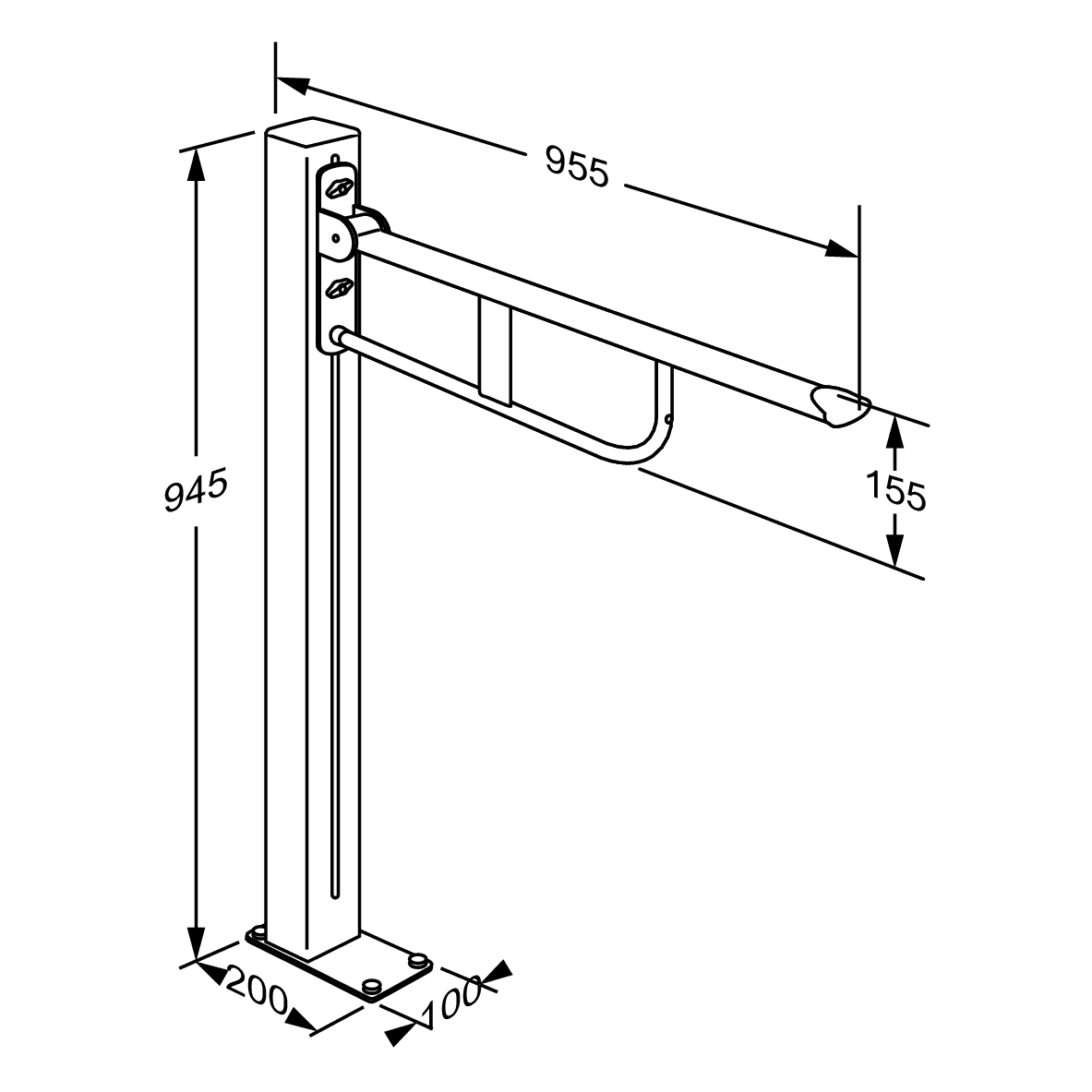

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 670
- Maximum user weight (MUM), kg
- 120
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1) - Colour
- White
- Materials
- Basic material: Steel
Surface material: Rilsan
End cap: Nylon (PA) - Cleaning
VALUE support arms
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
Klorilli (Kiilto Clean)
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 10.1
- Gross weight, kg
- 11.1
- Weight per crate, kg
- 11.1
- Crates per pallet
- 25
- Qty per crate
- 1
- Qty per pallet
- 25
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
