VALUE support arm, 850 mm, with control panel
Product number: R1083000
EAN: 5708590346854
Only for TL3 and TL4
Height adjustable, left hand operated. Foldable
Height adjustable, left hand operated. Foldable
Description
- Product description
- Ergonomic grip for weak hands
- Flat surface to push against
- Folds easily against the wall
- VALUE support arm, 850 mm, foldable, incl. operating panel for height adjustment of toilet lifter.
Provides firm support when sitting, standing, or transferring to and from a toilet.
To be mounted on the right (left hand operated).
Height adjustable by 150 mm without using tools..
For fitting to toilet lifter (mounting profile included) - VALUE support arm, incl. control panel for TL3/TL4 toilet lifter, 850 mm, foldable, height adjustable 150 mm without the use of tools (left hand operated).
Provides firm support when sitting, standing, or transferring to and from a toilet.
Materials: Rilsan-coated steel, diecast aluminium and end plug in nylon (PA).
For fitting to TL3/TL4 electrical toilet lifter, ALBA wing mounting profile included. For mounting on user's right side.
- Intended use
- The support arm is used as a suport for a user, when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - ProductAttributes.ProductIntendedUse
- SUPPORT ARMS
- Product capacity
- Maximum load: 120 kg
- Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590346854VVS
615892302ETIM
EC010078NRF
6191055HMI
138195GMDN
35585FDA
ILS/D135866UNSPSC
42211612
- Product group
- Support arms and arm supports

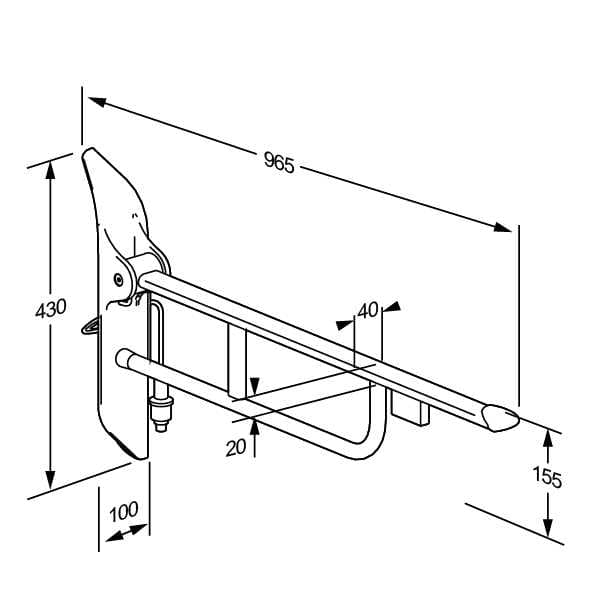

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 150
- Maximum user weight (MUM), kg
- 120
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2011/65/EC on RoHS - WEEE
- Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
- Colour
- White
- Materials
- The support arm is manufactured from steel with a Rilsan coating, which is comfortable to the touch, easy to clean, and protects the metal against corrosion. The end caps are manufactured from nylon (PA). The mounting profile is made from diecast aluminium.
- Cleaning
VALUE support arms
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
Klorilli (Kiilto Clean)
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 4.6
- Gross weight, kg
- 5.7
- Weight per crate, kg
- 5.7
- Crates per pallet
- 12
- Qty per crate
- 1
- Qty per pallet
- 12
Mounting
- Mounting
- Mounting material for installation with toilet lifter is included.
