SELECT wash basin bracket, wall-mounted with floor support, electrically height adjustable with wired hand control
Product number: R4951000
EAN: 5708590324111
Can be height adjusted 300 mm from 670 to 970 mm. For MATRIX SMALL and CURVE wash basins
Description
- Product description
- Concealed plumbing - hygienic
- Suits variety of basins
- Choice of operating control and cover colours
- SELECT wash basin lifter are equipped with a front cover plate, which conceals the plumbing installations (flexible feed and waste system to be bought separately).
- SELECT wash basin lifter, floor standing.
Electrically height adjustable 300 mm with wired hand control.
Recommendation: flexible feed/waste system R2065 (UK market R2075).
Incl. fixing bolts for wash basin (Recommended with MATRIX SMALL and MATRIX CURVE/NEW CURVE wash basins).
Materials: Anodized aluminium and polystyrene (PS).
Excl. mounting kit.
- Intended use
- A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- The wash basin is raised or lowered using the wired hand control or the lever control at the end of the wash basin. The lever control can be positioned on either side of the wash basin and also serves as a towel holder. The lever control is strong enough to be used as an extra support.
The wash basin can be adjusted 300 mm – from 670 to 970 mm above the floor. - Ergonomy
- The lifter‘s stringent and pure design as well as smooth surfaces are easy to clean and attractive to look at. They also help ensure good hygiene in the bathroom. The exclusive aluminium side profi les are light, durable and elegant to look at.
- ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum load: 150 kg.
Suitable for wash basins weighing no more than 22 kg.
When the wash basin is loaded with 150 kg, each wall fastener will be carrying 18 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin bracket are intended to carry the full body weight of a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 22 kg, it is – according to ISO 17966 – the equivalent of a user weighing 171 kg leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590324111VVS
654005200ETIM
EC010187NRF
6132543NBS
N13:30,335HMI
82619GMDN
63054FDA
ILW/D142473UNSPSC
42211600
- Product group
- Wash basin brackets

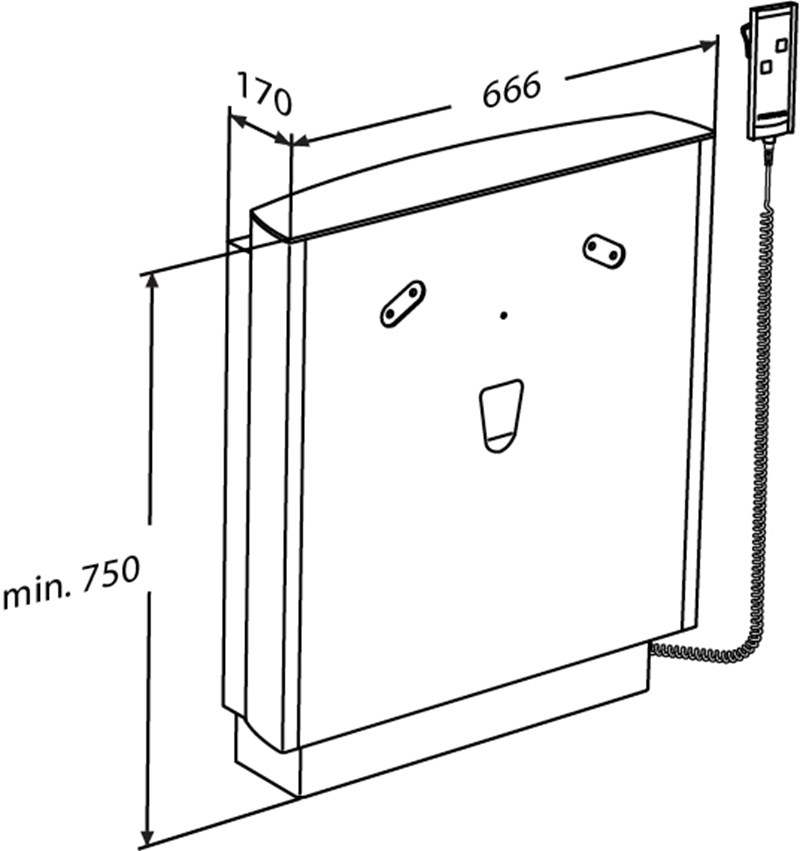

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 300
- Mains connection, V~
- 230
- Frequency, Hz
- 50/60
- IP rating
- IPX6
- Speed, downwards, mm/s
- 21
- Speed upwards, mm/s
- 21
- Maximum user weight (MUM), kg
- 150
- Safe working load (SWL), kg
- 171
- Power consumption (maximum load), W
- 75
- Power consumption (standby), W
- 1.5
- Noise level, dB
- 45
- Actuator (motor)
- LA31 Careline, (Linak), 1500N, IPX4
- Control box
- CB9 Careline, (Linak), IPX6
- Wired remote control
- HB3 (Linak), IP66
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 - Colour
- White
- Designer
- Rasmus Thygesen
- Design year
- 2013
- Materials
- Anodized aluminium.
The front plates are made of polystyrene (PS).
Top plate in compact laminate.
Flammability-tested (ISO 8191-1 and ISO 8191-2). Test report available. - Cleaning
PLUS & SELECT wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 28
- Gross weight, kg
- 30
- Weight per crate, kg
- 30
- Crates per pallet
- 5
- Qty per crate
- 1
- Qty per pallet
- 5
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
