PLUS wash basin bracket with lever control, electrically height adjustable
Product number: R4750
EAN: 5708590309309
Previous versions: R4260
Can be height adjusted 300 mm from 668 to 968 mm. For MATRIX SMALL and CURVE wash basins
Description
- Product description
- Standing or seated heights available
- Adapts to progressive needs of individuals
- Two different methods of adjustment depending on situation
- PLUS wash basin brackets are available in electrically, pneumatically and manually height adjustable versions.
They are suitable for wall-mounting or for fitting to Pressalit PLUS wall tracks. - PLUS wash basin bracket, wall-mounted.
Electrically height adjustable 300 mm with lever control.
Lever control is placed at the front of the wash basin, it can be used as a towel rail and can be placed on either side of the wash basin.
Recommendation: flexible feed/waste system R2065/R2067 (UK markets R2071/R2075).
Incl. fixing bolts for wash basin (Recommended with MATRIX SMALL and MATRIX CURVE/NEW CURVE wash basins).
Materials: Aluminium and ABS polymer.
Excl. mounting kit.
- Intended use
- A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- The arm that holds the lever control can function as a towel rail. The lever control can be placed on the right- or left-hand side of the wash basin. An independant user will be able to make the necessary adjustments to an electrically operated wash basin bracket themselves without any problems.
- Ergonomy
- The height of the wash basin is easily adjusted by means of the lever control. The wash basin bracket suits all types of bolt-mounted wash basin. Its rounded, sleek design greatly facilitates cleaning.
- ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum load: 100 kg.
Suitable for wash basins weighing no more than 22 kg.
When the wash basin is loaded with 100 kg, each wall fastener will be carrying 42 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin bracket are intended to carry the full body weight of a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 100 kg and the wash basin weighs 22 kg, it is – according to ISO 17966 – the equivalent of a user weighing 104 kg leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590309309VVS
654003110ETIM
EC010187NRF
6132534NBS
N13:30,335RSK
7972592HMI
71761GMDN
63054FDA
ILW/D142473UNSPSC
42211600
- Previous version
- R4260
- Product group
- Wash basin brackets

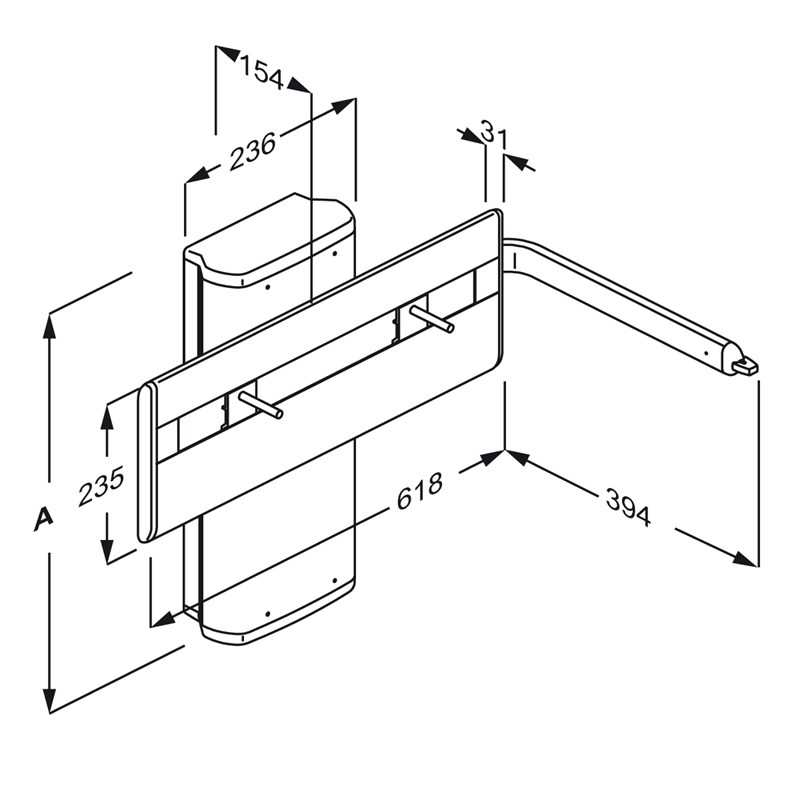

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 300
- Mains connection, V~
- 230
- Frequency, Hz
- 50/60
- IP rating
- IPX6
- Speed, downwards, mm/s
- 23
- Speed upwards, mm/s
- 20
- Maximum user weight (MUM), kg
- 100
- Safe working load (SWL), kg
- 104
- Power consumption (maximum load), W
- 75
- Power consumption (standby), W
- 1.5
- Noise level, dB
- 45
- Actuator (motor)
- LA40 (Linak) 4000N, IPX6
- Control box
- SMPS14002
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 - Designer
- Rasmus Thygesen
- Design year
- 2011
- Materials
- The wash basin bracket is primarily made of 10-micrometre anodized aluminium. The ends of the bracket cover are capped with ABS polymer. The bracket is available with a lever control consisting of an ABS polymer switch at the end of an anodized aluminium arm.
- Cleaning
PLUS & SELECT wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 16.4
- Gross weight, kg
- 18.4
- Weight per crate, kg
- 18.4
- Crates per pallet
- 10
- Qty per crate
- 1
- Qty per pallet
- 10
