PLUS handrail 800 mm
Product number: RT103000
EAN: 5708590145921
Powder-laquered aluminium, diameter 33 mm.
Description
- Product description
- Highquality long lasting products
- Countless combination options
- Provides comfortable and firm support
- PLUS handrails are high-quality products and they can be combined in countless ways and they provide the final touch to furnishing a functional and flexible bathroom. A reliable solution with many different options, which can easily lay the grounds for increased independence.
- PLUS handrail, diameter 33 mm, length 800 mm, for fixed mounting.
The projection of 50 mm from the wall makes it easy to take hold of the rail.
Inkl. wall rosette, which covers the fixings.
Materials: Powder-coated aluminium and plastic
Excl. mounting kit.
- Intended use
- PLUS hand rail solutions are intended as a support for walking and standing users in the bathroom or for assisting seated users who need help getting up.
Expected service life is 10 years. - Ergonomy
- The 33 mm diameter enables the rail to be held comfortably and firmly. The projection of 50 mm from the wall makes it easy to take hold of the rail.
- ProductAttributes.ProductIntendedUse
- HANDRAILS
- Product capacity
- Maximum load: 235 kg.
When the handrail is loaded with 235 kg, each wall fastener is loaded with 56 kg.
Handrails are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590145921VVS
777565400ETIM
EC011028NRF
6191672NBS
N13:436RSK
8980548HMI
19084GMDN
35586FDA
ILS/D135866UNSPSC
42211608
- Product group
- Handrails

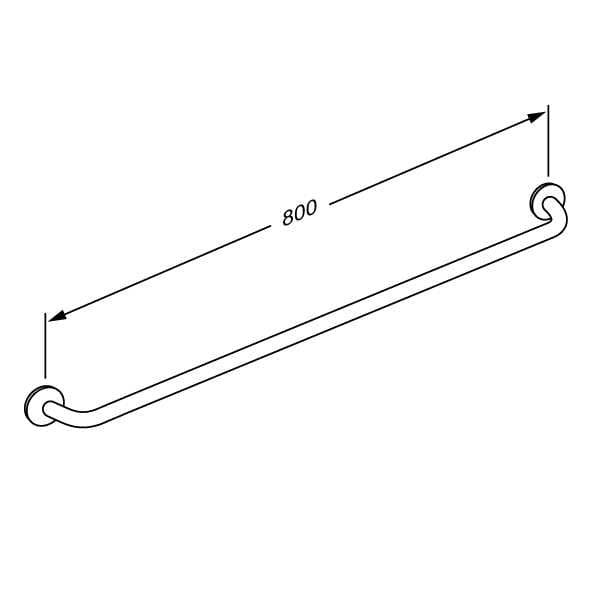

- Dimensioned drawing, mm
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices - Colour
- White
- Materials
- Basic material: Aluminium
Surface material: Polyester lacquer
Cover cap: Cycoloy plastic - Cleaning
Handrails ALU
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 1.2
- Gross weight, kg
- 1.6
- Weight per crate, kg
- 1.6
- Crates per pallet
- 48
- Qty per crate
- 1
- Qty per pallet
- 48
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
