SCT 3000 shower change table, electrically height adjustable

Name: SCT 3000 shower change table, electrically height adjustable
Brand: Pressalit
Availability: InStock

Product number: R8582313301

EAN: 5708590374109

Previous versions: R8513, R8533

Outer measurements: 1057 x 1410 mm.
Lying surface: 700 x 1300 mm.
With safety rail.

SCT 3000 shower change table, electrically height adjustable

Product number: R8582313301

EAN: 5708590374109

Previous versions: R8513, R8533

Outer measurements: 1057 x 1410 mm.
Lying surface: 700 x 1300 mm.
With safety rail.

Description

Product description

- Water collection tray - easy to clean
- Head support - users don’t have to lie flat
- Comfortable surface, easy to turn users over
Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user.

The SCT 3000 series has a stylish and award-winning design focused on comfort and ease of use.
SCT 3000 shower change table, powered, height adjustable 700 mm; from 300 mm -1000 mm, with wired hand control
Foldable. Incl. safety rail, flexible hose (Ø32 mm) and water collection tray with integrated outlet.
Surface length 1300 mm, outer measurements 1057 mm x 1410 mm.
Excl. mounting kit.
SCT 3000 shower and change table – popular everywhere
There's a good reason why this shower and change table is one of the most popular on the market. The stylish design combined with optimal comfort for both user and helper means that private homes, public bathrooms, hospitals, institutions and many other areas consider this product the best on the market.

Intended use

This product is intended for showering or changing a person who is unable to stand or sit. The person is lying horizontally on the table.
Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual.

Features

• A water collection tray with integrated water outlet prevents water from splashing on carers or the floor. The flexible hose (Ø32 mm) attached to the center mounted outlet of the water collection tray, can be connected to either an outlet in the floor or on the wall.

• The slightly curved shape makes the table comfortable and safe to lie on.

• Adjustable neck support which can be moved to either end of the 1800 mm shower and changing tables.

• The integrated gas cylinders enable the table to be folded out of the way when not in use to maximize floor space.

• The powered shower change table is supplied with a wired hand control. The red buttons clearly indicate "up" and "down".

• The wired hand control comes with a practical holder for placement on the wall.

Ergonomy

• The ergonomically designed safety rails have a practical lower central section, which provides better access and work environment for the carer while transferring, showering, drying, changing and dressing the user.

• One hand operated safety rails allows the carer to maintain eye contact as well as physical contact with the user during the whole process.

• Easy to clean, smooth contact surfaces which do not collect dirt and bacteria.

ProductAttributes.ProductIntendedUse

SHOWER CHANGE TABLES

Product capacity

Maximum user weight (MUM): 227 kg.
Safe working load (SWL): 237 kg.
When the table is loaded with 227 kg, each mounting bolt supports 29,5 kg
This product has been tested statically with a load of 592,5 kg as the IEC 60601-1 standard requires testing with safety factor 2.5.

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date. NOTICE If the product is placed in an atmosphere heavy in salt or chloride, the warranty will be reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the products components and will cause a decrease in the life expectancy of the product.

Specifications

Product codes

EAN
5708590374109
VVS
777543443
ETIM
EC010457
HMI
130167
GMDN
43600
UNSPSC
42211601

Previous version

R8513, R8533

Product group

Shower and changing tables

Product series

SCT 3000

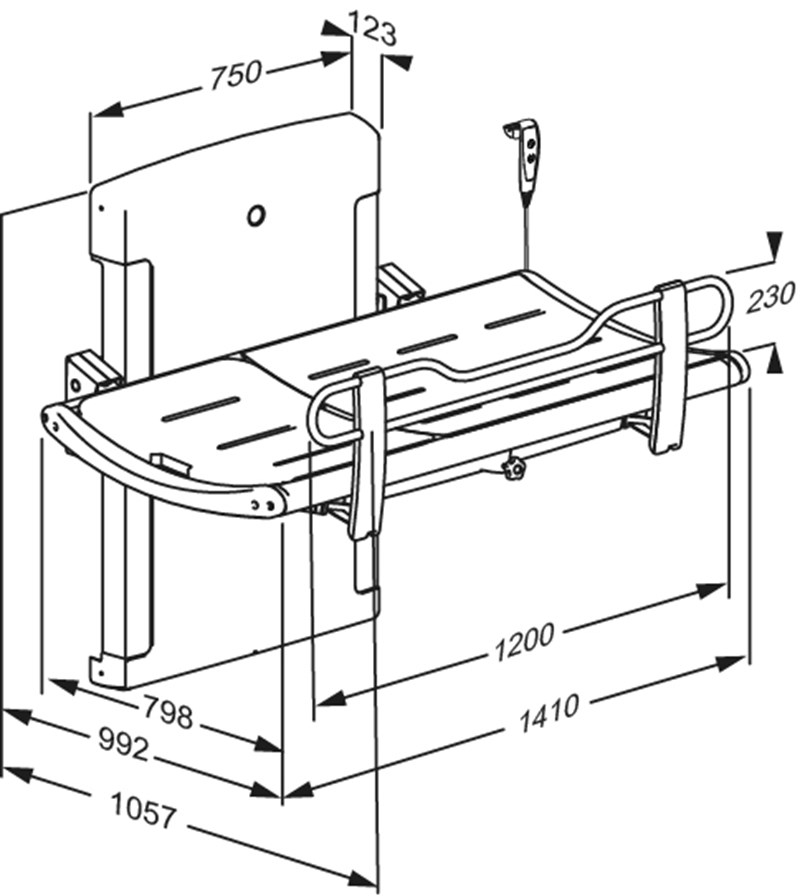

Dimensioned drawing, mm

Adjustability

Height adjustable

Adjustment height, mm

700

Mains connection, V~

230

Frequency, Hz

50/60

IP rating

IPX6

Speed, downwards, mm/s

Speed upwards, mm/s

Maximum user weight (MUM), kg

227

Safe working load (SWL), kg

237

Power consumption (maximum load), W

420

Power consumption (standby), W

Noise level, dB

Actuator (motor)

LA40 Careline (Linak) 4000 N, IPX6

Control box

CA63 Careline (Linak), IPX6

Wired remote control

HB30 (Linak), IP66

Declaration of conformity

This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Colour

Graphite grey (RAL 7024)

Designer

Rasmus Thygesen

Design year

2020

Materials

Powder-lacquered stainless steel, aluminium and plastics (PVC, Polystyrene). Pads in polyurethane foam, are tested according to the DIN EN 1021-1 standard (flame resistance).

Cleaning

SCT 3000
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Accel PREVention Wipes Lingettes
Universal Wipes (Clinell)
Sporidical Wipes (Clinell)
CHLOR-CLEAN Tablets (chemform)
WipeClean Ethanol Disinfection 80% (PLUM)
Wetwipe Ethanol Disinfection 70% (wetwipe)
OxiGenesis from ENVIROX

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.

Sales unit

pcs

Net weight, kg

86.2

Gross weight, kg

94.2

Weight per crate, kg

94.2

Crates per pallet

Qty per crate

Qty per pallet

Mounting

Mounting: Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
