    SCT 1000 shower change table, electrically height adjustable

    Please accept all cookies to watch this video. Click here to change cookie consent.

    Product number: R8583114000

    EAN: 5708590377636

    Previous versions: R8402

    Outer measurements: 760 x 1400 mm.
    Lying surface: 600 x 1400 mm.
    With safety rail.
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Toilet seats
    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Toilet seats
    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Mediabank
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Mediabank
    • Privacy policy
    • Cookies
    • Newsletter signup

    Follow us

    • Newsletter signup

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Related products

      Description

      Product description
        • Stretcher is easy to clean
        • Light table element, folded easily
        • Splash curtain option to keep assistant's legs dry
      • Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
        These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
        The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user.

      • SCT 1000 showerchange table, powered, height adjustable 400 mm; from 480 mm - 880 mm, with wired hand control
        Foldable. Incl. safety rail.
        Outer measurements 760 mm x 1400 mm.
        Excl. mounting kit.
      Intended use
      This product is intended for showering or changing a person who is unable to stand or sit. The person is lying horizontally on the table.
      Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual.
      Features
      Electric with wired hand control – the red buttons clearly indicate “Up” and “Down”. The wired hand control comes with a holder for fitting to the wall.
      The integrated gas cylinders enable the table to be folded out of the way when not in use to maximise floor space in front of the unit.
      Splash curtain (optional) for the shower and changing table protects the carer against splashing.
      Ergonomy
      Carers can easily set the height of the table, enabling them to obtain the correct working position. This ensures safe showering and changing for the user as well as minimizing the risk of back injury for the carer.
      ProductAttributes.ProductIntendedUse
      SHOWER CHANGE TABLES
      Product capacity
      Maximum user weight (MUM): 200 kg.
      Safe working load (SWL): 200 kg.
      When the table is loaded with 200 kg, each mounting bolt supports 27 kg.
      This product has been tested statically with a load of 500 kg as the IEC 60601-1 standard requires testing with safety factor 2.5.
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date. NOTICE If the product is placed in an atmosphere heavy in salt or chloride, the warranty will be reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the products components and will cause a decrease in the life expectancy of the product.

      Specifications

      Product codes
      • EAN

        5708590377636
      • VVS

        777543640
      • ETIM

        EC010457
      • HMI

        140128
      • GMDN

        43600
      • UNSPSC

        42211601
      Previous version
      R8402
      Product group
      Shower and changing tables
      Product series
      SCT 1000

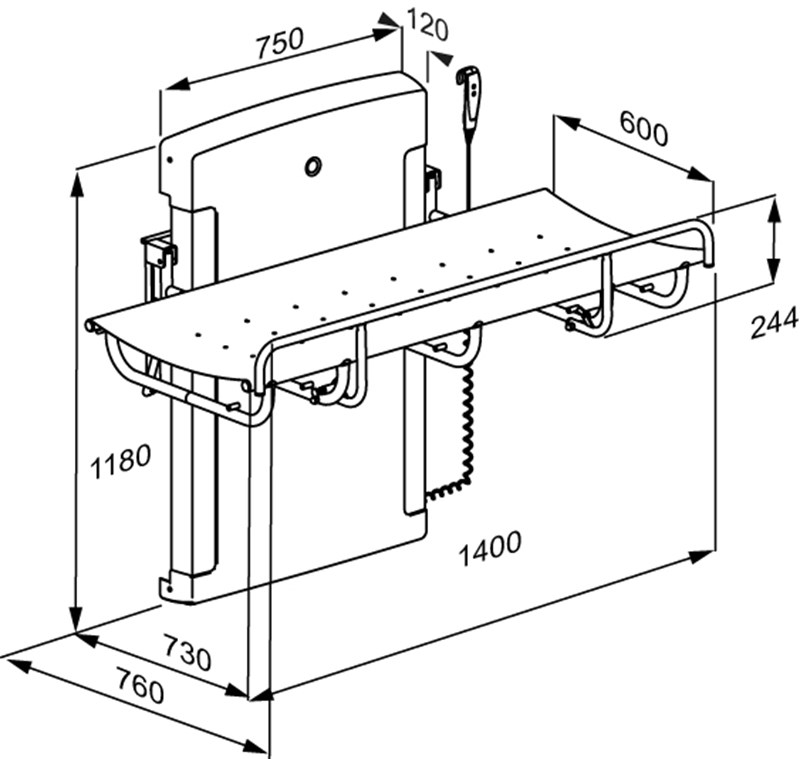

      Dimensioned drawing, mm
      Dimensioned drawing, mm
      Adjustability
      Height adjustable
      Adjustment height, mm
      400
      Mains connection, V~
      230
      Frequency, Hz
      50/60
      IP rating
      IPX6
      Speed, downwards, mm/s
      9
      Speed upwards, mm/s
      11
      Maximum user weight (MUM), kg
      200
      Power consumption (maximum load), W
      420
      Power consumption (standby), W
      0.5
      Noise level, dB
      50
      Actuator (motor)
      LA40 Careline (Linak), 4000 N, IPX6
      Control box
      CA63 Careline (Linak), IPX6
      Wired remote control
      HB30 (Linak), IP66
      Declaration of conformity
      This product is produced in compliance with all relevant requirements of:
      - Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
      - Council Directive 2006/42/EC on machinery
      - Council Directive 2011/65/EC on RoHS
      For the UK:
      - Medical Device Regulation (MDR) 2002 on medical devices
      - Supply of Machinery (Safety) Regulations 2008
      - Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
      Colour
      White
      Designer
      Pressalit
      Design year
      2010
      Materials
      The table is made from practical and durable PVC canvas which is phthalate free. The frame is powder-coated stainless steel.
      Cleaning

      SCT 1000 & 2000
      The product is to be cleaned with hot water or a mild soapy cleaning agent.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%
      Accel PREVention Wipes Lingettes
      OxiGenesis from ENVIROX

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
      Sales unit
      pcs
      Net weight, kg
      44.5
      Gross weight, kg
      50.4
      Weight per crate, kg
      50.4
      Crates per pallet
      1
      Qty per crate
      1
      Qty per pallet
      1

      Mounting

      Mounting

      Please accept all cookies to watch this video. Click here to change cookie consent.

      Downloads

      Mounting instructionsTechnical datasheet3D cad model (AutoCAD)EU declaration of conformityBIM object (Revit)Load bearing installation recommendationUKCA declaration of conformityQuick guideExport certificateUser guide (OMM)
