Pressalit Delight 492

Product number: 492000-D78999

EAN: 5708590300283

Toilet seat with soft close incl. hinge in stainless steel.

Description

Product description
    • Wide suitability
    • Classic design
    • High capacity load
  • Discreet. Design. Delicious. The description is that simple. Delight takes the D at face value and fits it to most D-shaped pans. Wrap-over underlines the stringent design, and the soft close function makes it a pleasure to use.
  • PRESSALIT toilet seat with cover, model "Delight", art. no. 492 made of colour ingrained duroplast with D78 universal flex hinge of stainless steel and plastic.
    - centre distance: 135 - 215 mm
    - load - ring seat 240 kg
    - suitable for D-shaped toilets
    - 10 year guarantee
Product capacity
Load - ring seat 240 kg
Warranty
Your Pressalit toilet seat is subject to a 10-year product warranty against presentation of receipt. You should contact the dealer or store where you purchased the seat in the event of a complaint. In the event of complaints about defective materials and/or manufacturing defects and/or functional limitations ascertained within a 10-year period, following proper use and cleaning of the toilet seat (we reserve the right to examine the toilet seat at our factory), Pressalit will deliver spare parts or replace the toilet seat by an identical or similar model. If the color is no longer available, Pressalit reserves its right to replace the toilet seat by a similar model in the color white. Upon replacement or delivery of a spare part, the warranty period will not be extended nor renewed. If replacement is not possible, Pressalit may instead refund the purchase price.

Product fits

Product fits
ManufacturerBowl
Cassoe
  • Aqualux Skagen hængeskål
Cersanit S. A.
  • Mille
Duravit AG
  • Durastyle Nordic
Geberit International AG
  • Renova 54 cm.
  • Renova Nr. 1
Gustavsberg (V & B)
  • Nautic 1500 uden skyllekant HF, S-lås
Keramag AG (Geberit)
  • Renova Nr. 1
  • Renova Nr. 1 54 cm
Laufen AG
  • Dino
  • Moderna R
  • Pro
  • Pro Compact
LAUFEN CZ s. r. o.
  • Lyra Plus Wallhung
Villeroy & Boch
  • O.novo (Oval)
VITRA
  • S50, 52 cm

Specifications

Product codes
  • EAN

    5708590300283
  • VVS

    615031000
  • ETIM

    EC011196
  • NRF

    6190119
  • RSK

    7904453
  • UNSPSC

    30181603
Product group
Toilet seats

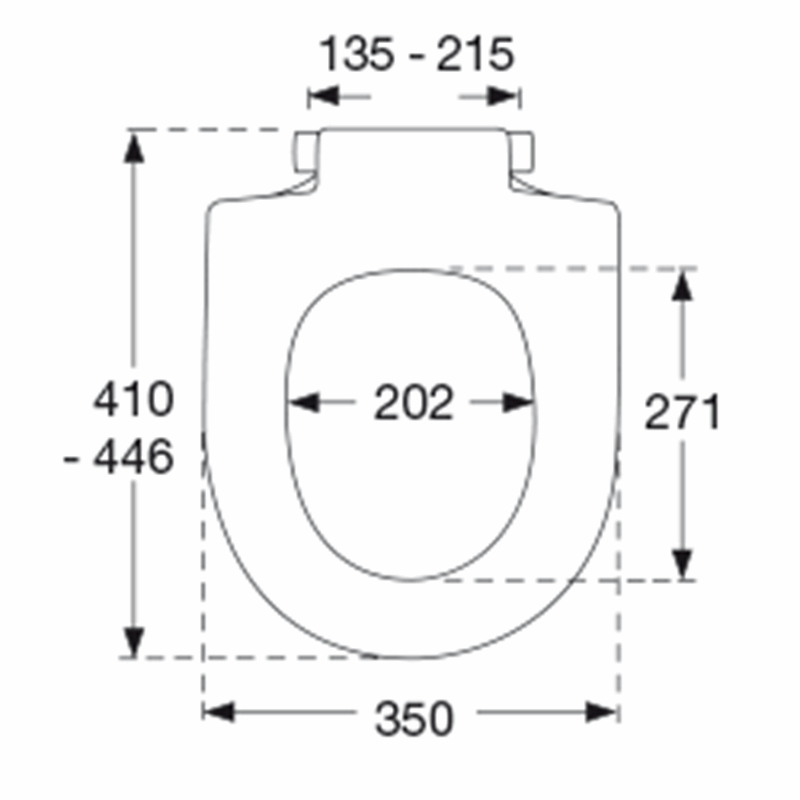

Dimensioned drawing, mm
Dimensioned drawing, mm
Hinge drawing
Hinge drawing
Hinge model
D78
Hinge model mount description
Bottom mounted;Top mounted
Colour
White
Designer
Pressalit
Design type
Wrap-over
Design year
2007
Materials
TOILET SEAT:
The material is colour ingrained duroplast (UF A 10 = urea formaldehyde) that contains no environmentally hazardous substances. UF plastic comprises 67% urea formaldehyde resin, 28% cellulose, as well as 5% minerals, pigments, lubricants and moisture content. The raw material from the supplier contains up to 0.03% free formaldehyde and even less following curing.

BUFFERS:
EVA (copolymer made of ethylene and vinyl acetate).

DAMPER KIT (only relevant for toilet seats with soft close):
Hydraulic damper with stainless steel damper casing and thermoplastic parts.

MOUNT/HINGES:
Stainless steel model W. no. 1.4301/M and thermoplastic.
Cleaning
Use a mild soap solution to clean the seat. Please take care that the seat and hinges are not left damp. Dry off any residual water or cleaning agent with a soft cloth. Avoid contact of the seat and hinges with abrasive, corrosive or chlorine-based cleaners, as these may cause damage or lead to flash rust. Therefore, when cleaning the bowl, make sure that the seat and cover are kept in an upright position until all cleaning agent has been flushed away.
Sales unit
pcs
Net weight, kg
3.3
Gross weight, kg
3.5
Weight per crate, kg
17.3
Crates per pallet
12
Crate size
502x401x428 mm
Qty per crate
5
Qty per pallet
60
Carton size
490x389x84 mm

Mounting

Top mounting w/screw

Please accept all cookies to watch this video. Click here to change cookie consent.

Bottom mounting

Please accept all cookies to watch this video. Click here to change cookie consent.

Spare parts

Sparepart drawing
Sparepart drawing
