PLUS wall track, 900 mm
Product number: R9809112
EAN: 5708590305752
Previous versions: R9902
For horizontal mounting
Description
- Product description
- Track allows movement of products - push within reach or out of the way for different user situations
- Space efficient - products can be moved into dead space
- Elimination for need to adapt bathroom to different user requirements - future proof arrangement
- PLUS wall tracks are used for mounting of support arms, shower seats and wash basin brackets, and allows sideways adjustment of these products.
See below a selection of products for fitting to the wall track. - PLUS wall track, 900 mm, for horizontal mounting.
The cover plate hides bolts and wires and facilitates cleaning.
Materials: Aluminium and polystyrene.
See below a selection of products for fitting to the wall track.
Excl. mounting kit.
- Intended use
- The wall tracks are used for mounting of PLUS support arms, PLUS shower seats and PLUS wash basin brackets, and allows sideways adjustment of these products.
Expected service life of the wall tracks are 10 years, provided that cleaning and maintenance are carried out as described in the instructions for use (OMM). - Features
- The horizontal track makes it possible to shift the product along the wall to constantly optimize the available space in the bathroom. The front cover plate conceals mounting bolts and any cables.
- Ergonomy
- The track distributes the weight of the individual bathroom product, for example a wash basin bracket, along its entire length. The products can be adjusted and locked on to the track with intuitive locking functions.
- ProductAttributes.ProductIntendedUse
- WALL TRACKS
- Product capacity
- Maximum load: Up to 1000 kg depending on the wall type.
- Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590305752VVS
615841109ETIM
EC010050NRF
7501014HMI
71740
- Previous version
- R9902
- Product group
- Wall tracks

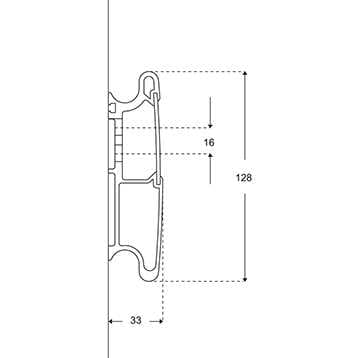

- Dimensioned drawing, mm
- Adjustability
- Fixed mounting
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
This product is considered to be an accessory for a medical device, as it is not itself a medical device, but is intended to be used together with several particular medical devices to specifically enable the medical devices to be used in accordance with their intended purposes. - Colour
- Anthracite grey
- Designer
- Rasmus Thygesen
- Design year
- 2011
- Materials
- The wall track is primarily made of 10-micrometre anodized aluminium. The cover plate is made of polystyrene and the ends of the track are capped with ABS polymer.
- Cleaning
PLUS wall tracks
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 2.2
- Gross weight, kg
- 2.5
- Weight per crate, kg
- 2.5
- Qty per crate
- 1
- Qty per pallet
- 0
