MATRIX powered basin unit, left-facing, height adjustable

Product number: R4852000

EAN: 5708590340920

For MATRIX ANGLE DEEP wash basins R2152 and R2153

Related products

Description

Product description

    • Suitable for MATRIX ANGLE DEEP wash basins
    • Concealed plumbing cover - hygienic

  • MATRIX brackets are tailor made for MATRIX wash basins.
    They are available in electrically and manually height adjustable and sideways adjustable versions, as well as fixed versions, all of them with a hygienic cover to conceal the plumbing installations.

  • MATRIX wash basin bracket, left-facing, wall-mounted, with white installation cover and incl. concealed feed and waste system.
    Electrically height adjustable 200 mm with operation buttons in front edge of wash basin.
    Incl. fixing bolts for wash basin (Can only be used with MATRIX ANGLE DEEP wash basins, R2152/R2153).
    Materials: Powder-coated stainless steel and PMMA.
    Excl. mounting kit.
Intended use
A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Product capacity
Maximum user weight (MUM): 160 kg.
Maximum load (SWL): 150 kg.
Suitable for wash basins that weigh 30 kg.
When the wash basin is loaded with 150 kg, each wall fastener will be carrying 60 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin brackets are intended to carry a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 30 kg, it is – according to ISO 17966 – the equivalent of a user weighing 160 kg leaning on the front edge of the wash basin.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590340920

  • VVS

    654022200

  • ETIM

    EC010187

  • HMI

    138112

  • GMDN

    63054

  • FDA

    ILW/D142473

  • UNSPSC

    42211600
Product group
Wash basin brackets

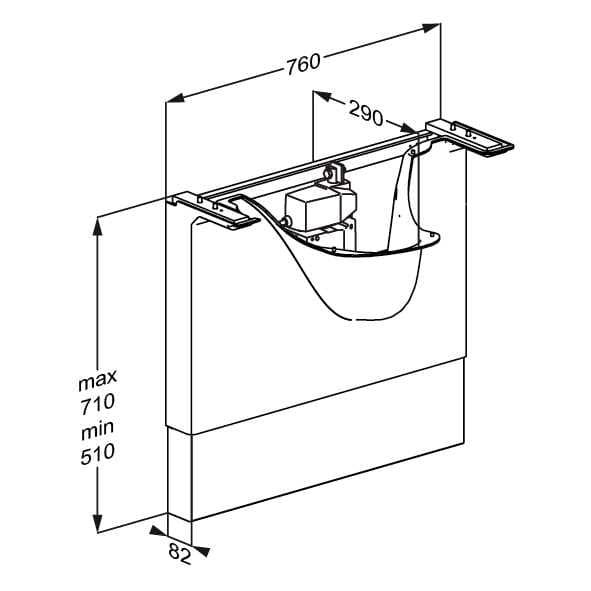

Dimensioned drawing, mm
Dimensioned drawing, mm
Adjustability
Height adjustable
Adjustment height, mm
200
Mains connection, V~
230
Frequency, Hz
50/60
IP rating
IPX6
Speed, downwards, mm/s
11.75
Speed upwards, mm/s
11.75
Maximum user weight (MUM), kg
160
Safe working load (SWL), kg
150
Power consumption (maximum load), W
70
Power consumption (standby), W
1.5
Noise level, dB
48
Actuator (motor)
LA31 Careline (Linak), 1500N, IPX6
Control box
CB9 Careline (Linak), IPX6
Declaration of conformity
CE MDR-MASK-RoHS This product is in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS.
Colour
White
Materials
Powder-coated stainless steel and PMMA.
Cleaning

VALUE & MATRIX wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit
pcs
Net weight, kg
19.3
Gross weight, kg
21.6
Weight per crate, kg
21.6
Crates per pallet
6
Qty per crate
1
Qty per pallet
6

Mounting

Mounting
Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
