CT 4000 change table, manually foldable, electrically height adjustable

Name: CT 4000 change table, manually foldable, electrically height adjustable
Brand: Pressalit
Availability: InStock

Product number: R8584572000

EAN: 5708590358130

Outer measurements: 1008 x 1829 mm.
Lying surface: 813 x 1829 mm.
With safety rail.
Mattress must be ordered separately.

CT 4000 change table, manually foldable, electrically height adjustable

Product number: R8584572000

EAN: 5708590358130

Outer measurements: 1008 x 1829 mm.
Lying surface: 813 x 1829 mm.
With safety rail.
Mattress must be ordered separately.

Description

Product description

Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user.

The CT 4000 series has been designed for public changing facilities and schools.
CT 4000 change table, manually foldable.
Electrically height adjustable 700 mm; from 300 mm -1000 mm, with buttons placed in table front.
Incl. safety rail, body belt and wired remote control.
Lying surface 813 x 1829 mm in compact laminate.
Outer measurements 1008 mm x 1829 mm.
Excl. mounting kit.

Intended use

This product is intended for changing a person who is unable to stand or sit. The person is lying horizontally on the table.
Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual.

Ergonomy

The ergonomically designed safety rail has a practical lower central section, which provides better access and work environment for the carer while transferring, changing and dressing the user.
Easy to clean, smooth contact surfaces which do not collect dirt and bacteria.

ProductAttributes.ProductIntendedUse

CHANGE TABLES

Product capacity

Maximum user weight (MUM): 227 kg.
Safe working load (SWL): 232 kg.
When the table is loaded with 227 kg, each mounting bolt supports 37,5 kg
This product has been tested statically with a load of 580 kg as the IEC 60601-1 standard requires testing with safety factor 2.5.

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.

Specifications

Product codes

EAN
5708590358130
VVS
777541100
ETIM
EC010100
HMI
125834
GMDN
43600
UNSPSC
42192005

Product group

Changing tables

Product series

CT 4000/4100

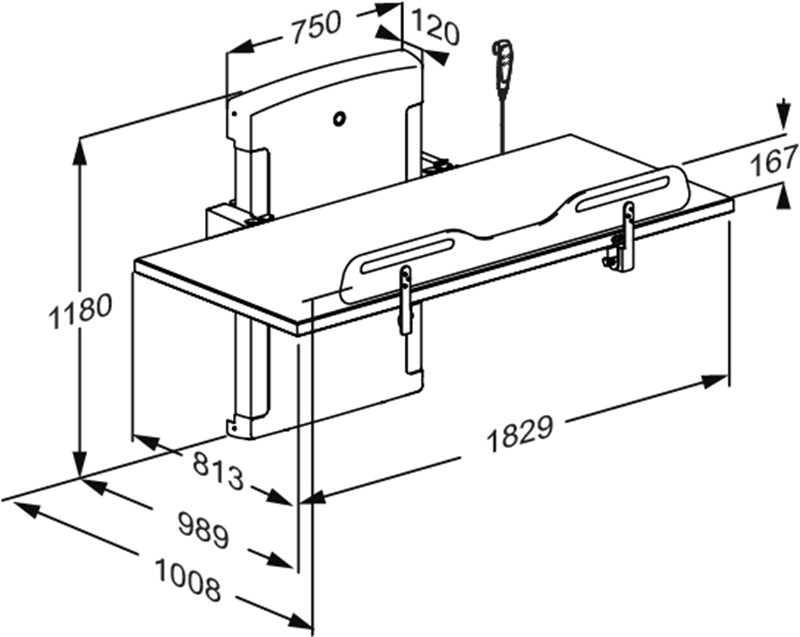

Dimensioned drawing, mm

Adjustability

Height adjustable

Adjustment height, mm

700

Mains connection, V~

230

Frequency, Hz

50/60

IP rating

IPX6

Speed, downwards, mm/s

Speed upwards, mm/s

Maximum user weight (MUM), kg

227

Safe working load (SWL), kg

232

Power consumption (maximum load), W

420

Power consumption (standby), W

Noise level, dB

Actuator (motor)

LA40 Careline (Linak) 4000 N, IPX6

Control box

CA63 Careline (Linak), IPX6

Wired remote control

HB30 (Linak) IP66

Declaration of conformity

This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

WEEE

Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.

Colour

White

Materials

Powder-laquered stainless steel, lying surface in Compact Density Fiberboards (CDF).

Cleaning

CT 4000, 4100, 5000
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Accel PREVention Wipes Lingettes

OxiGenesis from ENVIROX

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit

pcs

Net weight, kg

Gross weight, kg

Weight per crate, kg

Crates per pallet

Qty per crate

Qty per pallet

Mounting

Mounting: Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
Mounting: Please accept all cookies to watch this video. Click here to change cookie consent.

Downloads

Mounting instructions Technical datasheet 3D cad model (AutoCAD)EU declaration of conformity BIM object (Revit)Load bearing installation recommendation Quick guide Export certificate User guide (OMM)
