VALUE II fold down grab bar, 33.5'', incl. control panel for TL3/TL4

Product number: R1183000

EAN: 5708590373034

Only for use with TL3 and TL4, electric.
Height adjustable, left hand operated. Foldable

Related products

Description

Product description

    • Ergonomic grip for weak hands
    • Flat surface to push against
    • Folds easily against the wall

  • VALUE and VALUE II fold down grab bars with the ALBA wing mounting profile are specifically designed for use with SELECT TL3 and TL4 toilet lifters.
    The height adjustment of the toilet lifter is done only with the control panel on the fold down grab bar.

  • VALUE II fold down grab bar, incl. control panel for TL3/TL4 toilet lifter, 33.5'', foldable, height adjustable 5.9'' without the use of tools (left hand operated).
    Provides firm support when sitting, standing, or transferring to and from a toilet.
    Materials: Rilsan-coated steel and diecast aluminum.
    For fitting to TL3/TL4 electrical toilet lifter, ALBA wing mounting profile included. For mounting on user's right side.

Intended use
The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Product capacity
Maximum load: 265 lbs
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590373034

  • VVS

    615892300

  • ETIM

    EC010078

  • NRF

    6191061

  • HMI

    138210

  • GMDN

    35585

  • UNSPSC

    42211612
Product group
Fold down grab bars and arm supports

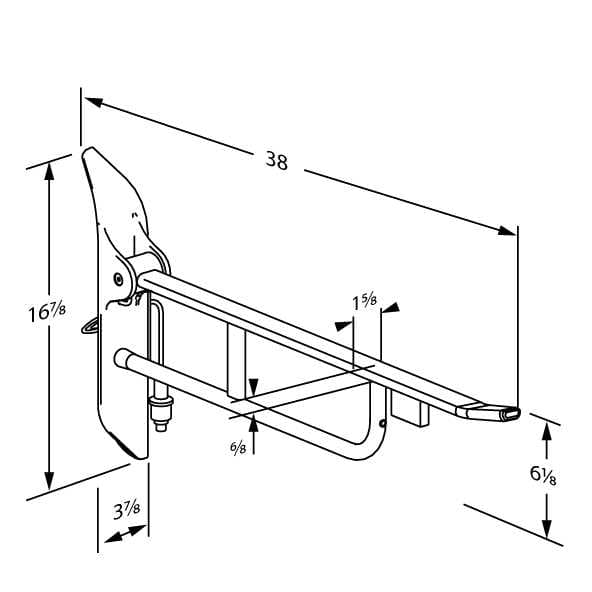

Dimensioned drawing, inch
Dimensioned drawing, inch
Adjustability
Height adjustable
Adjustment height (inch)
5.91
Maximum user weight (MUM), lbs
265
Safe working load (SWL), lbs
265
CE MDR-RoHS
Colour
White
Materials
The fold down grab bar is manufactured from steel with a Rilsan coating, which is comfortable to the touch, easy to clean, and protects the metal against corrosion. The mounting profile is made from diecast aluminium.
Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
Klorilli (Kiilto Clean)

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit
pcs
Net weight, lbs
10.1
Gross weight, lbs
12.6
Weight per crate, lbs
12.6
Crates per pallet
1
Qty per crate
1
Qty per pallet
1

Mounting

Mounting
Mounting material for installation with toilet lifter is included.

Downloads

3D cad model (AutoCAD)BIM object (Revit)Export certificateMounting instructionsEU declaration of conformityTechnical datasheet
