SCT 3000 shower change table, electrically height adjustable

Name: SCT 3000 shower change table, electrically height adjustable
Brand: Pressalit
Availability: InStock

Product number: R8592313301

EAN: 5708590374147

Previous versions: R8516, R8534

Outer measurements: 41.6" x 55.5".
Lying surface: 27.6'' x 51.2''.
With safety rail.

SCT 3000 shower change table, electrically height adjustable

Product number: R8592313301

EAN: 5708590374147

Previous versions: R8516, R8534

Outer measurements: 41.6" x 55.5".
Lying surface: 27.6'' x 51.2''.
With safety rail.

Description

Product description

- Water collection tray - easy to clean
- Head support - users don’t have to lie flat
- Comfortable surface, easy to turn users over
Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user.

The SCT 3000 series has a stylish and award-winning design focused on comfort and ease of use.
IAPMO-certified.
SCT 3000 shower change table, powered, height adjustable 27.6"; from 11.8" - 39.4", with wired hand control
Foldable. Incl. safety rail, flexible hose (Ø1.26") and water collection tray with integrated outlet.
Surface length 51.2", outer measurements 41.6" x 55.5".
Excl. mounting kit.
Awards
SCT 3000 shower and change table – popular everywhere
There's a good reason why this shower and change table is one of the most popular on the market. The stylish design combined with optimal comfort for both user and helper means that private homes, public bathrooms, hospitals, institutions and many other areas consider this product the best on the market.

Intended use

This product is intended for showering or changing a person who is unable to stand or sit. The person is lying horizontally on the table.
Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual.

Features

•A water collection tray with integrated water outlet prevents water from splashing on caregiver or the floor. The flexible hose (Ø1.26") attached to the center mounted outlet of the water collection tray, can be connected to either an outlet in the floor or on the wall.

• The slightly curved shape makes the table comfortable and safe to lie on.

• Adjustable neck support which can be moved to either end of the 51.2" changing tables.

•The integrated pneumatic cylinders enable the table to be folded out of the way when not in use to maximize floor space.

• The powered shower change table is supplied with a wired hand control. The red buttons clearly indicate "up" and "down".

• The wired hand control comes with a practical holder for placement on the wall.

Ergonomy

• The ergonomically designed safety rails have a practical lower central section, which provides better access and work environment for the carer while transferring, showering, drying, changing and dressing the user.

• One hand operated safety rails allows the carer to maintain eye contact as well as physical contact with the user during the whole process.

• Easy to clean, smooth contact surfaces which do not collect dirt and bacteria.

ProductAttributes.ProductIntendedUse

SHOWER CHANGE TABLES

Product capacity

Maximum user weight (MUM): 500 lbs.
Maximum load (SWL): 522 lbs. (User weight + weight of water)
When the table is loaded with 500 lbs, each mounting bolt supports 65 lbs.
This product has been tested statically with a load of 1306 lbs, as the IEC 60601-1 standard requires testing with a safety factor 2.5.

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date. NOTICE If the product is placed in an atmosphere heavy in salt or chloride, the warranty will be reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the products components and will cause a decrease in the life expectancy of the product.

Specifications

Product codes

EAN
5708590374147
ETIM
EC010457
GMDN
43600
FDA
INQ/D124319
UNSPSC
42211601

Previous version

R8516, R8534

Product group

Shower and changing tables

Product series

SCT 3000

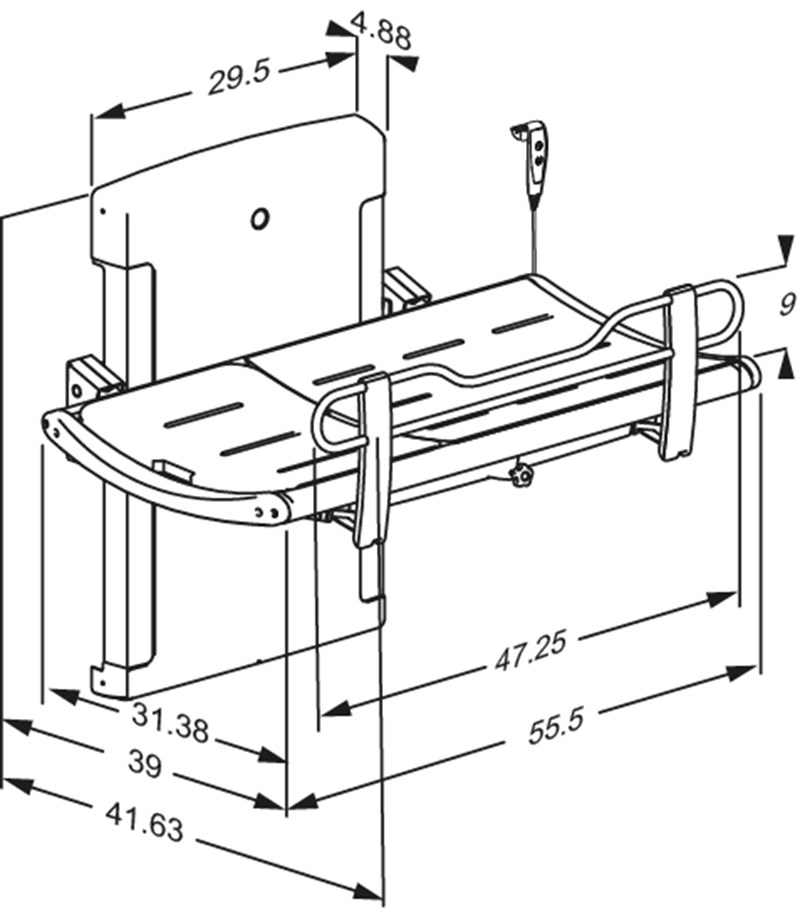

Dimensioned drawing, inch

Adjustability

Height adjustable

Adjustment height (inch)

27.58

Mains connection, V~

120

Frequency, Hz

50/60

IP rating

IPX6

Speed, downwards, inch/s

0.79

Speed upwards, inch/s

0.59

Maximum user weight (MUM), lbs

500

Safe working load (SWL), lbs

522

Power consumption (maximum load), W

420

Power consumption (standby), W

Noise level, dB

Actuator (motor)

LA40 Careline (Linak) 4000 N, IPX6

Control box

CA63 Careline (Linak), IPX6

Wired remote control

HB30 (Linak), IP66

Declaration of conformity

This product is solely intended for the US and Canada, and has no EU declaration of conformity.

Colour

Graphite gray (RAL 7024)

Designer

Rasmus Thygesen

Design year

2020

Materials

Powder-lacquered stainless steel, aluminium and plastics (PVC, Polystyrene). Pads in polyurethane foam, are tested according to the DIN EN 1021-1 standard (flame resistance).

Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Accel PREVention Wipes Lingettes
OxiGenesis from ENVIROX

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

Sales unit

pcs

Net weight, lbs

190

Gross weight, lbs

203.3

Weight per crate, lbs

203.3

Crates per pallet

Qty per crate

Qty per pallet

Mounting

Mounting: Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
