    PLUS shower seat 450 with aperture, electrically vertical and manually horizontal adjustable

    Product number: R7865112

    EAN: 5708590374451

    Previous versions: R7481, R7658

    With backrest and armrests.
    Can be height adjusted 19.7". For fitting to horizontal PLUS wall track (not included)
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +1 202-271-0166

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Homepage
    • Privacy policy
    • Cookies

    Pressalit

    • Homepage
    • Privacy policy
    • Cookies

      Your search returned no results

      Let us help you — get quick advise or a quote

      Get a quote

      Related products

      Description

      Product description

        • Maximum flexibility for multi user shower rooms
        • Movable and detachable without the use of tools
        • Range of colours, sizes and combinations of seat, backrest and arms

      • PLUS shower seats are offered in a number of colours. They are available as both fixed height, electrically adjustable and manually adjustable, with and without aperture, and with an option of back and armrests.
        They are suitable for wall-mounting or for fitting to Pressalit PLUS wall tracks.

      • Powered PLUS shower seat 450 with aperture, with back- and armrests. Electrically height adjustable by 19.7" and manually horizontal adjustable , the armrests are independently height adjustable. The seat and the armrests are foldable.
        Materials: Comfortable polyurethane foam over a plywood core, fitted to an aluminium profile. The non-slip gripping surface of the armrests are made of soft SEBS.
        For mounting on horizontal wall track (not included).
      Intended use
      The shower seat is used to sit on during showering.
      Expected service life of the shower seat is 10 years, provided that maintenance is carried out as described in the instructions for use (OMM).
      Features
      Powered raising or lowering at the push of a button - the seat can easily be adjusted upwards or downwards to a good working height for the caregiver while the user sits on it. The seat, backrest and armrests can be adjusted simultaneously thanks to a safe and easy click system. The armrests can also be adjusted independently of the seat and backrest. The seat and armrests can fold up when not in use or to maximize floor space. Wired hand control comes with brackets for mounting on the wall.
      Ergonomy
      Ergonomically designed seat - contact surface are 17.7" x 17.2". Soft and slip-resistant material that has a warm feel. The oval shape of the armrests gives an easy and comfortable surface to lean on and push against.
      ProductAttributes.ProductIntendedUse
      SHOWER SEATS
      Product capacity
      Maximum user mass (seat): 330 lbs.
      Maximum load for armrests is 120 lbs.
      When the seat is loaded with 330 lbs, each wall fastener is loaded with 77 lbs.

      The seat has been tested statically with safety factor 2.5, which is a requirement according to the applied assistive products standards.

      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590374451

      • ETIM

        EC010872

      • GMDN

        63008

      • FDA

        INN/D135865

      • UNSPSC

        42211610
      Previous version
      R7481, R7658
      Product group
      Shower seats

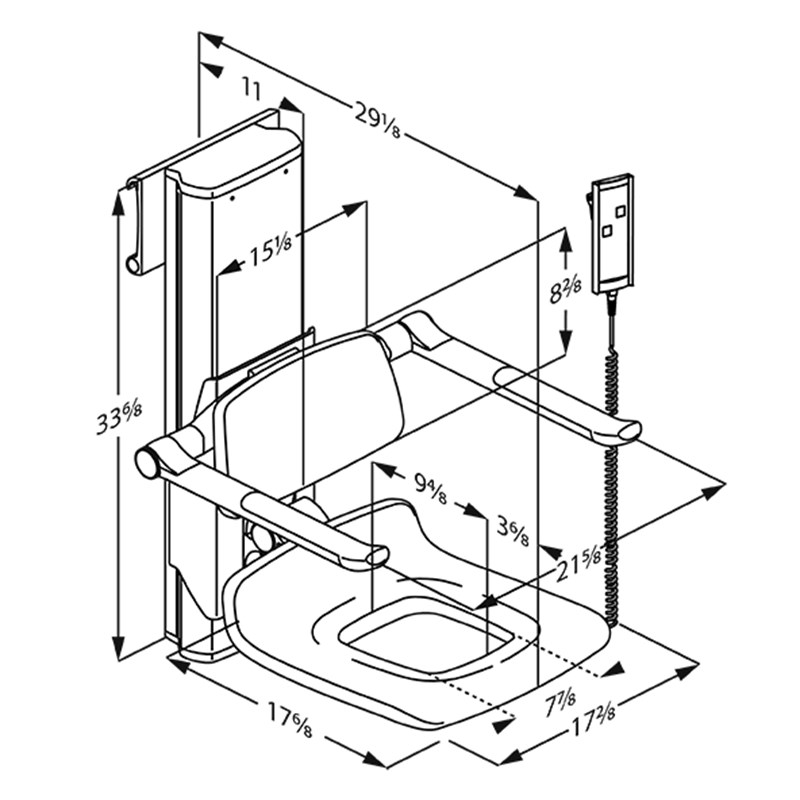

      Dimensioned drawing, inch
      Dimensioned drawing, inch
      Adjustability
      Vertical and horizontal adjustable
      Adjustment height (inch)
      19.7
      Mains connection, V~
      120
      Frequency, Hz
      50/60
      IP rating
      IPX6
      Speed, downwards, inch/s
      0.39
      Speed upwards, inch/s
      0.39
      Maximum user weight (MUM), lbs
      331
      Power consumption (maximum load), W
      60
      Power consumption (standby), W
      0.5
      Noise level, dB
      48
      Actuator (motor)
      LA40 (Linak) 6000N, IPX6
      Control box
      SMPS14 (Linak) IPX6
      Wired remote control
      HB3 (Linak) IP66
      Declaration of conformity
      This product is solely intended for the US and Canada, and has no EU declaration of conformity.
      Colour
      Anthracite gray
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The shower seat is made of polyurethane (PU) foam with a plywood core and this is covered with a moulded coated surface that is protected using a clear PU lacquer. The backrest is made of polyurethane (PU) foam protected using a clear PU lacquer. The arms are primarily constructed of 3/8" anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and inforporating a glass-reinforced nylon core. The hinge arm is also made of soft SEBS. Internal components and fasteners are primarily made of stainless steel. The hinge barrel is capped with ABS.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Erisan OXY+
      Tvättsprit 70%
      CaviCide surface disinfectant decontaminant cleaner
      Rodalon Desinfektionsspray
      Terralin protect (SCHÃœLKE+)
      Dismonzon Plus (BODE Chemie GmbH)

      NON-DISINFECTANTS:
      Wetrok Caledor (Wetrok)
      Petrosol Citro (Büfa)

      Important: Polyurethane surfaces of PLUS shower seats and PLUS backrests contains an antibacterial surface, which will be compromised if cleaned with anything other than soap and water.

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.
      Sales unit
      pcs
      Net weight, lbs
      70.6
      Gross weight, lbs
      77.2
      Weight per crate, lbs
      77.2
      Crates per pallet
      1
      Qty per crate
      1
      Qty per pallet
      1

      Mounting

      Mounting
      For fitting to horizontal PLUS wall track (not included).

      Downloads

      Mounting instructionsTechnical datasheet3D cad model (AutoCAD)BIM object (Revit)Quick guideExport certificateUser guide (OMM)
