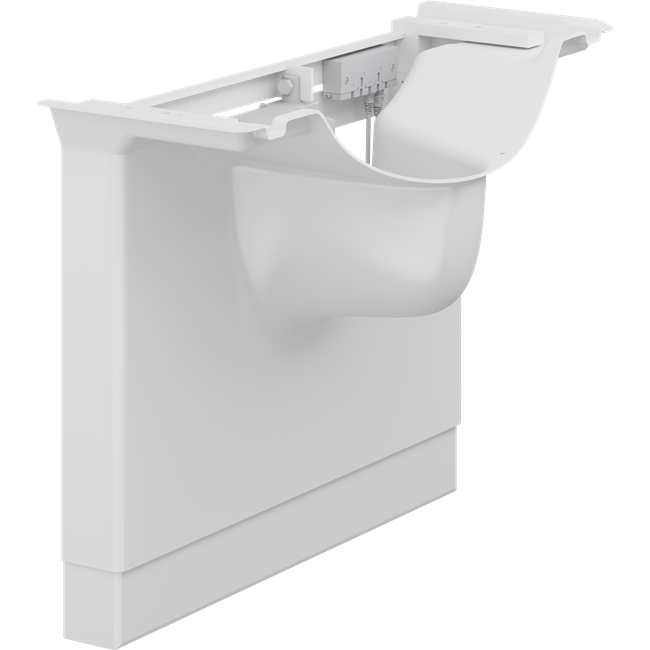

MATRIX powered basin unit, height adjustable

MATRIX powered basin unit, height adjustable
For MATRIX SQUARE wash basins R2170 and R2172

Colour

White
Product no.: R4870000 - EAN: 5708590349138
Suitable for the ergonomic MATRIX SQUARE wash basins Intuitive adjustment with up/down buttons Concealed plumbing cover - hygienic

MATRIX powered basin unit, height adjustableMATRIX powered basin unit, height adjustableMATRIX powered basin unit, height adjustableMATRIX powered basin unit, height adjustable

Specifications

ProductCodes
EAN 5708590349138
ETIM EC010187
GMDN 63054
HMI 105951
NRF 6132448
UNSPSC 42211600
VVS 654022500
Item number
R4870000
Product group
Wash basin brackets
Product
MATRIX powered basin unit, height adjustable
Product description
MATRIX brackets are tailor made for MATRIX wash basins.
They are available in electrically and manually height adjustable and sideways adjustable versions, as well as fixed versions, all of them with a hygienic cover to conceal the plumbing installations.
Description
MATRIX wash basin bracket, wall-mounted, with white installation cover and incl. concealed feed and waste system.
Electrically height adjustable 200 mm with operating buttons in front edge of wash basin.
Incl. fixing bolts for wash basin (Can only be used with MATRIX SQUARE wash basins, R2170/R2172).
Materials: Powder-coated stainless steel and PMMA.
Excl. mounting kit.
Mounting instructions
Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
Colour
White
Intended use
A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Materials
Powder-coated stainless steel and PMMA.
Product capacity
Maximum user weight (MUM): 146 kg.
Maximum load (SWL): 150 kg.
Suitable for wash basins that weigh 30/40 kg.
When the wash basin is loaded with 150 kg, each wall fastener will be carrying 60 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin brackets are intended to carry a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 40 kg, it is – according to ISO 17966 – the equivalent of a user weighing 146 kg leaning on the front edge of the wash basin.

Dimensioned drawing, mm
Adjustability
Height adjustable
Adjustment height
200 mm
Mains connection (V)
230 V~
Hz
50/60 Hz
IP
IPX6
Power consumption (maximum load)
70 W
Power consumption (standby)
1.5 W
Speed upwards
11.75 mm/s
Speed, downwards
11.75 mm/s
Noise level
48 dB
Actuator (motor)
LA31 Careline (Linak), 1500N, IPX6
Control box
CB9 Careline (Linak), IPX6
Maximum user weight (MUM)
146 kg
Safe working load (SWL)
150 kg
Sales unit
pcs
Weight
19.26 kg
Gross weight
21.56 kg
Weight per crate
21.56 kg
Crates per pallet
6
Qty per crate
1
Qty per pallet
6
Cleaning

VALUE & MATRIX wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Declaration of conformity
CE MDR-MASK-RoHS This product is in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS.
WEEE
Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
