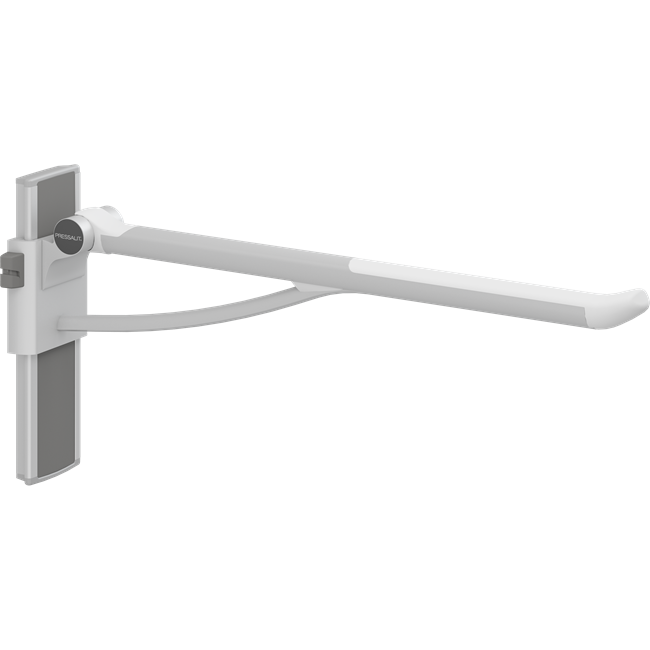

PLUS support arm with integrated counter-balance, 850 mm, left hand operated

PLUS support arm with integrated counter-balance, 850 mm, left hand operated
PLUS support arm with integrated counter-balance, 850 mm, left hand operated
PLUS support arm with integrated counter-balance, 850 mm, left hand operated
PLUS support arm with integrated counter-balance, 850 mm, left hand operated
Projection: 880 mm.
Height adjustable.
Removable and foldable
Product no.: R370385000 - EAN: 5708590368092
Previous version: R3175, RF175
Vertical adjustment to help stand/sit and side transfers for different users Tool free simple adjustment Products can be moved to other areas in bathroom(s)

Highlights

PLUS SUPPORT ARMS – Red Dot Product Design Award winner
Ergonomic design and integrated counter-balance function makes the support arms a user-friendly and safe choice.

The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.

PLUS support arm with integrated counter-balance, 850 mm, left hand operated

PLUS support arm with integrated counter-balance, 850 mm, left hand operatedPLUS support arm with integrated counter-balance, 850 mm, left hand operatedPLUS support arm with integrated counter-balance, 850 mm, left hand operatedPLUS support arm with integrated counter-balance, 850 mm, left hand operated

Specifications

ProductCodes
EAN 5708590368092
ETIM EC010078
FDA ILS/D135866
GMDN 35585
HMI 125881
NRF 6191084
RSK 8487442
UNSPSC 42211612
VVS 615875200
Item number
R370385000
Previous version
R3175, RF175
Product group
Support arms and arm supports
Product
PLUS support arm with integrated counter-balance, 850 mm, left hand operated
Product description
All PLUS support arms come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
Suitable for use with toilet pans projecting 700 mm or floor standing toilets.
Replaces discontinued models R3175 og RF175.
Description
PLUS support arm, counter-balanced. Projection 880 mm, ergonomically shaped to provide a clear sense of where the support arm ends. Left hand operated. Height adjustable by 240 mm without using tools. Detachable and foldable. Anthracite cover plate for vertical wall track.
Materials: The arms are constructed of 10-micrometre anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
Excl. mounting kit.
Mounting instructions
Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
Colour
White
Intended use
The support arm is used as a suport for a user, when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Designer
Rasmus Thygesen
Design year
2011
Materials
The arms are primarily constructed in 10-micrometre anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
The hinge arm is also made of soft SEBS.
Internal components and fasteners are primarily made of stainless steel.
The hinge barrel is capped with ABS polymer.
Ergonomy
The oval shape gives an easy and comfortable surface to lean and push against.

The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.

Soft and slip-resistant material that has a warm feel.

Features
Folds against the wall.

The underside is shaped for the mounting of various accessories.

Product capacity
Maximum load: 150 kg.
When the support arm is loaded with 150 kg, each wall fastener in the vertical wall track is loaded with 50 kg.

PLUS support arms have been tested statically with 700 kg (close to the wall), 425 kg (in the middle) and 225 kg (the outermost point).

Dimensioned drawing, mm
Adjustability
Height adjustable
Adjustment height
240 mm
Maximum user weight (MUM)
150 kg
Safe working load (SWL)
150 kg
Sales unit
pcs
Weight
4.35 kg
Carton size
1060x245x275 mm
Gross weight
6.036 kg
Weight per crate
6.036 kg
Crates per pallet
16
Qty per crate
1
Qty per pallet
16
Cleaning

PLUS support arms
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Oxyplus-acid 2% (Diversey)
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.

Declaration of conformity
CE MDR This product is in compliance with all relevant requirements of: - Regulation (EU) 2017/745 on medical devices.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Intended use
The support arm is used as a support for sitting down or getting up from a toilet, or for sideways transfer from a wheelchair.
Operating environment
For indoor use in a wet environment, such as a bathroom or a washroom, in private homes, nursing homes and hospitals.
For institutional use, the expected life time is 10 years.
Life cycle test performed according to ISO 17966:2016.

For maintenance, please refer to user guide, which is enclosed with the product, and which can also be found on the website under "Downloads".
