PLUS fold down grab bar with integrated counter-balance, 33.5'', right hand operated

Product number: R372485000

EAN: 5708590368603

Previous versions: R3686

Only for use with TL3/TL4 toilet lifter.
Projection: 38''. Height adjustable. Removable and foldable

Related products

Description

Product description

    • Choice of colours
    • Warm slip resistant surface
    • Ergonomic grip for weak hands

  • All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.

  • PLUS fold down grab bar, counter-balanced, 33.5''.
    Height adjustable 5.9". Foldable. Right handed.
    Only for use with TL3/TL4 toilet lifter.
    Ergonomically shaped to provide a clear sense of where the support arm ends.
    Materials: The arms are constructed of 10-micrometre anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core.
    Excl. mounting kit.

  • Awards

    FOLD DOWN GRAB BARS – Red Dot Product Design Award winner
    Ergonomic design and integrated counter-balance function makes the grab bars a user-friendly and safe choice.

    The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
    The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.
Intended use
The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
Features
The underside is shaped for the mounting of various accessories.

Ergonomy
The oval shape gives an easy and comfortable surface to lean and push against.

The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.

Soft and slip-resistant material that has a warm feel.

Product capacity
Maximum load: 330 lbs.
Warranty
Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

Specifications

Product codes

  • EAN

    5708590368603

  • VVS

    615877500

  • ETIM

    EC010078

  • NRF

    6191134

  • HMI

    138170

  • GMDN

    35585

  • UNSPSC

    42211612
Previous version
R3686
Product group
Fold down grab bars and arm supports

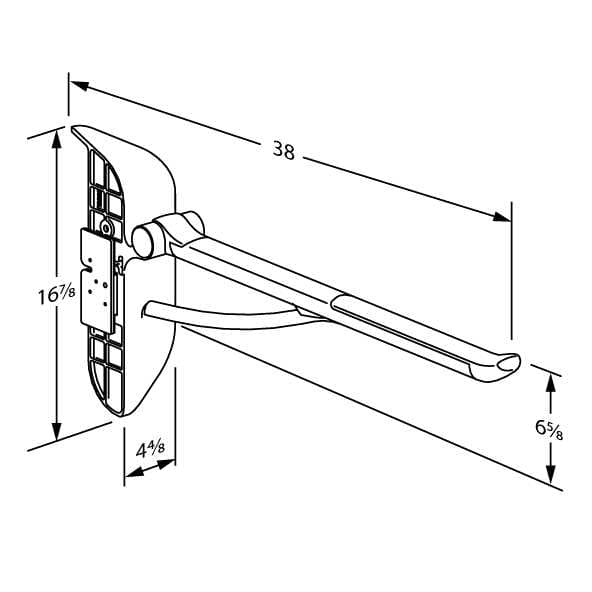

Dimensioned drawing, inch
Dimensioned drawing, inch
Adjustability
Height adjustable
Adjustment height (inch)
5.91
Maximum user weight (MUM), lbs
331
Safe working load (SWL), lbs
331
CE MDR
Declaration of conformity
This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices.
Colour
White
Materials
The grab bars are primarily constructed from 3/8" anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
The hinge arm is also made of soft SEBS.
Internal components and fasteners are primarily made of stainless steel.
The hinge barrel is capped with ABS polymer.
Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Oxyplus-acid 2% (Diversey)
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

Sales unit
pcs
Net weight, lbs
11.6
Gross weight, lbs
14.1
Weight per crate, lbs
14.1
Crates per pallet
12
Qty per crate
1
Qty per pallet
12

Mounting

Mounting
Mounting material for installation with toilet lifter is included.

Downloads

BIM object (Revit)Export certificateMounting instructionsEU declaration of conformityTechnical datasheet
