MCT 3 change trolley, electrically height adjustable
Product number: R9652719000
EAN: 5708590389967
Lying surface: 700 x 1900 mm
Outer measurements: 750 x 1900 mm
Outer measurements: 750 x 1900 mm
Description
- Product description
- Easy transfer, due to low start height adjustment
- Accessible from all sides for improved work environment
- Drop down rails with one hand operation
- Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user. - MCT 3 change trolley, 700 x 1900 mm, two fold-down sides.
Electrically height adjustable with wired remote control.
500 mm lifting range, from 450 to 950 mm.
Mattress to be ordered separately.
Note: The MCT 3 must be plugged into a main power supply to use the height adjustment function.
- Intended use
- This product is intended for changing a person who is unable to stand or sit. The person is lying horizontally on the change trolley.
Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual. - Features
- • The trolley can be moved from room to room for easy transport and multiple users.
• Intuitive, easy-to-use drop down rails with one hand operation. - Ergonomy
- • The ergonomically designed safety rails have a practical lower central section, which provides better access and work environment for the carer while transferring, changing and dressing the user.
• One hand operated safety rails allows the carer to maintain eye contact as well as physical contact with the user during the whole process, the foldable safety rails also provide easy access from all four sides of the table.
• The cut-out grips in the safety rails enable users to assist when being turned, which motivates physical training.
• Easy to clean, smooth contact surfaces which do not collect dirt and bacteria. - ProductAttributes.ProductIntendedUse
- MOBILE CHANGE TROLLEYS
- Product capacity
- Maximum user weight (MUM): 200 kg.
Maximum load (SWL): 205 kg.
This product has been tested statically with a load of 512,5 kg as the IEC 60601-1 standard requires testing with safety factor 2.5. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date. NOTICE If the product is placed in an atmosphere heavy in salt or chloride, the warranty will be reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the products components and will cause a decrease in the life expectancy of the product.
Specifications
- Product codes
EAN
5708590389967ETIM
EC010100GMDN
43494UNSPSC
42192005
- Product group
- Changing tables
- Product series
- MCT 3

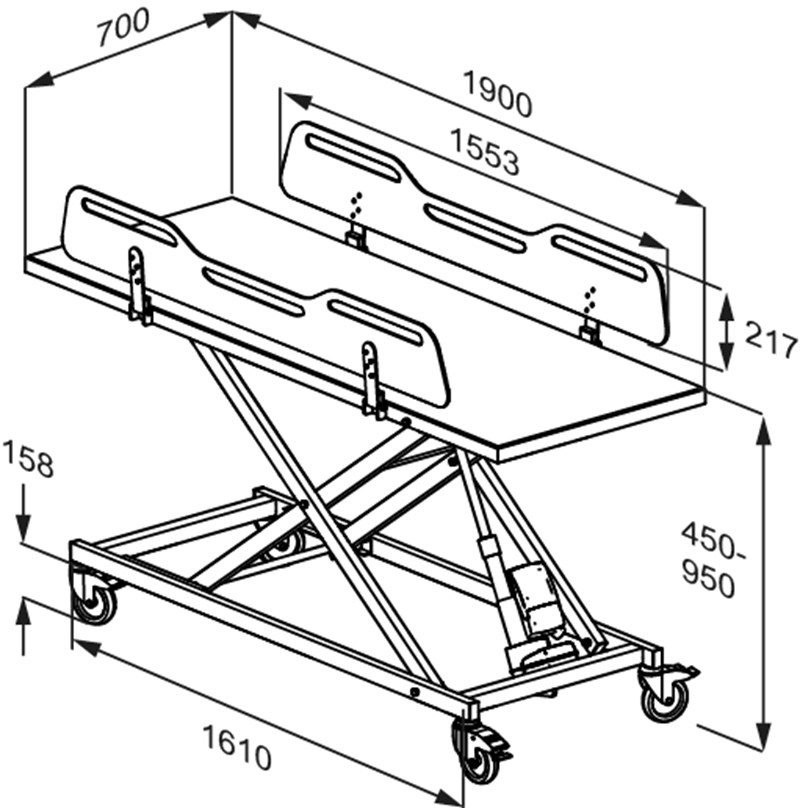

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 500
- Mains connection, V~
- 230
- Frequency, Hz
- 50/60
- IP rating
- IPX6
- Speed, downwards, mm/s
- 17
- Speed upwards, mm/s
- 17
- Maximum user weight (MUM), kg
- 200
- Safe working load (SWL), kg
- 205
- Power consumption (maximum load), W
- 280
- Power consumption (standby), W
- 0.5
- Noise level, dB
- 50
- Actuator (motor)
- LA40 (Linak) IPX6
- Control box
- CA30 (Linak) IPX6
- Wired remote control
- HB30 (Linak) IPX6
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 - WEEE
- Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
- Colour
- White
- Designer
- Pressalit
- Design year
- 2023
- Materials
- Plastics, Compact Density Fiberboards (CDF) and powder-lacquered steel.
- Cleaning
MCT 3, MCT 5
The product is to be cleaned with a damp cloth that has been wrung out in a mild soap mixture, such as universal cleaning solution. After cleaning, it is essential to wipe the product with a dry, soft cloth. This step is crucial to prevent the materials from discoloration. Additionally, it helps prevent any potential degradation of the surface paint,
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Accel PREVention Wipes Lingettes
OxiGenesis from ENVIROX
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 76
- Gross weight, kg
- 108
- Weight per crate, kg
- 108
- Crates per pallet
- 2
- Qty per crate
- 1
- Qty per pallet
- 2
