    MATRIX powered basin unit, height adjustable

    Product number: R4827000

    EAN: 5708590349695

    For MATRIX MEDIUM wash basins R2122 and R2123
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    Pressalit Limited

    T 0118 923 2696

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Required products

      Related products

      Description

      Product description

        • Suitable for the ergonomic MATRIX MEDIUM wash basins
        • Concealed plumbing cover - hygienic
        • Height adjustable versions feature intuitive adjustment with either up/down buttons or crank handle

      • MATRIX brackets are tailor made for MATRIX wash basins.
        They are available in electrically and manually height adjustable and sideways adjustable versions, as well as fixed versions, all of them with a hygienic cover to conceal the plumbing installations.

      • MATRIX wash basin bracket, wall-mounted, with white installation cover and incl. concealed flexible feed/waste system and shallow trap.
        Electrically height adjustable 200 mm with operating buttons in front edge of wash basin.
        Incl. fixing bolts for wash basin (Can only be used with MATRIX MEDIUM wash basins, R2122/R2123).
        Materials: Powder-coated stainless steel and PMMA.
        Excl. mounting kit.
      Intended use
      A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
      Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
      ProductAttributes.ProductIntendedUse
      WASH BASIN BRACKETS
      Product capacity
      Maximum user weight (MUM): 167 kg.
      Maximum load (SWL): 150 kg.
      Suitable for wash basins weighing no more than 25 kg.
      When the wash basin is loaded with 150 kg, each wall fastener will be carrying 60 kg.
      Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
      Neither wash basin nor wash basin bracket are intended to carry the full body weight of a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 25 kg, it is – according to ISO 17966 – the equivalent of a user weighing 167 kg leaning on the front edge of the wash basin.
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590349695

      • ETIM

        EC010187

      • GMDN

        63054

      • FDA

        ILW/D142473

      • UNSPSC

        42211600
      Product group
      Wash basin brackets

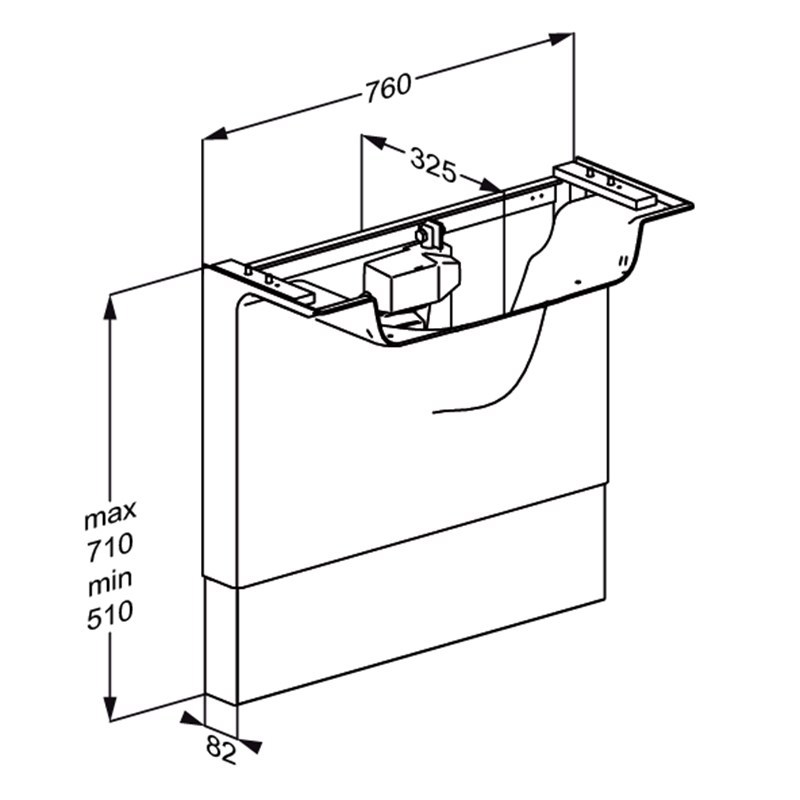

      Dimensioned drawing, mm
      Dimensioned drawing, mm
      Adjustability
      Height adjustable
      Adjustment height, mm
      200
      Mains connection, V~
      230
      Frequency, Hz
      50/60
      IP rating
      IPX6
      Speed, downwards, mm/s
      11.75
      Speed upwards, mm/s
      11.75
      Maximum user weight (MUM), kg
      150
      Safe working load (SWL), kg
      167
      Power consumption (maximum load), W
      70
      Power consumption (standby), W
      1.5
      Noise level, dB
      48
      Actuator (motor)
      LA31 Careline (Linak), 1500N, IPX6
      Control box
      CA30 Careline (Linak), IPX6
      Declaration of conformity
      This product is produced in compliance with all relevant requirements of:
      - Medical Device Regulation (MDR) 2002 on medical devices
      - Supply of Machinery (Safety) Regulations 2008
      - Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
      Colour
      White
      Materials
      Powder-coated stainless steel and PMMA.
      Cleaning

      VALUE & MATRIX wash basin brackets
      The product is to be cleaned with hot water or a mild soapy cleaning agent.
      Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
      For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      Sales unit
      pcs
      Net weight, kg
      19.3
      Gross weight, kg
      21.6
      Weight per crate, kg
      21.6
      Crates per pallet
      6
      Qty per crate
      1
      Qty per pallet
      6

      Mounting

      Mounting
      Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
      Mounting

      Please accept all cookies to watch this video. Click here to change cookie consent.

      Downloads

      Mounting instructionsApprovalTechnical datasheetProduct matrixWRAS certificate3D cad model (AutoCAD)EU declaration of conformityBIM object (Revit)KIWA certificateLoad bearing installation recommendationUKCA declaration of conformityExport certificateUser guide (OMM)
