MATRIX manual basin unit, right-facing, height and sideways adjustable
Product number: R484519000
EAN: 5708590381039
For MATRIX ANGLE DEEP wash basins R2140 and R2141
Description
- Product description
- Suitable for MATRIX ANGLE DEEP wash basins
- Concealed plumbing cover - hygienic
- MATRIX brackets are tailor made for MATRIX wash basins.
They are available in electrically and manually height adjustable and sideways adjustable versions, as well as fixed versions, all of them with a hygienic cover to conceal the plumbing installations. - MATRIX ANGLE DEEP Wash basin bracket, right, wall-mounted, with white installation cover, incl. feed and waste system and shallow trap (R2058).
Manually height adjustable with crank handle 300 mm, and manually sideways adjustable 500 mm.
Incl. fixing bolts for wash basin (Can only be used with MATRIX ANGLE DEEP wash basins, R2140/R2141).
Materials: Powder-coated stainless steel, PMMA, ABS and polystyren.
Excl. mounting kit.
- Intended use
- A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum user weight 160 kg.
Maximum load (SWL): 150 kg.
Suitable for wash basins weighing no more than 30 kg.
When the wash basin is loaded with 150 kg, each wall fastener will be carrying 60 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin bracket are intended to carry the full body weight of a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 30 kg, it is – according to ISO 17966 – the equivalent of a user weighing 160 kg leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590381039ETIM
EC010187GMDN
63052UNSPSC
42211600
- Product group
- Wash basin brackets

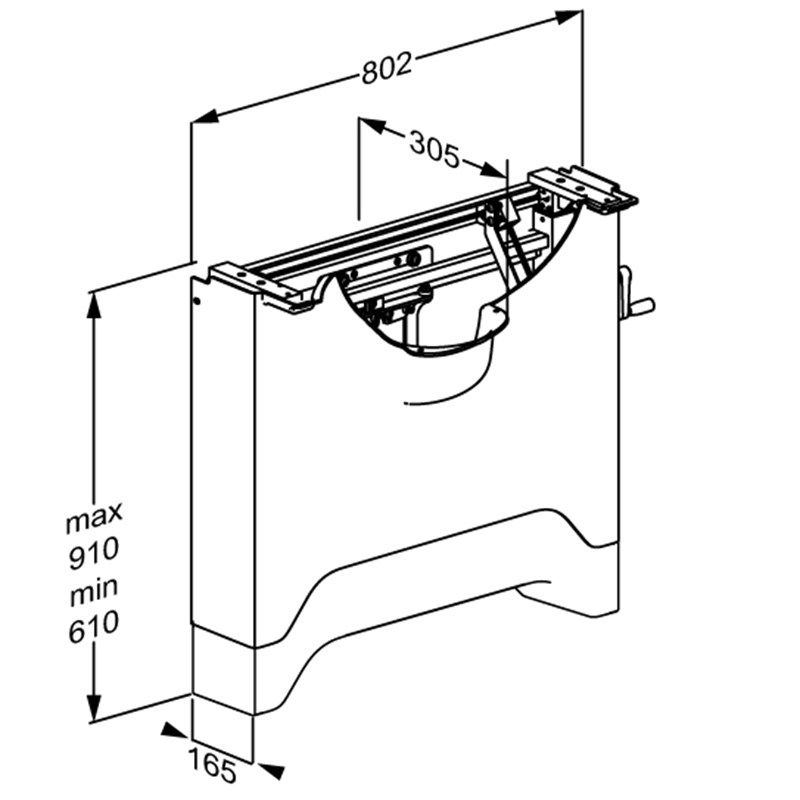

- Dimensioned drawing, mm
- Adjustability
- Height and sideways adjustable
- Adjustment height, mm
- 300
- Maximum user weight (MUM), kg
- 150
- Safe working load (SWL), kg
- 160
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008 - Colour
- White
- Materials
- Powder-coated stainless steel, PMMA, ABS and polystyren.
- Cleaning
VALUE & MATRIX wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 22.4
- Gross weight, kg
- 25.5
- Weight per crate, kg
- 25.5
- Crates per pallet
- 3
- Qty per crate
- 1
- Qty per pallet
- 3
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
- Mounting
