MATRIX fixed basin unit
Product number: R4807000
EAN: 5708590367446
For MATRIX MEDIUM wash basins R2120 and R2121
Required products
Description
- Product description
- Suitable for the ergonomic MATRIX MEDIUM wash basins
- Concealed plumbing cover - hygienic
- Height adjustable versions feature intuitive adjustment with either up/down buttons or crank handle
- MATRIX brackets are tailor made for MATRIX wash basins.
They are available in electrically and manually height adjustable and sideways adjustable versions, as well as fixed versions, all of them with a hygienic cover to conceal the plumbing installations. - MATRIX wash basin bracket, wall-mounted, fixed height, with white installation cover and incl. flexible feed/waste system.
Incl. fixing bolts for wash basin (Can only be used with MATRIX MEDIUM wash basins, R2120/R2121).
Materials: Powder-coated steel and polystyren.
Excl. mounting kit.
- Intended use
- A wash basin bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum user weight (MUM): 167 kg.
Maximum load (SWL): 150 kg.
Suitable for wash basins weighing no more than 25 kg.
When the wash basin is loaded with 150 kg, each wall fastener will be carrying 60 kg.
Wash basin brackets need to be able to carry the weight of the wash basin, as well as support the weight of the person who is leaning against the wash basin or who is using the wash basin to rise from seated position.
Neither wash basin nor wash basin bracket are intended to carry the full body weight of a person, and the test methods applicable to wash basin brackets reflect this: ISO 17966 prescribes a static test on the front edge of the wash basin at 75% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 150 kg and the wash basin weighs 25 kg, it is – according to ISO 17966 – the equivalent of a user weighing 167 kg leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590367446ETIM
EC010984GMDN
63051UNSPSC
42211600
- Product group
- Wash basin brackets

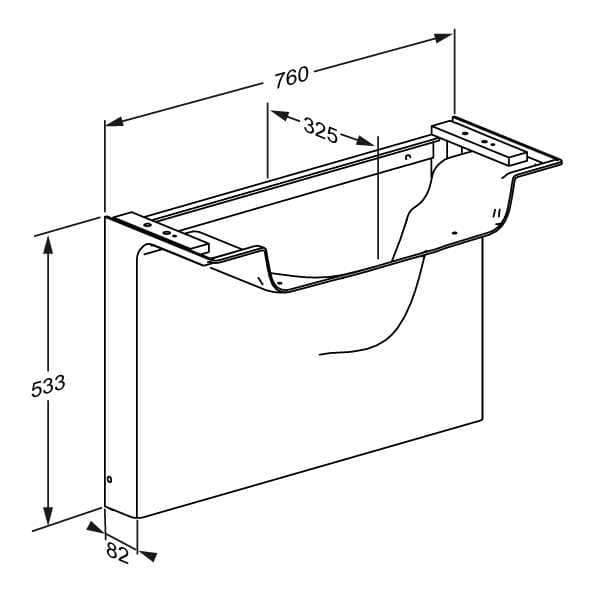

- Dimensioned drawing, mm
- Adjustability
- Fixed mounting
- Maximum user weight (MUM), kg
- 150
- Safe working load (SWL), kg
- 167
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Medical Device Regulation (MDR) 2002 on medical devices - Colour
- White
- Materials
- Powder-coated stainless steel and PMMA.
- Cleaning
VALUE & MATRIX wash basin brackets
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 7.3
- Gross weight, kg
- 9
- Weight per crate, kg
- 9
- Crates per pallet
- 6
- Qty per crate
- 1
- Qty per pallet
- 6
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
