SELECT TL4 toilet lifter, manual, for wall outlet
Product number: R9024000
EAN: 5708590372990
Manually height adjustable 8'' with crank handle
Description
- Product description
- SELECT toilet lifts are available in several models and colors for both wall outlet and floor outlet. They are available in electrically or manually height-adjustable versions, with or without side profiles and for standard toilet bowls and shower toilets. All developed with a focus on hygiene and easy cleaning.
- SELECT TL4 toilet lifter, for wall outlet.
Incl. cUPC-approved cistern with dual flushing system preset at 0.8/1.6 gallons (can be changed to 0.5/1.1 gallons).
Manually height adjustable 8'' with crank handle.
Suitable for douche toilet or douche toilet seat. Toilet pan, toilet seat and fold down grab bars to be ordered separately.
Materials: Stainless steel and PMMA/ABS.
Excl. wall mounting kit.
- Intended use
- Toilet lifters ensure optimum ergonomics at a toilet, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - ProductAttributes.ProductIntendedUse
- TOILET LIFTERS
- Product capacity
- Maximum user weight: 440 lbs.
Maximum load: 518 lbs. (user weight + accessories).
When the toilet lifter is loaded with 518 lbs, each wall fastener is loaded with 143 lbs.
The toilet lifter has been tested statically with 1320 lbs, which is a requirement according to the applied assistive products standards. Please note that most toilets compatible with this lifter have been tested up to 880 lbs. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590372990VVS
617989100ETIM
EC010062NRF
6191184HMI
138247GMDN
63053FDA
IKX/D319729UNSPSC
42211615
- Product group
- Toilet lifters

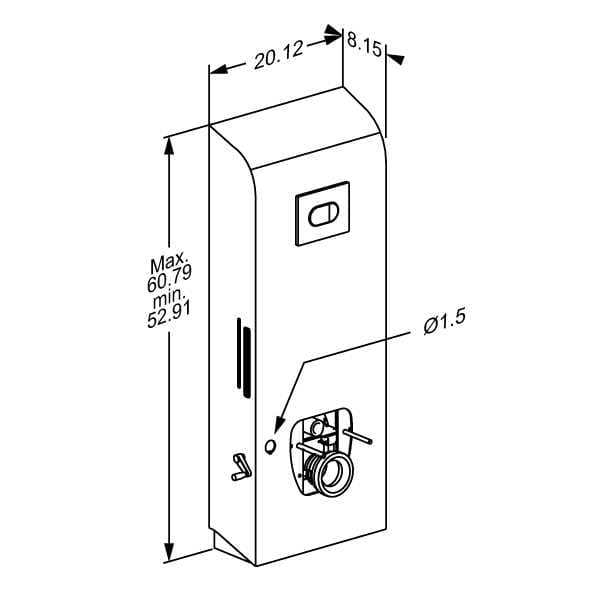

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 7.88
- Maximum user weight (MUM), lbs
- 441
- Safe working load (SWL), lbs
- 518
- Colour
- White
- Materials
- The toilet lifter is constructed of stainless steel, the cover fairing is made of PMMA/ABS plastics.
- Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use corrosive or abrasive cleaners as it may result in the surface being damaged.
For surface disinfection, chlorine-based disinfectants may be used according to the product specification and safety precautions for these products.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, lbs
- 115.1
- Gross weight, lbs
- 122.4
- Weight per crate, lbs
- 122.4
- Crates per pallet
- 6
- Qty per crate
- 1
- Qty per pallet
- 6
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
- Mounting
