SELECT TL1 toilet lifter, for wall outlet
Product number: R8042112
EAN: 5708590339559
Manually height adjustable 11.8" (16.7" - 28.5") with crank handle.
Description
- Product description
- Different heights to suit different users/transfer techniques
- Manual or powered adjustment to suit different requirements - frequent/periodic adjustment
- Allows a range of WC's to be fitted for a bespoke solution
- The aim is to make it as easy as possible for users to get on and off the toilet during daily use. The aim is also to make the carer’s work easier, and make the process comfortable and dignified for the user.
Please contact Pressalit for more information about compatible toilet bowls for Pressalit SELECT toilet lifters - SELECT TL1 toilet lifter, 11.8" manually height adjustable, with crank handle.
Incl. cistern with dual flushing system preset at 3/6 liters.
Toilet pan and toilet seat to be ordered separately.
For wall-outlet.
Materials: Anodised aluminium and polystyrene (PS).
Excl. mounting kit.
- Intended use
- Toilet lifters ensure optimum ergonomics at a toilet, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- The toilet can be raised and lowered using the crank handle. The crank handle can be positioned on either side of the lifter – without the need for tools.
It is possible to adjust the height of the toilet lifter using an electric drill as an alternative to the crank handle.
The toilet can be height adjusted 11.8", from 16.7" to 28.5", in order to accomodate mobility aids such as a wheelchair. - Ergonomy
- Toilet lifters are available in three different colors to match many bathroom decors. Also helping to create a soothing color palette in the room. A minimum of grooves, slots and holes makes cleaning fast and effective, and also results in an attractive and exclusive design.
- ProductAttributes.ProductIntendedUse
- TOILET LIFTERS
- Product capacity
- Maximum user weight: 440 lbs.
Maximum load: 518 lbs. (user weight + accessories).
When the toilet lifter is loaded with 518 lbs, each wall fastener is loaded with 143 lbs.
The toilet lifter has been tested statically with 1320 lbs, which is a requirement according to the applied assistive products standards. Please note that most toilets compatible with this lifter have been tested up to 880 lbs. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590339559ETIM
EC010062GMDN
63053FDA
IKX/D319729UNSPSC
42211615
- Product group
- Toilet lifters

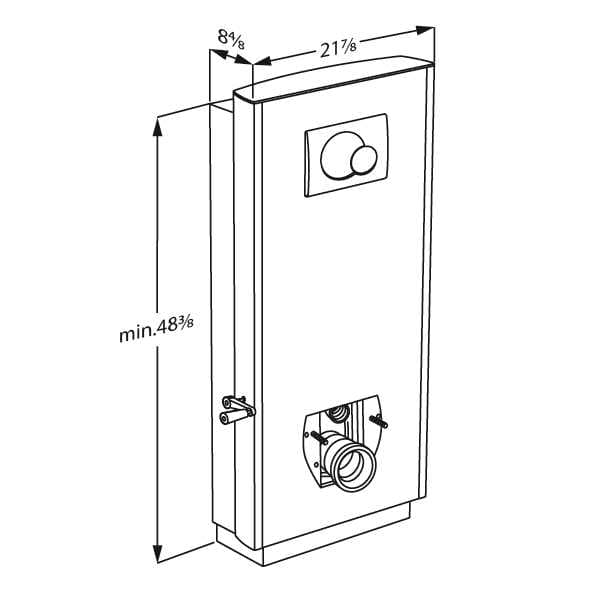

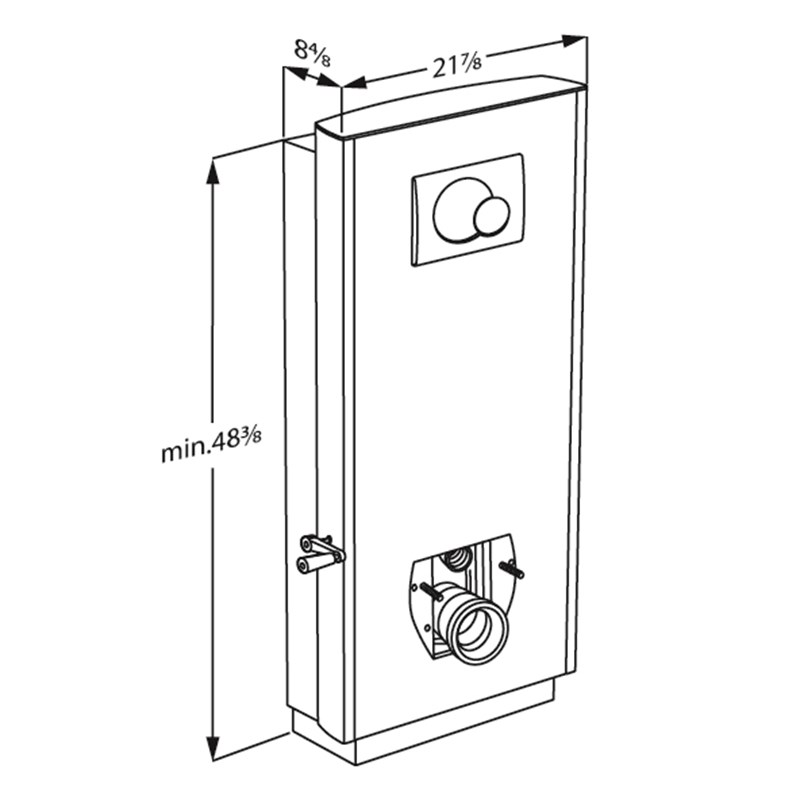

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 11.82
- Maximum user weight (MUM), lbs
- 441
- Safe working load (SWL), lbs
- 518
- Declaration of conformity
- This product is solely intended for the US and Canada, and has no EU declaration of conformity.
- Colour
- Anthracite gray
- Designer
- Rasmus Thygesen
- Design year
- 2013
- Materials
- Anodized aluminium.
The front plates are made of polystyrene (PS).
Top plate in compact laminate.
Flammability-tested (ISO 8191-1 and ISO 8191-2). Test report available. - Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 115.3
- Gross weight, lbs
- 121.9
- Weight per crate, lbs
- 121.9
- Crates per pallet
- 1
- Qty per crate
- 1
- Qty per pallet
- 1
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
- Mounting
