    PLUS wall track, 15.7'', right-grooved, for vertical mounting

    Product number: R9874112

    EAN: 5708590365961

    Previous versions: R9864, R9900, R9914

    For height adjustable, right-hand operated fold down grab bars, folding seats and shower seats without back- and armrests
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Related products

      Description

      Product description

        • Products can be removed for deployment eslewhere
        • Adjust height - standing sitting transfer for e.g. - different user requirements
        • Elimination for need to adapt bathroom to different user requirements - future proof arrangement

      • Below a selection of products for fitting to the wall track.

      • PLUS wall track, 15.7'', right-grooved, for vertical mounting.
        For height adjustable folding seats and for height adjustable, right-hand operated fold down grab bars.
        The cover plate hides bolts and wires and facilitates cleaning.
        Materials: Aluminium and polystyrene.
        Excl. fixing kit.
      Intended use
      The wall tracks are used for mounting of PLUS support arms, PLUS shower seats and PLUS wash basin brackets, and allows sideways adjustment of these products.
      Expected service life of the wall tracks are 10 years, provided that cleaning and maintenance are carried out as described in the instructions for use (OMM).
      Features
      The front cover plate conceals mounting bolts and any cables.
      Ergonomy
      The vertical track enables height adjustment of the different products. If combined with the horizontal track, the available space in the bathroom can be utilized optimally. In environments with multiple users, the vertical track makes it possible to adjust the different products to individual user heights.
      ProductAttributes.ProductIntendedUse
      WALL TRACKS
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590365961

      • VVS

        615843104

      • ETIM

        EC010050

      • NRF

        7501073

      • HMI

        124108
      Previous version
      R9864, R9900, R9914
      Product group
      Wall tracks

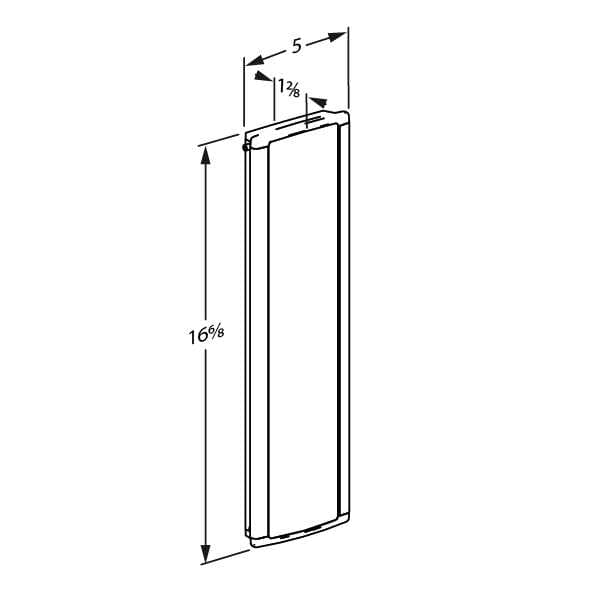

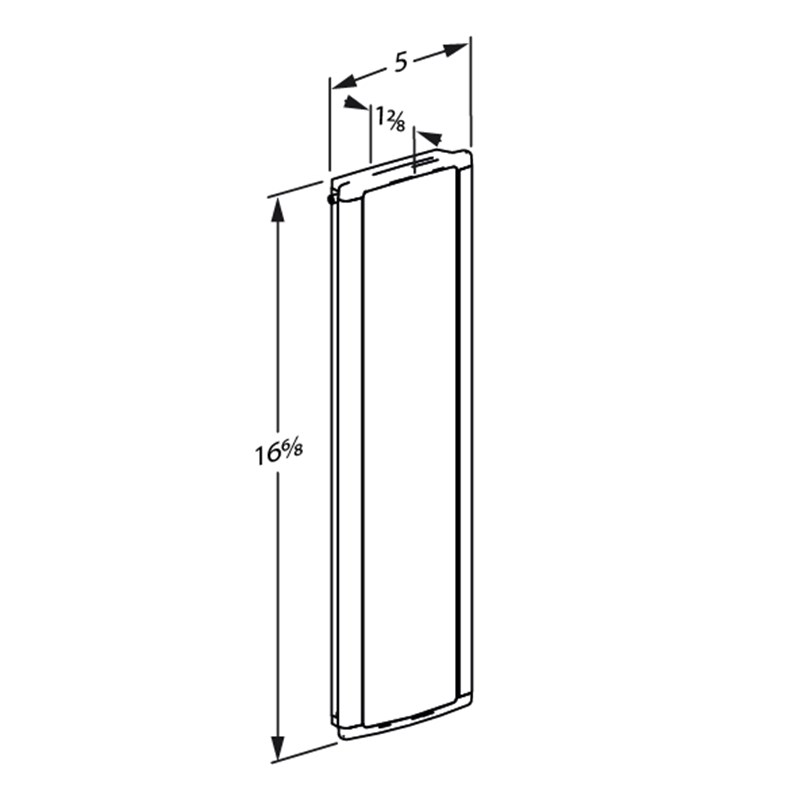

      Dimensioned drawing, inch
      Dimensioned drawing, inch
      Adjustability
      Fixed mounting
      Declaration of conformity
      This product is produced in compliance with all relevant requirements of:
      - Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
      This product is considered to be an accessory for a medical device, as it is not itself a medical device, but is intended to be used together with several particular medical devices to specifically enable the medical devices to be used in accordance with their intended purposes.
      Colour
      Anthracite gray
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The wall track is primarily made of 10-micrometer anodized aluminium. The cover plate is made of polystyrene and the ends of the track are capped with ABS polymer.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      CaviCide

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

      Sales unit
      pcs
      Net weight, lbs
      2.2
      Gross weight, lbs
      2.6
      Weight per crate, lbs
      2.6
      Crates per pallet
      150
      Qty per crate
      1
      Qty per pallet
      150

      Mounting

      Mounting
      Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.

      Downloads

      Technical datasheetMounting instructionsProduct matrix3D cad model (AutoCAD)Wall reinforcement guideExport certificateUser guide (OMM)
