PLUS wall track, 118.1''
Product number: R9830112
EAN: 5708590305899
Previous versions: R9909
For horizontal mounting
Description
- Product description
- Track allows movement of products - push within reach or out of the way for different user situations
- Space efficient - products can be moved into dead space
- Elimination for need to adapt bathroom to different user requirements - future proof arrangement
- PLUS wall tracks are used for mounting of support arms, shower seats and sink brackets, and allows sideways adjustment of these products.
See below a selection of products for fitting to the wall track. - PLUS wall track, 118.1", for horizontal mounting.
The cover plate hides bolts, wires and simplifies cleaning.
Materials: Aluminium and polystyrene.
Excl. mounting kit.
- Intended use
- The wall tracks are used for mounting of PLUS support arms, PLUS shower seats and PLUS wash basin brackets, and allows sideways adjustment of these products.
Expected service life of the wall tracks are 10 years, provided that cleaning and maintenance are carried out as described in the instructions for use (OMM). - Features
- The horizontal track makes it possible to shift the product along the wall to generate extra space as needed. The front cover plate conceals mounting bolts and any cables.
- Ergonomy
- The track distributes the weight of the individual bathroom product, for example a sink bracket, along its entire length. The products can be adjusted and locked on to the track with intuitive locking functions.
- Warranty
- A 5-year warranty is provided for your product from the date of purchase.
The warranty covers material or manufacturing defects. The warranty does not cover defects or damage resulting from normal wear and tear, improper operation, misuse, inadequate maintenance, use of unsuitable cleaning agents, incorrect installation, or disassembly.
In the event of a claim, you must always contact the dealer or store where you purchased the product. The warranty is conditional upon proof of purchase of the product. Pressalit will supply a spare part or replace the product with the same or a similar model. The warranty period is neither extended nor renewed when replacement products or spare parts are supplied. If replacement is not possible, Pressalit is entitled instead to refund the purchase price.
These warranty terms apply in addition to the consumer's statutory rights and do not limit or exclude them.
Specifications
- Product codes
EAN
5708590305899VVS
615841130ETIM
EC010050NRF
7501065HMI
71748EMDN
Y181899
- Previous version
- R9909
- Product group
- Wall tracks

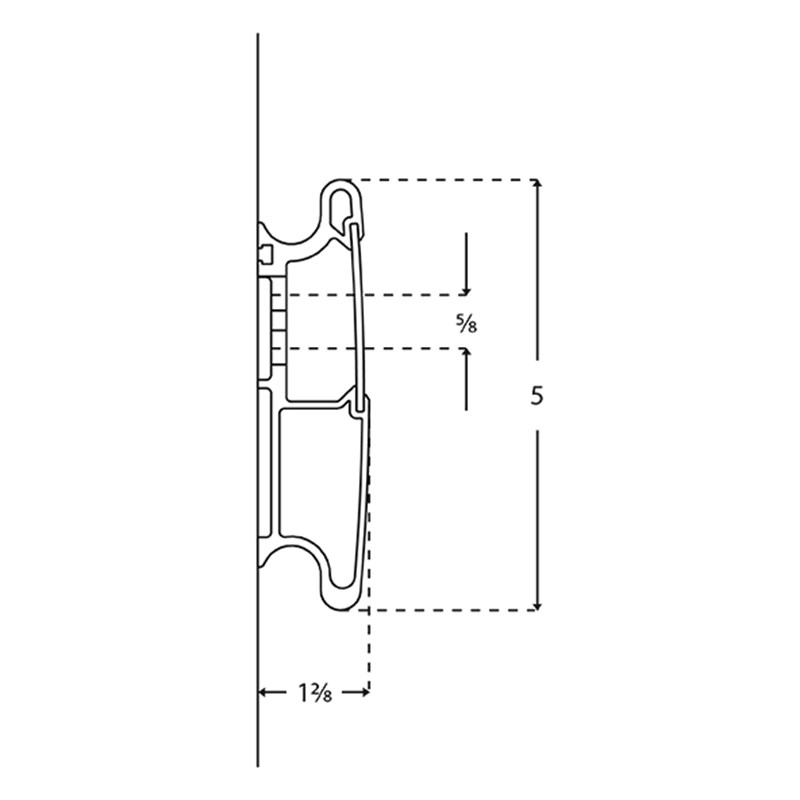

- Dimensioned drawing, inch
- Adjustability
- Fixed mounting
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
This product is considered to be an accessory for a medical device, as it is not itself a medical device, but is intended to be used together with several particular medical devices to specifically enable the medical devices to be used in accordance with their intended purposes. - Colour
- Anthracite gray
- Designer
- Rasmus Thygesen
- Design year
- 2011
- Cleaning instructions
- This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water. - Sales unit
- pcs
- Net weight, lbs
- 16.1
- Gross weight, lbs
- 17.8
- Weight per crate, lbs
- 17.8
- Qty per crate
- 1
- Qty per pallet
- 0
