    PLUS sink bracket with lever control, manually height adjustable

    Product number: R4550112

    EAN: 5708590309385

    Previous versions: R4140

    Can be height adjusted 9.5" from 28.7" to 38.1". For MATRIX SMALL and CURVE/CURVE ll sinks
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Related products

      Description

      Product description

        • Standing or seated heights available
        • Adapts to progressive needs of individuals
        • Two different methods of adjustment depending on situation

      • PLUS sink brackets are available in electrically, pneumatically and manually height adjustable versions.
        They are suitable for wall-mounting or for fitting to Pressalit PLUS wall tracks.

      • PLUS sink bracket. Manually height adjustable by 9.5" via lever control. Recommendation: Flexible feed and waste system R2085/R2087. Anthracite cover plate for vertical wall track.
        Materials: Aluminium and ABS polymer.
        Incl. mounting bolts for sink.
        Excl. mounting kit for wall.
      Intended use
      A sink bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
      Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
      Features
      If the height of the sink only needs to be adjusted occasionally, a manually adjustable sink bracket could be the best solution.
      Adjustment involves supporting the weight of the sink and part of the bracket. If frequent height adjustment is anticipated, use pneumatic-assisted sink bracket R4650 or electrically operated sink bracket R475x, instead.
      Ergonomy
      The sink bracket is compatible with all types of bolt-mounted sink. It's rounded, sleek design makes it easy to clean thoroughly.
      ProductAttributes.ProductIntendedUse
      WASH BASIN BRACKETS
      Product capacity
      Maximum load: 298 lbs.
      Suitable for sinks weighing no more than 49 lbs.
      When the sink is loaded with 298 lbs, each wall fastener will be carrying 126 lbs.
      Sink brackets need to be able to carry the weight of the sink, as well as support the weight of the person who is leaning against the sink or who is using the sink to rise from seated position.
      Neither sink nor sink bracket are intended to carry the full body weight of a person, and the test methods applicable to sink brackets reflect this: ISO 17966 prescribes a static test on the front edge of the sink at 75% of maximum user weight, i.e. when the maximum load on a sink bracket is given as 298 lbs and the wash basin weighs 49 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 332 lbs leaning on the front edge of the wash basin.
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590309385

      • VVS

        654001110

      • ETIM

        EC010187

      • NRF

        6132527

      • NBS

        N13:30,335

      • RSK

        7972586

      • HMI

        71763

      • GMDN

        63052

      • FDA

        ILW/D142473

      • UNSPSC

        42211600
      Previous version
      R4140
      Product group
      Sink brackets

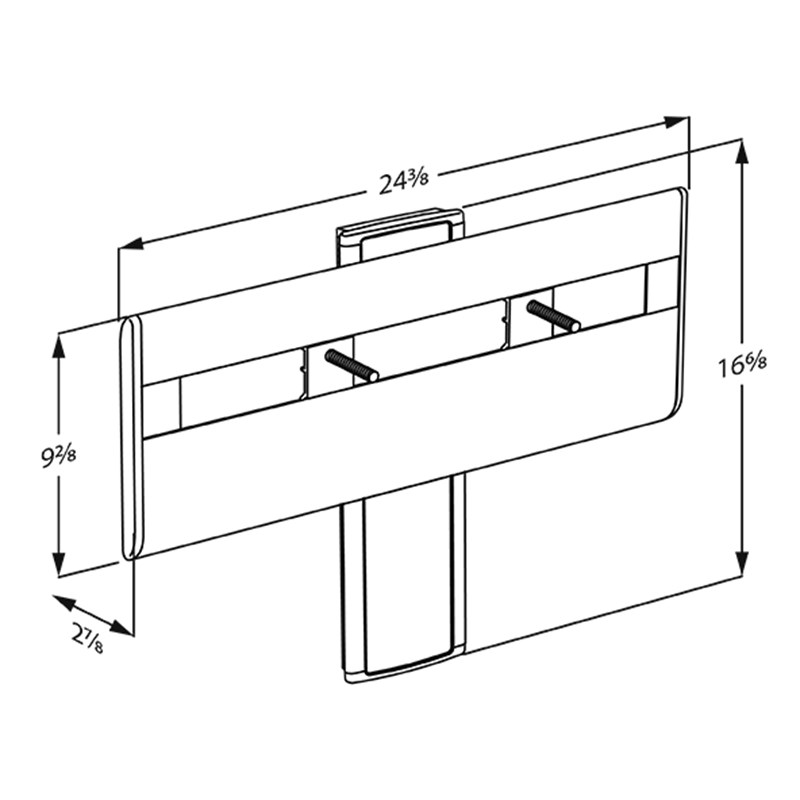

      Dimensioned drawing, inch
      Dimensioned drawing, inch
      Adjustability
      Height adjustable
      Adjustment height (inch)
      9.46
      Maximum user weight (MUM), lbs
      298
      Safe working load (SWL), lbs
      333
      Colour
      Anthracite gray
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The sink bracket is primarily made of 3/8" anodized aluminium. The ends of the bracket cover are capped with ABS polymer.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

      Sales unit
      pcs
      Net weight, lbs
      12.5
      Gross weight, lbs
      14.3
      Weight per crate, lbs
      14.3
      Crates per pallet
      24
      Qty per crate
      1
      Qty per pallet
      24

      Mounting

      Mounting
      Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.

      Downloads

      Mounting instructionsTechnical datasheetProduct matrix3D cad model (AutoCAD)EU declaration of conformityBIM object (Revit)Export certificateUser guide (OMM)
