PLUS sink bracket with lever control, manually height adjustable with pneumatic cylinder
Product number: R4650
EAN: 5708590309439
Previous versions: R4360
Can be height adjusted 11.8" from 26.3" to 38.1". For MATRIX SMALL and CURVE/CURVE ll sinks
Description
- Product description
- Standing or seated heights available
- Adapts to progressive needs of individuals
- Two different methods of adjustment depending on situation
- PLUS sink brackets are available in electrically, pneumatically and manually height adjustable versions.
They are suitable for wall-mounting or for fitting to Pressalit PLUS wall tracks. - PLUS sink bracket, pneumatic-assisted. The lever control is placed at the front of the sink. The lever control can also be used as a towel bar and can be placed on either side of the wsink. Manually height adjustable by 11.8" (stepless). Recommendation: Flexible feed and waste system R2085/R2087.
Materials: Aluminium and ABS polymer.Incl. fixing bolts for sink.
Excl. mounting kit.
- Intended use
- A sink bracket is intended for optimum ergonomics at a wash basin, for both seated and standing users with disabilities.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- The arm that holds the lever control can function as a towel bar. The lever control can be placed on the right- or left-hand side of the sink. This sink bracket is supplied as standard with a pneumatic cylinder for sinks weighing 35.3-48.5 lbs, however, it is possible to order it for sinks weighing 17.6-26.5 lbs or 26.5-35.3 lbs.
- Ergonomy
- The height of the sink is easily adjusted the lever control. The sink bracket is compatible with all types of bolt-mounted sink. It's rounded, sleek design makes it easy to clean thoroughly.
- ProductAttributes.ProductIntendedUse
- WASH BASIN BRACKETS
- Product capacity
- Maximum load: 298 lbs.
Suitable for sinks weighing no more than 49 lbs.
When the sink is loaded with 298 lbs, each wall fastener will be carrying 126 lbs.
Sink brackets need to be able to carry the weight of the sink, as well as support the weight of the person who is leaning against the sink or who is using the sink to rise from seated position.
Neither sink nor sink bracket are intended to carry the full body weight of a person, and the test methods applicable to sink brackets reflect this: ISO 17966 prescribes a static test on the front edge of the sink at 75% of maximum user weight, i.e. when the maximum load on a sink bracket is given as 298 lbs and the wash basin weighs 49 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 332 lbs leaning on the front edge of the wash basin. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590309439VVS
654002100ETIM
EC010187NRF
6132532NBS
N13:30,335RSK
7972590HMI
71762GMDN
63052FDA
ILW/D142473UNSPSC
42211600
- Previous version
- R4360
- Product group
- Sink brackets

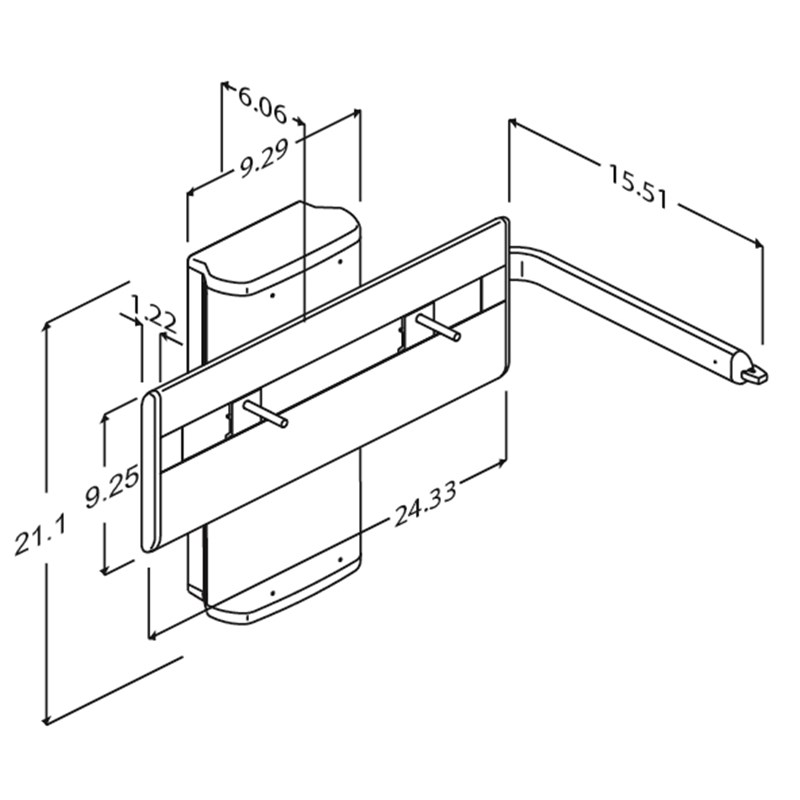

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 11.82
- Maximum user weight (MUM), lbs
- 298
- Safe working load (SWL), lbs
- 333
- Designer
- Rasmus Thygesen
- Design year
- 2011
- Materials
- The sink bracket is primarily made of 3/8" anodized aluminium. The ends of the bracket cover are capped with ABS polymer. The bracket is available with a lever control consisting of an ABS polymer switch at the end of an anodized aluminium arm
- Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 25.8
- Gross weight, lbs
- 29.8
- Weight per crate, lbs
- 29.8
- Crates per pallet
- 10
- Qty per crate
- 1
- Qty per pallet
- 10
