PLUS fold down grab bar with integrated counter-balance, 33.5'', right hand operated
Product number: R381485108
EAN: 5708590368788
Previous versions: R3285, R3518
Projection: 34.6''. Sideways adjustable. Removable and foldable
Description
- Product description
- Easy lift on/off horizontal track
- Easy to slide e.g from toilet to shower
- All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
Suitable for use with elongated toilet pans or floor standing toilets.
Replaces discontinued model R3285. - PLUS fold down grab bar. Projection 34.5", ergonomically shaped to provide a clear sense of where the fold down grab bar ends. adjustable horizontally. Detachable and foldable.
Materials: The arms are construced of 3/8" anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
For mounting on horizontal wall track (not included). Awards
FOLD DOWN GRAB BARS – Red Dot Product Design Award winner
Ergonomic design and integrated counter-balance function makes the grab bars a user-friendly and safe choice.
The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.
- Intended use
- The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
Expected service life is 10 years, provided that maintenance is carried out as described in the user manual. - Features
- Folds against the wall.
The underside is shaped for the mounting of various accessories. - Ergonomy
- The oval shape gives an easy and comfortable surface to lean and push against.
The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.
Soft and slip-resistant material that has a warm feel. - ProductAttributes.ProductIntendedUse
- SUPPORT ARMS
- Product capacity
- Maximum load: 330 lbs.
When the fold down grab bar is loaded with 330 lbs, each wall fastener in the horizontal wall track is loaded with 16 kg.
PLUS fold down grab bars have been tested statically with 1540 lbs (close to the wall), 935 lbs (in the middle) and 495 lbs (the outermost point). - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590368788ETIM
EC010078NRF
6191152HMI
123635GMDN
35585FDA
ILS/D135866UNSPSC
42211612
- Previous version
- R3285, R3518
- Product group
- Fold down grab bars and arm supports

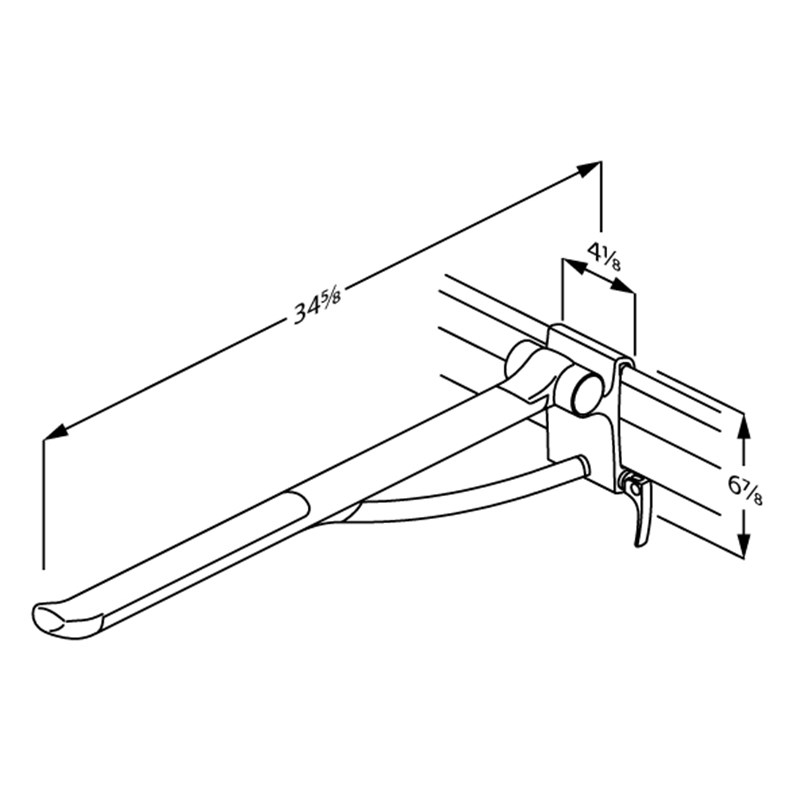

- Dimensioned drawing, inch
- Adjustability
- Horizontally adjustable
- Adjustment height (inch)
- 9.46
- Maximum user weight (MUM), lbs
- 331
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1) - Colour
- Dark blue (RAL 5011)
- Designer
- Rasmus Thygesen
- Design year
- 2011
- Materials
- The grab bars are primarily constructed in 3/8" anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
The hinge arm is also made of soft SEBS.
Internal components and fasteners are primarily made of stainless steel.
The hinge barrel is capped with ABS polymer. - Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Oxyplus-acid 2% (Diversey)
WipeClean UniversalCleaning
Chrolorine Disinfection Wipes
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 6.8
- Gross weight, lbs
- 9.5
- Weight per crate, lbs
- 9.5
- Crates per pallet
- 20
- Qty per crate
- 1
- Qty per pallet
- 20
- Carton size
- 1045x200x235 mm
Mounting
- Mounting
- For fitting to horizontal PLUS wall track (not included).
