    PLUS fold down grab bar with integrated counter-balance, 27.6''

    Product number: R360070000

    EAN: 5708590367859

    Previous versions: R3060, RF060, R3070, RF070, R3016, RF016

    Projection: 27.6''.
    Fixed height. Foldable
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Related products

      Description

      Product description
        • Choice of colours
        • Warm slip resistant surface
        • Ergonomic grip for weak hands
      • All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
        All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
        Suitable for use with toilet pans projecting 21.3/21.7''.
        Replaces discontinued models R3060, RF060, R3070 and RF070.
      • PLUS fold down grab bar, counter-balanced. Projection 27.6", ergonomically shaped to provide a clear sense of where the fold down grab bar ends. For fixed mounting. Foldable.
        Materials: The arms are construced of 10-micrometer anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
        Excl. mounting kit.
      • Awards

        FOLD DOWN GRAB BARS – Red Dot Product Design Award winner
        Ergonomic design and integrated counter-balance function makes the grab bars a user-friendly and safe choice.

        The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
        The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.
      Intended use
      The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
      Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
      Features
      Folds against the wall.
      The underside is shaped for the mounting of various accessories.
      Ergonomy
      The oval shape gives an easy and comfortable surface to lean and push against.
      The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.
      Soft and slip-resistant material that has a warm feel.
      ProductAttributes.ProductIntendedUse
      SUPPORT ARMS
      Product capacity
      Maximum load: 330 lbs.
      When the fold down grab bar is loaded with 330 lbs, each wall fastener is loaded with 355 lbs.

      PLUS fold down grab bars have been tested statically with 1540 lbs (close to the wall), 935 lbs (in the middle) and 495 lbs (the outermost point).

      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes
      • EAN

        5708590367859
      • VVS

        615871100
      • DB

        2509941
      • ETIM

        EC010078
      • NRF

        6191066
      • RSK

        8487436
      • HMI

        123556
      • GMDN

        35585
      • FDA

        ILS/D135866
      • UNSPSC

        42211612
      Previous version
      R3060, RF060, R3070, RF070, R3016, RF016
      Product group
      Fold down grab bars and arm supports

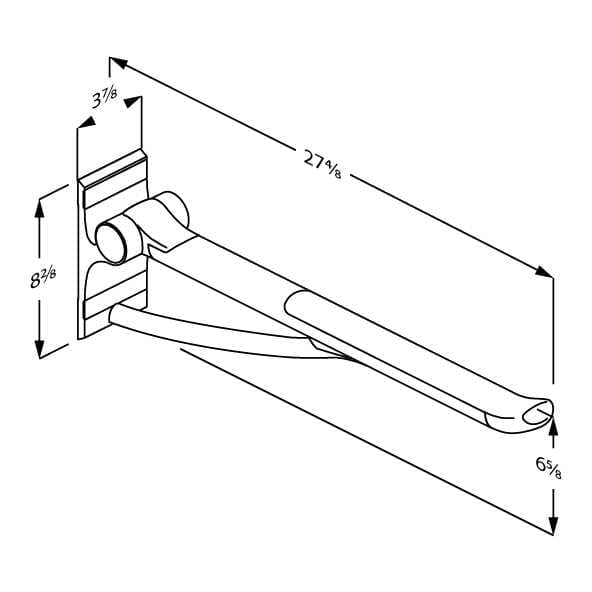

      Dimensioned drawing, inch

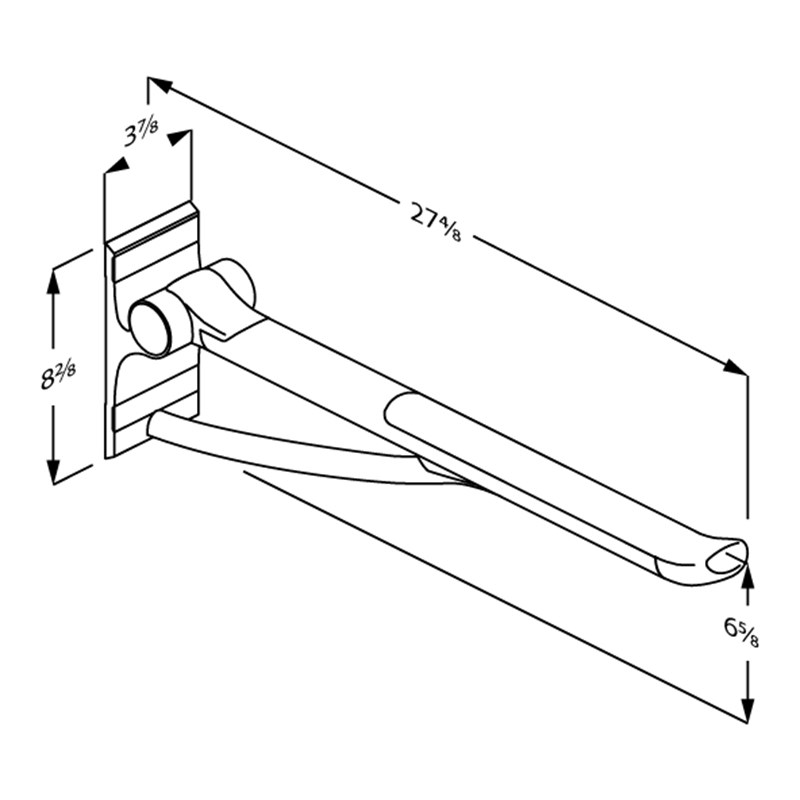

      Dimensioned drawing, inch
      Adjustability
      Fixed mounting
      Maximum user weight (MUM), lbs
      331
      Declaration of conformity
      This product is produced in compliance with all relevant requirements of:
      - Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
      Colour
      White
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The grab bars are primarily constructed from 3/8" anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
      The hinge arm is also made of soft SEBS.
      Internal components and fasteners are primarily made of stainless steel.
      The hinge barrel is capped with ABS polymer.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%
      Oxyplus-acid 2% (Diversey)
      WipeClean UniversalCleaning
      Chrolorine Disinfection Wipes

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

      Sales unit
      pcs
      Net weight, lbs
      6.1
      Gross weight, lbs
      8.2
      Weight per crate, lbs
      8.2
      Crates per pallet
      24
      Qty per crate
      1
      Qty per pallet
      24
      Carton size
      795x200x240 mm

      Mounting

      Mounting
      Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.

      Downloads

      BIM object (Revit)Mounting instructionsTUV certificateTechnical datasheet3D cad model (AutoCAD)EU declaration of conformityWall reinforcement guideExport certificateUser guide (OMM)
