    PLUS fold down grab bar with integrated counter-balance, 27.6'', right hand operated

    Product number: R370470000

    EAN: 5708590368153

    Previous versions: R3160, RF160, R3170, RF170, R3146, RF146

    Projection: 28.7''. Height adjustable. Removable and foldable
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please select where you want to buy the product

      Visit the retailer for their current stock status or delivery time.

      Find physical store

      Related products

      Description

      Product description

        • Vetical adjustment to help stand/sit and side transfers for different users
        • Tool free simple adjustment
        • Products can be moved to other areas in bathroom(s)

      • All PLUS fold down grab bars come with an integrated counter-balance, which ensures a controlled movement between horizontal and vertical positions.
        Suitable for use with toilet pans projecting 21.3/21.7''.
        Replaces discontinued models R3160, RF160, R3170 og RF170.

      • PLUS fold down grab bar, counter-balanced. Projection 28.7", ergonomically shaped to provide a clear sense of where the fold down grab bar ends. Right hand operated. Height adjustable by 9.5" without using tools. Detachable and foldable. Anthracite cover plate for vertical wall track.
        Materials: The arms are construced of 10-micrometer anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
        Excl. mounting kit.

      • Awards

        FOLD DOWN GRAB BARS – Red Dot Product Design Award winner
        Ergonomic design and integrated counter-balance function makes the grab bars a user-friendly and safe choice.

        The Red Dot Product Design Award is an international design award that honors product design, communication design and design concepts.
        The distinction “Red Dot” has become established internationally as one of the most sought-after seals of quality for good design.
      Intended use
      The fold down grab bar is used as a suport for a user when he or she sits down or gets up from a toilet.
      Expected service life is 10 years, provided that maintenance is carried out as described in the user manual.
      Features
      Folds against the wall.
      The underside is shaped for the mounting of various accessories.
      Ergonomy
      The oval shape gives an easy and comfortable surface to lean and push against.
      The end of the support arm is enlarged so that it is easier to pull forward from a sitting position and also provides a clear sense of where the support arm ends.
      Soft and slip-resistant material that has a warm feel.
      Product capacity
      Maximum load: 330 lbs.
      When the fold down grab bar is loaded with 330 lbs, each wall fastener in the vertical wall track is loaded with 90 lbs.

      PLUS fold down grab bars have been tested statically with 1540 lbs (close to the wall), 935 lbs (in the middle) and 495 lbs (the outermost point).

      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590368153

      • VVS

        615875400

      • DB

        2509966

      • ETIM

        EC010078

      • NRF

        6191089

      • RSK

        8487444

      • HMI

        123496

      • GMDN

        35585

      • FDA

        ILS/D135866

      • UNSPSC

        42211612
      Previous version
      R3160, RF160, R3170, RF170, R3146, RF146
      Product group
      Fold down grab bars and arm supports

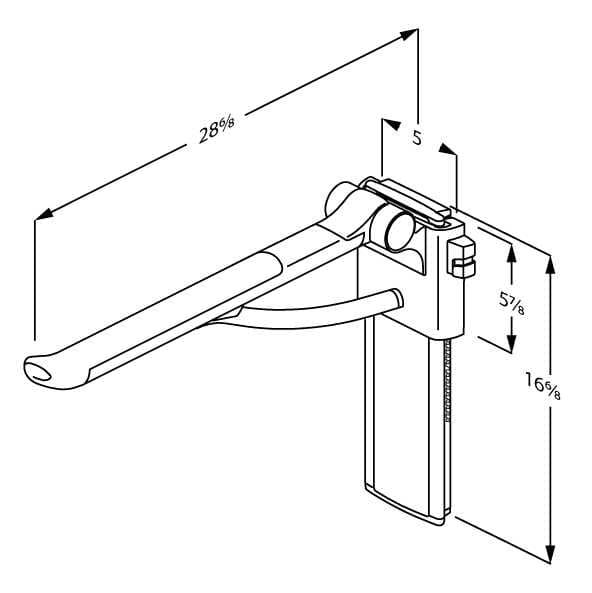

      Dimensioned drawing, inch
      Dimensioned drawing, inch
      Adjustability
      Height adjustable
      Adjustment height (inch)
      9.46
      Maximum user weight (MUM), lbs
      331
      Declaration of conformity
      This product is produced in compliance with all relevant requirements of:
      - Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
      Colour
      White
      Designer
      Rasmus Thygesen
      Design year
      2011
      Materials
      The grab bars are primarily constructed in 10-micrometer anodized aluminium, with a non-slip gripping surface at the end made of soft SEBS and incorporating a glass-reinforced nylon core.
      The hinge arm is also made of soft SEBS.
      Internal components and fasteners are primarily made of stainless steel.
      The hinge barrel is capped with ABS polymer.
      Cleaning

      This product should be cleaned with hot water or a mild cleaning solution.
      Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

      The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

      DISINFECTANTS:
      Clinimax Difficil-S
      Erisan OXY+
      Sprit (husholdningssprit)
      Suma Bac D10
      Virkon
      Rodalon Desinfektionsspray
      Lysoformin Spezial
      CaviCide
      Sufanios Premium
      Tvättsprit 70%
      Oxyplus-acid 2% (Diversey)
      WipeClean UniversalCleaning
      Chrolorine Disinfection Wipes

      NON-DISINFECTANTS:
      Suma Star free D1
      Taski 100
      Taski 200
      Milizid Citro

      The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

      DECALCIFICATION OF ALUMINUM PARTS:
      Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

      Sales unit
      pcs
      Net weight, lbs
      8.8
      Gross weight, lbs
      12.6
      Weight per crate, lbs
      12.6
      Crates per pallet
      20
      Qty per crate
      1
      Qty per pallet
      20
      Carton size
      810x245x275 mm

      Mounting

      Mounting
      Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
