PLUS backrest, adjustable horizontally
Product number: R6414277
EAN: 5708590365497
Previous versions: R6520, R6513
15.2" x 8.2".
Distance from wall: 8.9"
Distance from wall: 8.9"
Description
- Product description
- Comfortable ergonomic back support in a range of colours
- Moveable and detachable without the use of tools
- PLUS backrests are offered in a number of colours and versions, they are available as both fixed height and adjustable.
They are suitable for wall-mounting behind a toilet without cistern or mounting on one of Pressalit’s toilet lifters. - PLUS backrest, 15.2" x 8.2", soft feel.
Sideways adjustable, for mounting on a horizontal walltrack behind a wall-mounted toilet without cistern.
Can be removed easily when not needed and reattached again without the use of tools.
Materials: Aluminium and polyurethane foam with a plywood core.
For fitting to horizontal PLUS wall track (not included).
- Intended use
- Backrests are intended to be mounted behind a toilet without cistern to ensure support for an unstable person.
Expected service life is 10 years. - Ergonomy
- Soft and slip-resistant material that has a warm feel.
- ProductAttributes.ProductIntendedUse
- BACKREST
- Product capacity
- Maximum load: 110 lbs.
Maximum user weight: 220 lbs.
When the backrest is loaded with 110 lbs, each wall fastener will be carrying 73 lbs.
Backrests need to be able to support the weight of the person who is leaning against it.
The backrest is not intended to carry the full body weight of a person, and the test methods applicable to backrests reflect this: ISO 17966 prescribes a static test at 50% of maximum user weight, i.e. when the maximum load on a wash basin bracket is given as 110 lbs, it is – according to ISO 17966 – the equivalent of a user weighing 220 lbs leaning on the backrest. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590365497ETIM
EC010948NRF
6317048HMI
124208GMDN
31062FDA
INN/D135865
- Previous version
- R6520, R6513
- Product group
- Front supports and backrests

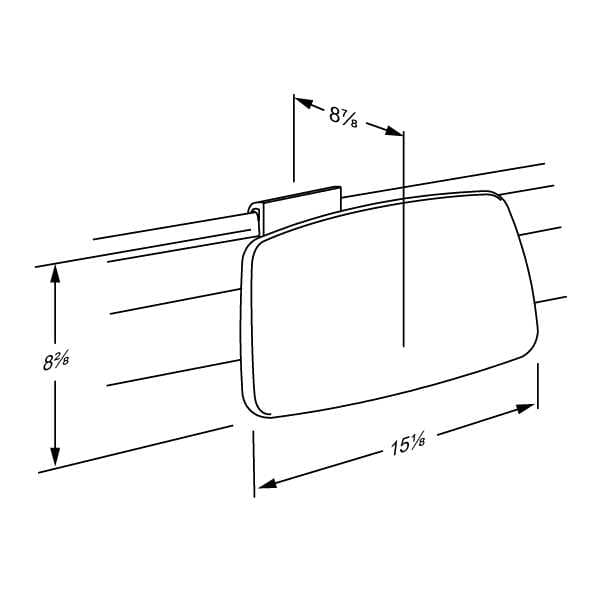

- Dimensioned drawing, inch
- Adjustability
- Horizontally adjustable
- Maximum user weight (MUM), lbs
- 110
- Safe working load (SWL), lbs
- 220
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1) - Colour
- Lime green
- Materials
- The backrest is made of polyurethane (PU) foam which is covered with a moulded coated surface that is protected using a clear PU lacquer.
- Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Erisan OXY+
Tvättsprit 70%
CaviCide surface disinfectant decontaminant cleaner
Rodalon Desinfektionsspray
Terralin protect (SCHÜLKE+)
Dismonzon Plus (BODE Chemie GmbH)
NON-DISINFECTANTS:
Wetrok Caledor (Wetrok)
Petrosol Citro (Büfa)
Important: Polyurethane surfaces of PLUS shower seats and PLUS backrests contains an antibacterial surface, which will be compromised if cleaned with anything other than soap and water.
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 6.1
- Gross weight, lbs
- 6.8
- Weight per crate, lbs
- 6.8
- Crates per pallet
- 48
- Qty per crate
- 1
- Qty per pallet
- 48
Mounting
- Mounting
- For fitting to horizontal PLUS wall track (not included).
