INDIVO Pack Small, lift for countertop 23.6"-60"
Product number: RK1860202
EAN: 5708590395876
Electrically height adjustable.
With two lifting columns .
Max. load 220 lbs
With two lifting columns .
Max. load 220 lbs
Description
- Product description
- Pressalit INDIVO lifting units can be easily integrated into the private home, ensuring that the whole family can enjoy the full potential and use the height adjustable function. The lifting units can also help provide a flexible kitchen solution for e.g. care centers, school kitchens and school science labs, wherever there is a need for frequent height adjustments on kitchen countertops and wall cabinets.
- INDIVO Pack small, lift forcountertop, with two motors and control box.
Incl. cross brace and three brackets.
Height adjustable up to 11.8" with switch.
For countertop length 23.6"-60".
Indivo Pack small - 220 lbs, the package contains:
2 x INDIVO lifting columns
1 x Cross brace
1 x Safety strip, self-adhesive
1 x Cable tray
1 x Electrical components kit
3 x Stability bars for countertop
12 x Brackets for fitting of fascia
Excl. mounting kit
- Intended use
- INDIVO lifts may be used with most commercially available kitchen countertops and kitchen cabinets, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years. - Features
- The lifts are height adjusted via a switch in the front edge.
- Ergonomy
- An electric height-adjustable kitchen countertop is ideal in all situations where various users - both seated and standing - use the same kitchen.
This is equally true in private homes as well as larger centers with common kitchen facilities such as group homes and care centers. - Product capacity
- Maximum load: 220 lbs, this includes the weight of the countertop.
The load must be evenly distributed. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Specifications
- Product codes
EAN
5708590395876
- Product group
- INDIVO Packs, lifts for kitchen counter-top, wall-mounted

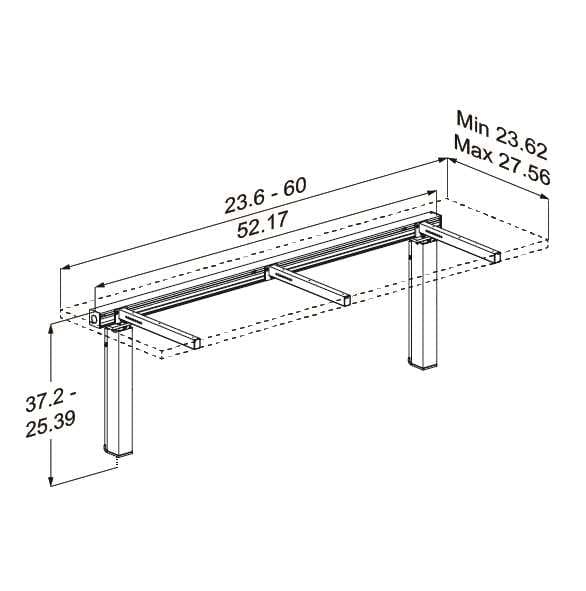

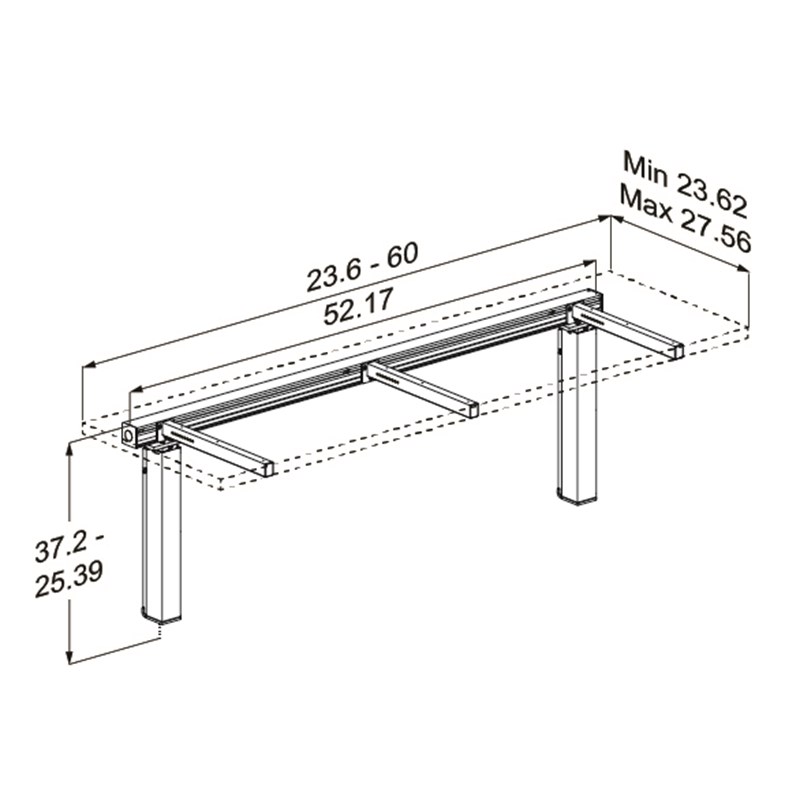

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 11.82
- Mains connection, V~
- 120
- Frequency, Hz
- 60
- IP rating
- IPXX
- Speed, downwards, inch/s
- 0.79
- Speed upwards, inch/s
- 0.79
- Safe working load (SWL), lbs
- 220
- Power consumption (maximum load), W
- 450
- Power consumption (standby), W
- 2
- Noise level, dB
- 48
- Actuator (motor)
- DL17 Deskline (Linak) 70N, IP20
- Control box
- CBD6S (Linak) IP20
- Wired remote control
- HB53 (Linak), IPX1
- Declaration of conformity
- This product is solely intended for the US and Canada, and has no EU declaration of conformity.
- WEEE
- Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
- Colour
- Gray (RAL 9006)
- Materials
- Lifting columns: Powder-coated steel
Cross brace: Aluminium
Brackets: Powder-coated steel - Cleaning instructions
- This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water. - Sales unit
- pcs
- Net weight, lbs
- 71
- Gross weight, lbs
- 73.8
- Weight per crate, lbs
- 73.8
- Crates per pallet
- 99999
- Qty per crate
- 1
- Qty per pallet
- 0
- Manufacturer
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
