INDIVO lift for wall cabinets 47.3''-94.5''
Product number: RK1821
EAN: 5708590379074
Previous versions: RK1721
Electrically height adjustable.
With two motors.
With two motors.
Description
- Product description
- Brings storage within reach for seated users especially
- Easy intuitive controls
- Mechanism and wires behind cupboards
- Pressalit INDIVO lifting units can be easily integrated into the private home, ensuring that the whole family can enjoy the full potential and use the height adjustable function. The lifting units can also help provide a flexible kitchen solution for e.g. care centers, school kitchens and school science labs, wherever there is a need for frequent height adjustments on kitchen countertops and wall cabinets.
- INDIVO lift for wall cabinets, with two motors and control box. Max. load: 485 lbs including the cabinets.
Height adjustable 16.9'' with switches or wired remote control. When height adjusting downward, the lift will also move 7.1'' towards the user.
For wall cabinets width 47.3''-94.5''.
Please note: Maximum height of cabinets are 28.5". If a wall cabinet is to be higher than this, an extension RK1065 or RK1066 must be added.
Please indicate height, width and depth of wall cabinets when ordering.
Excl. mounting kit.
- Intended use
- INDIVO lifts may be used with most commercially available kitchen countertops and kitchen cabinets, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years. - Features
- Lift heights for wall cabinets are adjusted via switches in the front countertop edge.
Operating switches can be placed wherever you want along the front edge.
The switches are color-coded - aluminium to operate countertops, and red to operate wall cabinets.
The design of the lifts ensures that the lift motors are as discreet as possible, regardless of the cabinet position.
When the wall cabinets are lowered 41.2" to their lowest position, they are also extended 7" towards the user. - Ergonomy
- Wall cabinets are moved diagonally, that is both vertically and towards the user. This makes it easy for seated users and children to see and access covered contents.
Height-adjustable wall cabinets provide extra storage options in kitchens where cabinets cannot be installed under countertops out of consideration for seated users. - ProductAttributes.ProductIntendedUse
- INDIVO
- Product capacity
- Max. load (including cabinets):
2 lifts: 485 lbs. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Specifications
- Product codes
EAN
5708590379074
- Previous version
- RK1721
- Product group
- Lifts for kitchen wall cabinets

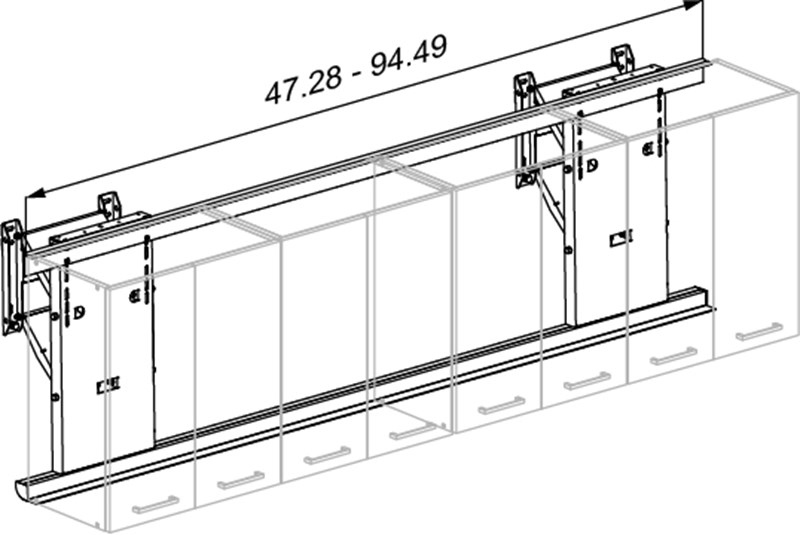

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 16.94
- Speed, downwards, inch/s
- 0.71
- Speed upwards, inch/s
- 0.71
- Noise level, dB
- 45
- Actuator (motor)
- DB4 Deskline (Linak) 1000 N, IP22
- Control box
- CBD6 (Linak)
- Wired remote control
- HB53 (Linak), IPX1
- Declaration of conformity
- This product is solely intended for the US and Canada, and has no EU declaration of conformity.
- Materials
- Material:
Lift motor: Steel
Cross braces: Aluminium
Switches: ABS plastic - Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 80.9
- Gross weight, lbs
- 85.4
- Weight per crate, lbs
- 85.4
- Crates per pallet
- 99999
- Qty per crate
- 1
- Qty per pallet
- 0
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
- Mounting
