INDIVO lift for countertop 78.8" -94.5"
Product number: RK1813202
EAN: 5708590379043
Previous versions: RK1713
Electrically height adjustable.
With two motors.
Max. load 220 lbs
With two motors.
Max. load 220 lbs
Description
- Product description
- Multiple adjustment methods - crank handle and powered
- Intuitive controls that can be operated independently
- Height adjustment range assists variety of different user requirements
- Pressalit INDIVO lifting units can be easily integrated into the private home, ensuring that the whole family can enjoy the full potential and use the height adjustable function. The lifting units can also help provide a flexible kitchen solution for e.g. care centers, school kitchens and school science labs, wherever there is a need for frequent height adjustments on kitchen countertops and wall cabinets.
- INDIVO lift for countertop, with two motors and control box. Max. load: 220 lbs including the countertop.
Incl. cross brace and four brackets.
Height adjustable up to 11.8'' with switch or wired remote control.
For countertop length 78.8" - 94.5". Please indicate length and depth of countertop when ordering.
Excl. mounting kit.
- Intended use
- INDIVO lifts may be used with most commercially available kitchen countertops and kitchen cabinets, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years. - Features
- Lifts are height adjusted either via switches in the front edge or with a wired remote control.
- Ergonomy
- An electric height-adjustable kitchen countertop is ideal in all situations where various users - both seated and standing - use the same kitchen.
This is equally true in private homes as well as larger centers with common kitchen facilities such as group homes and care centers. - ProductAttributes.ProductIntendedUse
- INDIVO
- Product capacity
- Maximum load: 220 lbs, this includes the weight of the countertop.
The load must be evenly distributed. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Specifications
- Product codes
EAN
5708590379043
- Previous version
- RK1713
- Product group
- Lifts for kitchen counter-top, wall-mounted

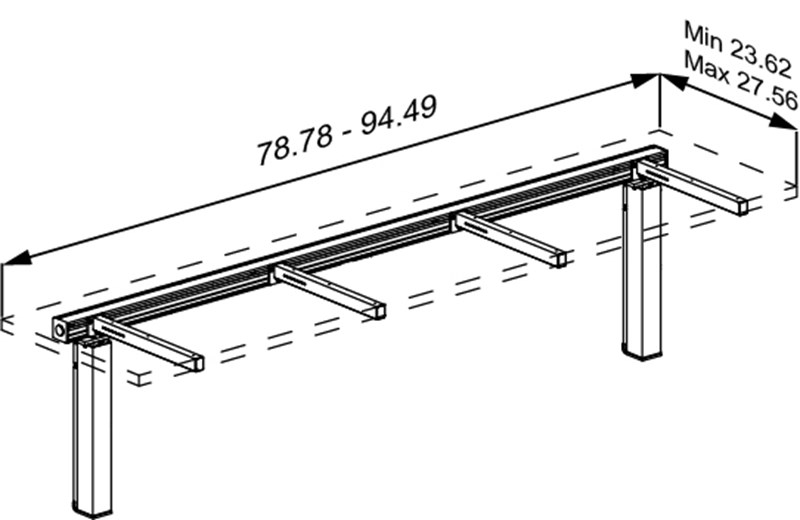

- Dimensioned drawing, inch
- Adjustability
- Height adjustable
- Adjustment height (inch)
- 11.82
- Speed, downwards, inch/s
- 0.79
- Speed upwards, inch/s
- 0.79
- Safe working load (SWL), lbs
- 220
- Power consumption (maximum load), W
- 300
- Power consumption (standby), W
- 2
- Noise level, dB
- 45
- Actuator (motor)
- DL17 Deskline (Linak) 70N, IP20
- Control box
- CBD6S (Linak) IP20
- Wired remote control
- HB53 (Linak), IPX1
- Declaration of conformity
- This product is solely intended for the US and Canada, and has no EU declaration of conformity.
- Colour
- Gray (RAL 9006)
- Materials
- Lifting columns: Powder-coated steel
Cross brace: Aluminium
Brackets: Powder-coated steel - Cleaning
This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.- Sales unit
- pcs
- Net weight, lbs
- 66.8
- Gross weight, lbs
- 69.7
- Weight per crate, lbs
- 69.7
- Crates per pallet
- 99999
- Qty per crate
- 1
- Qty per pallet
- 0
Mounting
- Mounting
- Excl. mounting kit. See Technical specifications (pdf) for information on mounting kits suitable for various wall types.
- Mounting
