TMA 3 arm support for mounting on toilet, with nurse call button to the right
Product number: R1193112
EAN: 5708590387482
Compatible with IFØ Spira toilet 6261, Spira 6293 and Sign 6893
Description
- Product description
- Ergonomic grip for weak hands
- Arms fold up individually
- TMA arm supports comes in various widths, and models with or without toilet seat.
- TMA 3 arm supports for mounting on toilet. Anthracite grey handles.
Incl. two paper holders.
Excl. hinges.
Bottom mounting.
Compatible with IFØ Spira toilet 6261, Spira 6293 and Sign 6893
Recommended with toiletseats:
Pressalit Spira V 1136011-DN3999
Pressalit Spira V 1136112-DN3999
Pressalit Sign 553011-DN1999
Pressalit Sign 553112-DN1999
Pressalit Sign 554011-DN1999
Pressalit Sign 554108-DN1999
Pressalit Sign 554112-DN1999
- Intended use
- The arm support is used as support for a person when he or she sits down or gets up from a toilet.
- Features
- The arm supports are foldable.
The arm supports can be folded up and down individually. - Ergonomy
- The arm supports provide firm support and the moulded handles are comfortable for the hands and arms.
- ProductAttributes.ProductIntendedUse
- TMA
- Product capacity
- Maximum user weight (MUM): 150 kg.
The armsupports are tested according to ISO/FDIS 17966:2025 with a safety factor of 1.5.
The armsupports are additionally statically tested individually with 97 kg. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590387482ETIM
EC010078GMDN
31062
- Product group
- Support arms and arm supports

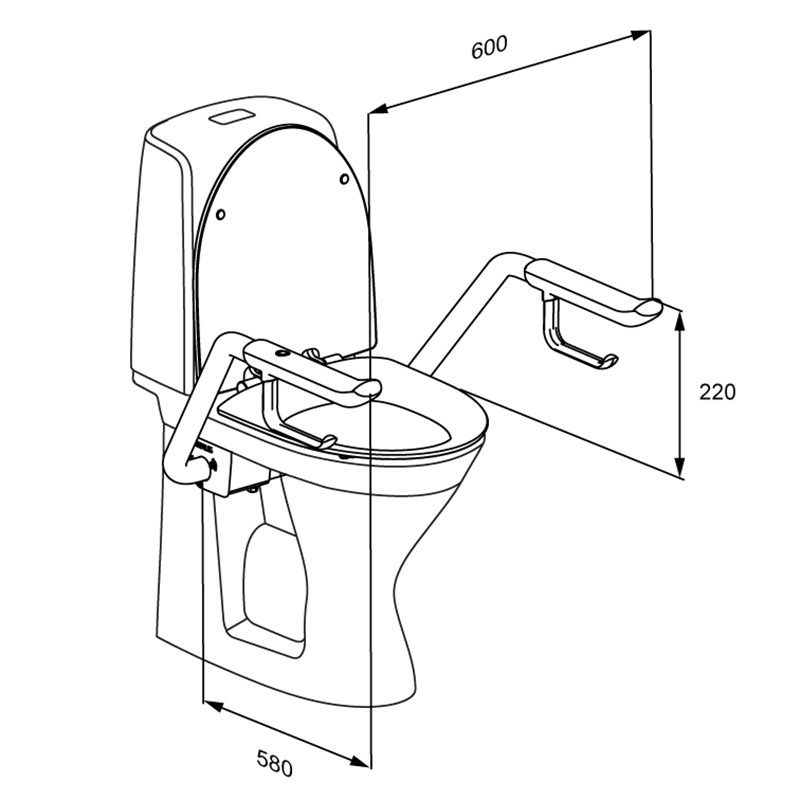

- Dimensioned drawing, mm
- Adjustability
- Fixed mounting
- Mains connection, V~
- 40
- Frequency, Hz
- 50/60
- IP rating
- IPX6
- Maximum user weight (MUM), kg
- 150
- Power consumption (maximum load), W
- 4
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2011/65/EC on RoHS - Colour
- Anthracite grey
- Materials
- Anodised aluminium and ABS
- Cleaning
GENERAL
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.- Sales unit
- pcs
- Net weight, kg
- 4.4
- Gross weight, kg
- 5.3
- Weight per crate, kg
- 5.3
- Crates per pallet
- 20
- Qty per crate
- 1
- Qty per pallet
- 20
Mounting
- Mounting
- Mounting material included.
