SCT 1000 shower change table , electrically height adjustable

Name: SCT 1000 shower change table , electrically height adjustable
Brand: Pressalit
Availability: InStock

Product number: R8573118000

EAN: 5708590377629

Previous versions: R8403

Outer measurements: 760 x 1800 mm.
Lying surface: 600 x 1800 mm.
With safety rail.

SCT 1000 shower change table , electrically height adjustable

Product number: R8573118000

EAN: 5708590377629

Previous versions: R8403

Outer measurements: 760 x 1800 mm.
Lying surface: 600 x 1800 mm.
With safety rail.

Description

Product description

- Stretcher is easy to clean
- Light table element, folded easily
- Splash curtain option to keep assistant's legs dry
Pressalit offers a variety of mobile and wall-hung, height-adjustable and fixed height shower and changing tables of high quality. They are designed to provide a stable platform for showering and changing adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensures optimal working conditions for the carer as well as a high level of comfort and safety for the user.
SCT 1000 shower change table 1000, powered, height adjustable 400 mm; from 480 mm - 880 mm, with wired hand control
Foldable. Incl. safety rail.
Outer measurements 760 mm x 1800 mm.
Excl. mounting kit.

Intended use

This product is intended for showering or changing a person who is unable to stand or sit. The person is lying horizontally on the table.
Expected service life is 10 years for institutional use, provided that maintenance is carried out as described in the user manual.

Features

Electric with wired hand control – the red buttons clearly indicate “Up” and “Down”. The wired hand control comes with a holder for fitting to the wall.
The integrated gas cylinders enable the bench to be folded out of the way when not in use to maximise floor space in front of the unit.
Splash curtain (optional) for the nursing bench protects the carer against splashing.

Ergonomy

Carers can easily set the height of the table, enabling them to obtain the correct working position. This ensures safe showering and changing for the user as well as minimizing the risk of back injury for the carer.

ProductAttributes.ProductIntendedUse

SHOWER CHANGE TABLES

Product capacity

Maximum user weight (MUM): 200 kg.
Safe working load (SWL): 200 kg.
When the table is loaded with 200 kg, each mounting bolt supports 27 kg.
This product has been tested statically with a load of 500 kg as the IEC 60601-1 standard requires testing with safety factor 2.5.

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date. NOTICE If the product is placed in an atmosphere heavy in salt or chloride, the warranty will be reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the products components and will cause a decrease in the life expectancy of the product.

Specifications

Product codes

EAN
5708590377629
ETIM
EC010457
GMDN
43600
UNSPSC
42211601

Previous version

R8403

Product group

Shower and changing tables

Product series

SCT 1000

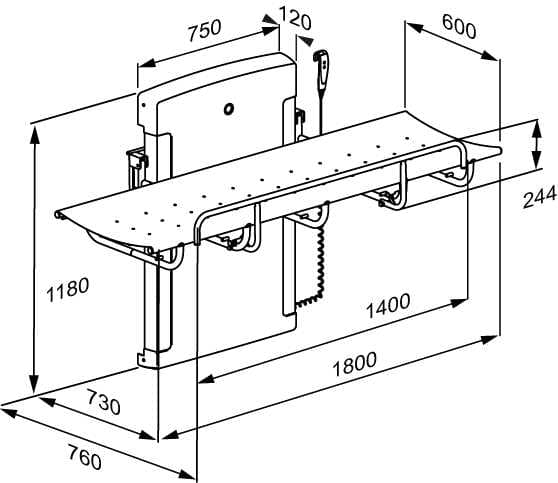

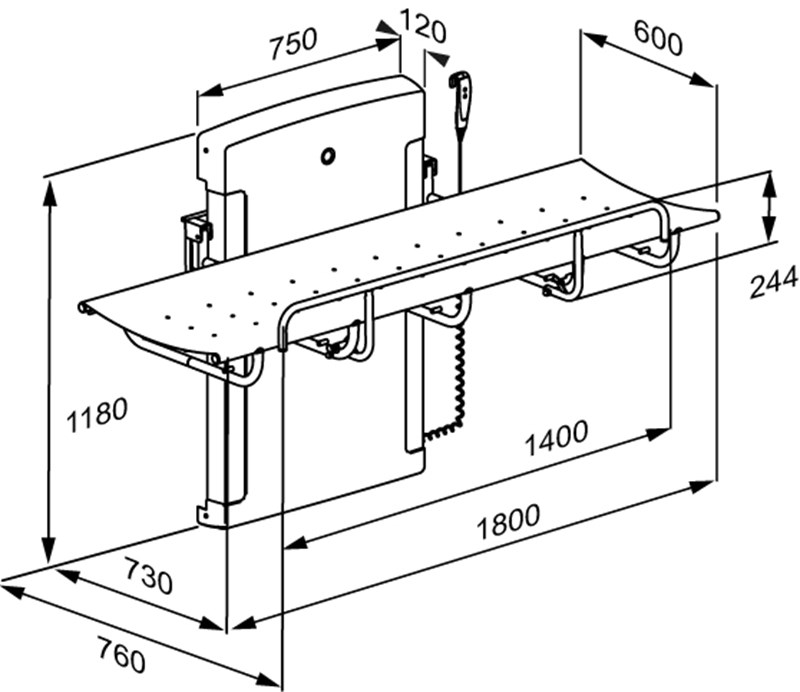

Dimensioned drawing, mm

Adjustability

Height adjustable

Adjustment height, mm

400

Mains connection, V~

230

Frequency, Hz

50/60

IP rating

IPX6

Speed, downwards, mm/s

Speed upwards, mm/s

Maximum user weight (MUM), kg

200

Power consumption (maximum load), W

420

Power consumption (standby), W

0.5

Noise level, dB

Actuator (motor)

LA40 Careline (Linak), 4000 N, IPX6

Control box

CA63 Careline (Linak), IPX6

Wired remote control

HB30 (Linak), IP66

Declaration of conformity

This product is produced in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices (Risk class I, rule 1)
- Council Directive 2006/42/EC on machinery
- Council Directive 2011/65/EC on RoHS
For the UK:
- Medical Device Regulation (MDR) 2002 on medical devices
- Supply of Machinery (Safety) Regulations 2008
- Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Colour

White

Designer

Pressalit

Design year

2010

Materials

The table is made from practical and durable PVC canvas which is phthalate free. The frame is powder-coated stainless steel.

Cleaning

SCT 1000 & 2000
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
Accel PREVention Wipes Lingettes
OxiGenesis from ENVIROX

NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

Sales unit

pcs

Net weight, kg

45.9

Gross weight, kg

52.1

Weight per crate, kg

52.1

Crates per pallet

Qty per crate

Qty per pallet

Mounting
