    PLUS anglehandrail section 400 x 154 mm, incl. wall rosette

    Product number: RT340035

    EAN: 5708590146669

    Powder-laquered aluminium, diameter 33 mm.
    logo

    Pressalit A/S

    Pressalitvej 1

    DK-8680 Ry

    Danmark

    T +45 8788 8788

    E [email protected]

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens

    Products

    • Bathroom accessories
    • Accessible bathrooms
    • Shower and changing tables
    • Daycare changing tables
    • Height adjustable kitchens
    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

    Pressalit

    • Contact
    • About Pressalit
    • Privacy policy
    • Cookies

      Your search returned no results

      Please visit our contact page and get in touch with us.

      We are ready to help you with prices and purchasing options.

      Related products

      Description

      Product description

        • Highquality long lasting products
        • Countless combination options
        • Provides comfortable and firm support

      • PLUS angle hand rail tube, right, 90° angle with one wall rosette and connecting unit male joint.
        400 x 154 mm, diameter 33 mm.
        Requires other hand rail elements for installation.
        Please enquire for special hand rail solutions.
        Please note that RT360 PLUS hand rail wall mounting with strap must always be installed at all joints of tubes or every 1200 mm.
        Excl. mounting kit.
        See Technical datasheet (pdf) for information on fixings suitable for various wall types.

      • PLUS angle hand rail tube, right, 90° angle with one wall rosette and connecting unit male joint.
        400 x 154 mm, diameter 33 mm.
        Requires other hand rail elements for installation.
        Please enquire for special hand rail solutions.
        Please note that RT360 PLUS hand rail wall mounting with strap must always be installed at all joints of tubes or every 1200 mm.
        Materials: Powder-coated aluminium and plastics.
        Excl. mounting kit.
      Ergonomy
      The 33 mm diameter enables the rail to be held comfortably and firmly. The projection of 50 mm from the wall makes it easy to take hold of the rail.

      Product capacity
      Maximum load: With a span up to 1000 mm: 210 kg
      With a span up to 1300 mm: 150 kg.
      Warranty
      Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.

      Specifications

      Product codes

      • EAN

        5708590146669

      • VVS

        777569405

      • ETIM

        EC011306

      • NBS

        N13:436

      • UNSPSC

        42211608
      Product group
      Handrails

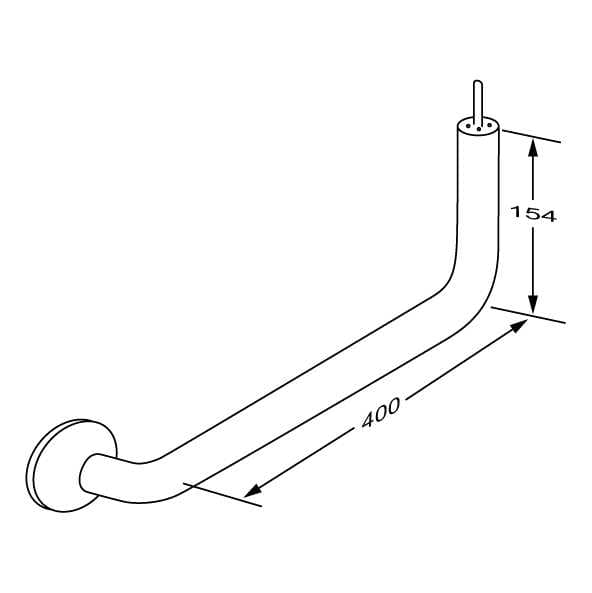

      Dimensioned drawing, mm
      Dimensioned drawing, mm
      Colour
      Red (RAL 3003)
      Materials
      Basic material: Aluminium

      Surface material: Polyester lacquer

      Cover cap: Cycoloy plastic

      Cleaning
      The product is to be cleaned with hot water or a mild soapy cleaning agent. Do not use chlorine based or corrosive cleaners as it may result in the surface being damaged.
      Sales unit
      pcs
      Net weight, kg
      0.8
      Gross weight, kg
      1
      Weight per crate, kg
      1
      Crates per pallet
      56
      Qty per crate
      1
      Qty per pallet
      56

      Downloads

      Mounting instructionsTechnical datasheetLoad bearing installation recommendation
