INDIVO lift for worktop 1001-1400 mm
Product number: RK1211202
EAN: 5708590378503
Previous versions: RK1011-92
Electrically height adjustable.
With two motor columns.
Max. load: 100 kg
With two motor columns.
Max. load: 100 kg
Description
- Product description
- Multiple adjustment methods - crank handle and powered
- Intuitive controls that can be operated independently
- Height adjustment range assists variety of different user requirements
- Pressalit INDIVO lifting units can be easily integrated into the private home, ensuring that the whole family can enjoy the full potential and use the height adjustable function. The lifting units can also help provide a flexible kitchen solution for e.g. care centers, school kitchens and school science labs, wherever there is a need for frequent height adjustments on kitchen worktops and cupboards.
- INDIVO lift for worktop, with two motors and control box.
Incl. cross brace and two brackets.
Height adjustable up to 300 mm with switch or wired remote control.
For worktop length 1001-1400 mm. Please indicate length and depth of worktop when ordering.
Excl. mounting kit.
- Intended use
- INDIVO lifts may be used with most commercially available kitchen worktops and kitchen cupboards, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years. - Features
- Lifts are height adjusted either via switches in the front edge or with a wired remote control.
- Ergonomy
- An electric height-adjustable kitchen worktop is ideal in all situations where various users - both seated and standing - use the same kitchen.
This is equally true in private homes as well as larger centres with common kitchen facilities such as group homes and care centres. - ProductAttributes.ProductIntendedUse
- INDIVO
- Product capacity
- Maximum load: 100 kg, this includes the weight of the worktop.
The load must be evenly distributed. - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Specifications
- Product codes
EAN
5708590378503
- Previous version
- RK1011-92
- Product group
- Lifts for kitchen worktop, wall-mounted

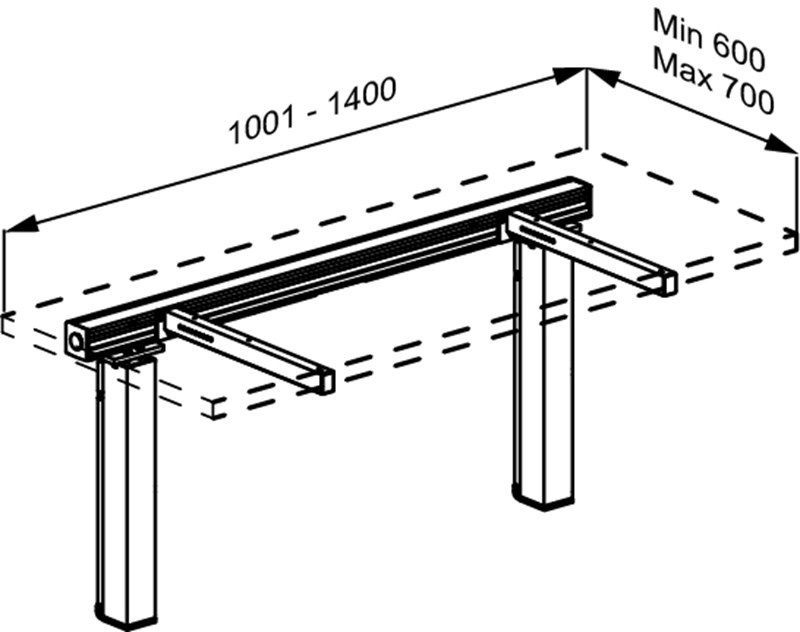

- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 300
- Speed, downwards, mm/s
- 20
- Speed upwards, mm/s
- 20
- Safe working load (SWL), kg
- 100
- Power consumption (maximum load), W
- 300
- Power consumption (standby), W
- 2
- Noise level, dB
- 45
- Actuator (motor)
- DL17 Deskline (Linak) 70N, IP20
- Control box
- CBD6S (Linak) IP20
- Wired remote control
- HB53 (Linak), IPX1
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- the RoHS Directive 2011/65/EU
- the EMC Directive 2014/30/EU
- the Low Voltage Directive 2014/35/EU
Furthermore, for the UK, in compliance with relevant requirements in:
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
- The Electromagnetic Compatibility Regulations 2016
- The Electrical Equipment (Safety) Regulations 2016 - WEEE
- Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
- Colour
- Grey (RAL 9006)
- Materials
- Lifting columns: Powder-coated steel
Cross brace: Aluminium
Brackets: Powder-coated steel - Cleaning
INDIVO lift for kitchen worktop
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 27.7
- Gross weight, kg
- 28.7
- Weight per crate, kg
- 28.7
- Crates per pallet
- 99999
- Qty per crate
- 1
- Qty per pallet
- 0
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
- Mounting
