INDIVO lift for wall cupboards 400-1200 mm
Product number: RK1220
EAN: 5708590378541
Previous versions: RK1020-92
Electrically height adjustable.
With one motor.
With one motor.
Description
- Product description
- Brings storage within reach for seated users especially
- Easy intuitive controls
- Mechanism and wires behind cupboards
- Pressalit INDIVO lifting units can be easily integrated into the private home, ensuring that the whole family can enjoy the full potential and use the height adjustable function. The lifting units can also help provide a flexible kitchen solution for e.g. care centers, school kitchens and school science labs, wherever there is a need for frequent height adjustments on kitchen worktops and cupboards.
- INDIVO lift for wall cupboards, with one motor and control box.
Height adjustable 430 mm with switches or wired remote control. When height adjusting downward, the lift will also move 180 mm towards the user.

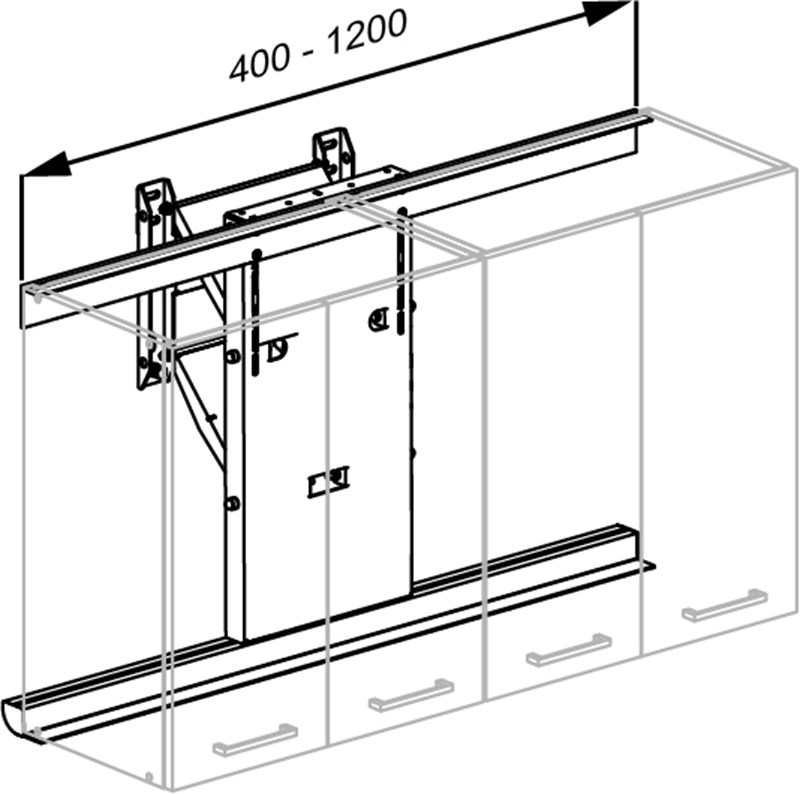

For wall cupboards width 400-1200 mm.
Please note: Maximum height of wall cupboards is 725 mm. If a wall cupboard is to be higher than this, an extension RK1065-RK1066 must be added.
Please indicate height, width and depth of wall cupboards when ordering.
Excl. mounting kit.
- Intended use
- INDIVO lifts may be used with most commercially available kitchen worktops and kitchen cupboards, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years. - Features
- Lift heights for wall cupboards are adjusted via switches in the front worktop edge.
Operating switches can be placed wherever you want along the front edge.
The switches are colour-coded - aluminium to operate worktops, and red to operate wall cupboards.
The design of the lifts ensures that the lift motors are as discreet as possible, regardless of the cupboard position.
When the wall cupboards are lowered 430 mm to their lowest position, they are also extended 180 mm towards the user. - Ergonomy
- Wall cupboards are moved diagonally, that is both vertically and towards the user. This makes it easy for seated users and children to see and access covered contents.
Height-adjustable wall cupboards provide extra storage options in kitchens where cupboards cannot be installed under worktops out of consideration for seated users. - ProductAttributes.ProductIntendedUse
- INDIVO
- Product capacity
- Max. load (including cupboards):
1 lift: 110 kg - Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Specifications
- Product codes
EAN
5708590378541
- Previous version
- RK1020-92
- Product group
- Lifts for kitchen wall cupboards
- Dimensioned drawing, mm
- Adjustability
- Height adjustable
- Adjustment height, mm
- 430
- Speed, downwards, mm/s
- 18
- Speed upwards, mm/s
- 18
- Power consumption (maximum load), W
- 187
- Power consumption (standby), W
- 1.5
- Noise level, dB
- 48
- Actuator (motor)
- LA31 Deskline (Linak), 1500N, IPX1
- Control box
- CBD4 (Linak) IP22
- Wired remote control
- HB53 (Linak), IPX1
- Declaration of conformity
- This product is produced in compliance with all relevant requirements of:
- the RoHS Directive 2011/65/EU
- the EMC Directive 2014/30/EU
- the Low Voltage Directive 2014/35/EU
Furthermore, for the UK, in compliance with relevant requirements in:
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
- The Electromagnetic Compatibility Regulations 2016
- The Electrical Equipment (Safety) Regulations 2016 - WEEE
- Please enquire of your local Pressalit subsidiary or distributor (in countries where there is no subsidiary) that will arrange for recycling of electronic waste in accordance with the WEEE directive.
- Materials
- Material:
Lift motor: Steel
Cross braces: Aluminium
Switches: ABS plastic - Cleaning
INDIVO lift for kitchenwall cupboard
The product is to be cleaned with hot water or a mild soapy cleaning agent.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.
DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%
NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro
The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth wrung out in clear water.- Sales unit
- pcs
- Net weight, kg
- 34.1
- Gross weight, kg
- 35.9
- Weight per crate, kg
- 35.9
- Crates per pallet
- 99999
- Qty per crate
- 1
- Qty per pallet
- 0
Mounting
- Mounting
- Excl. mounting kit. See Technical datasheet (pdf) for information on mounting kits suitable for various wall types.
