Flexible feed and waste system 700/700 mm
Product number: R2065
EAN: 5708590116907
For adjustable wash basin bracket.
Feed pipes: 700 mm.
Waste pipe: 700 mm.
Feed pipes: 700 mm.
Waste pipe: 700 mm.
Description
- Product description
- Provides flexibilty of basins
- Adaptable for different arrangements.
- The flexible feed and waste systems are needed to ensure the flow of water to and from the height adjustable wash basin brackets.
- Flexible feed/waste system. For export markets.
Feed pipes: 700 mm, waste pipe: 700 mm.
Feed pipe, metal braid, with 3/8" coupling and 10 mm copper pipe.
Flexible waste pipe, dia. 32 mm.
- Features
- Pressalit supply a kit of flexible feed pipes for hot and cold water along with a flexible waste hose. The kit starts where the feed pipes attach at the isolating valves (not included) and ends where the waste kit meets the existing waste or trap in/at the wall. It assumes a connector that will fit Pressalit’s Ø32 mm waste elbow. Adapters for larger connectors, e.g. Ø40 mm, must be ordered separately (not UK).
- Ergonomy
- To maximize product flexibility, it is important that the plumbing installation are correctly positioned and do not obstruct movement. The waste hose can be shortened on site to fit the installation.
- Warranty
- Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
Specifications
- Product codes
EAN
5708590116907VVS
747477510ETIM
EC011597NRF
6132525RSK
7972613
- Product group
- Flexible feed and waste systems

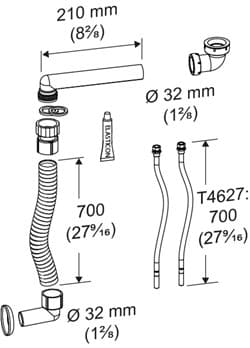

- Dimensioned drawing, mm
- Materials
- The feed pipes are made from SPX plastic, braided with stainless steel. The connecting nuts are 3/8” and made from brass with 10 mm copper pipe. The waste pipe is flexible, corrugated white PVC with a diameter of 32 mm. We do not recommend flushing the waste hose with formaldehyde. The elbow with removable connector is made from PP (polypropylene) with a seal of TPE (thermoplastic elastomer). Maximum temperatures of use are 80°C (continuous use) and 90°C (temporary use). PP is very resistant to water, damp and most organic solvents. The seal is made from EPDM – Temperature of use from -50°C - +120°C/150°C EPDM is particularly resistant to ozone and weather. Good resistance to heat and cold and to most chemicals – but poor resistance to petroleum products and solvents.
- Cleaning
Flexible feed and waste systems
When cleaning the wash basin, it is recommended that one flush the waste hose through with 50-60 degrees hot water in order to prevent build-up of soap residues inside the hose. Ensure that the hose is stretched out during this flushing.- Sales unit
- pcs
- Net weight, kg
- 0.6
- Gross weight, kg
- 0.8
- Weight per crate, kg
- 0.8
- Crates per pallet
- 56
- Qty per crate
- 1
- Qty per pallet
- 56
Mounting
- Bottom mounted
